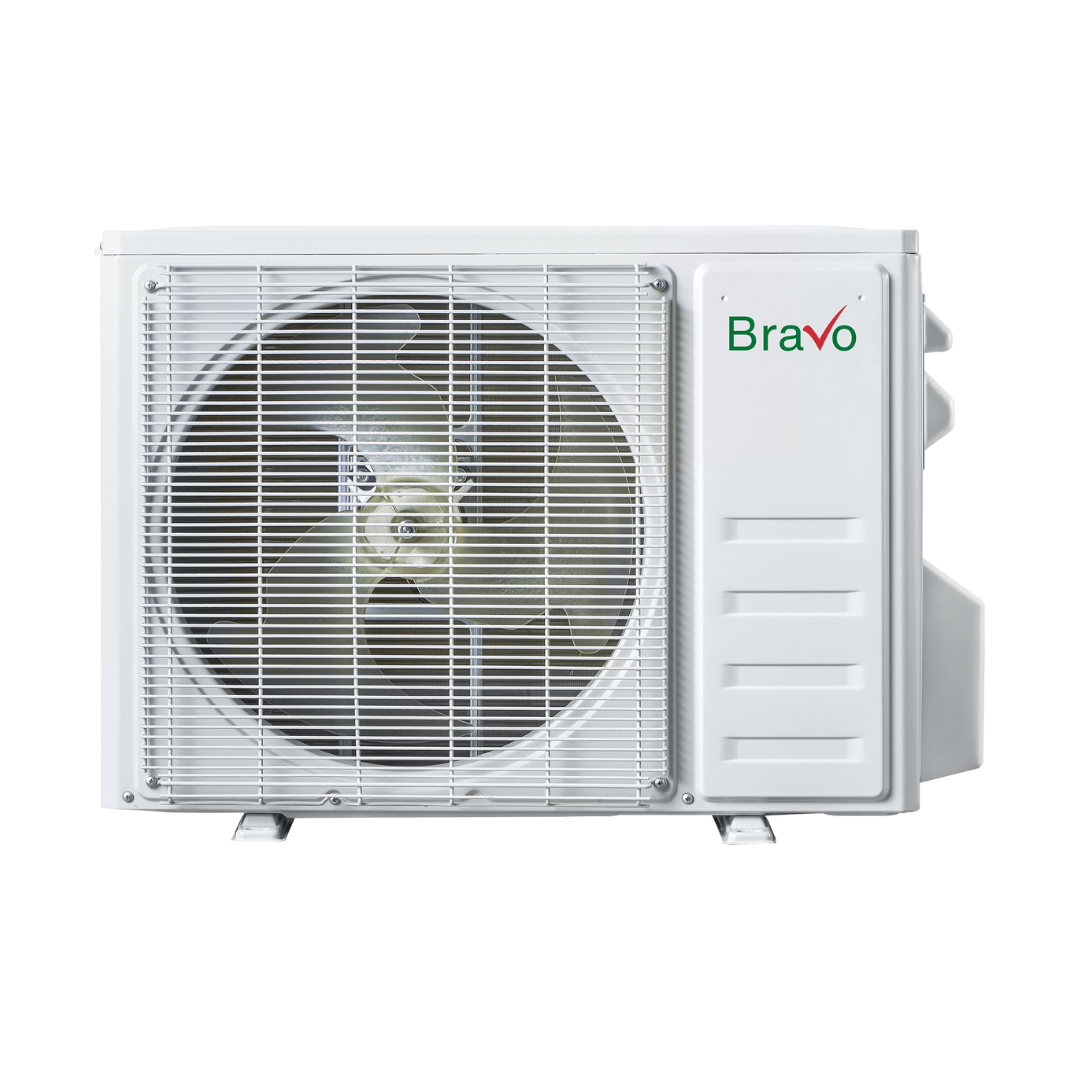

Bravo BRV-SD24HI-230VO Outdoor Unit 24000 Btu/h Single Zone Heat Pump Inverter R32 208-230V

Product Description

The Bravo BRV-SD24HI-230VO is the outdoor condensing unit for a 24,000 BTU/h single-zone ducted heat pump system. It operates on 208-230V single-phase, 60 Hz power and uses R32 refrigerant for both cooling and heating. The unit is part of the Bravo side-discharge multi-position air handler series and is rated at 17.7 SEER2 with a 10.4 EER and 8.5 HSPF, making it a capable performer for mid-sized residential applications. Licensed HVAC technicians install and commission this unit as the outdoor half of the split system, connecting it to the BRV-MP24AHUW-230VI indoor air handler via refrigerant line sets.

This outdoor unit is suited for residential single-zone installations where a ducted air handler configuration is required. The side-discharge design allows flexible outdoor placement and is compatible with rooftop or ground-level mounting scenarios. The system is engineered to deliver reliable heating performance down to 4 degrees F ambient, making it appropriate for cold-climate residential applications that require year-round operation without supplemental heat in most conditions.

Key Features

• 24,000 BTU/h cooling and heating capacity for single-zone residential use
• 17.7 SEER2 efficiency rating with 10.4 EER and 8.5 HSPF
• R32 refrigerant with lower global warming potential compared to R410A
• 208-230V single-phase, 60 Hz operation
• Inverter-driven compressor for variable-speed operation and part-load efficiency
• Rated for heating operation down to 4 degrees F ambient
• Side-discharge airflow configuration for flexible installation placement

Compatibility

The BRV-SD24HI-230VO is designed to pair with the BRV-MP24AHUW-230VI multi-position indoor air handler as a matched single-zone ducted heat pump system. It is part of the Bravo side-discharge inverter outdoor unit series, which also includes the BRV-SD18HI-230VO, BRV-SD36HI-230VO, BRV-SD48HI-230VO, and BRV-SD60HI-230VO models.

Installation Notes

Installation must be performed by an EPA Section 608 certified HVAC technician due to the R32 refrigerant charge, which is classified as mildly flammable (A2L). Power must be disconnected at the breaker before any wiring or service work. Follow local electrical codes and the manufacturer installation manual for line set sizing, evacuation procedure, and refrigerant handling requirements. Do not operate the unit without completing a full system evacuation and verifying refrigerant charge per the installation manual.

Technical Specifications

• Capacity: 24,000 BTU/h
• System Type: Single Zone Ducted Heat Pump
• SEER2: 17.7
• EER: 10.4
• HSPF: 8.5
• Voltage: 208-230V, 1-Phase, 60 Hz
• Refrigerant: R32
• Minimum Ambient Heating Temperature: 4 degrees F
• Unit Role: Outdoor Condensing Unit
• Airflow Configuration: Side Discharge

Standard Information

• Brand: Bravo
• Manufacturer Part Number: BRV-SD24HI-230VO
