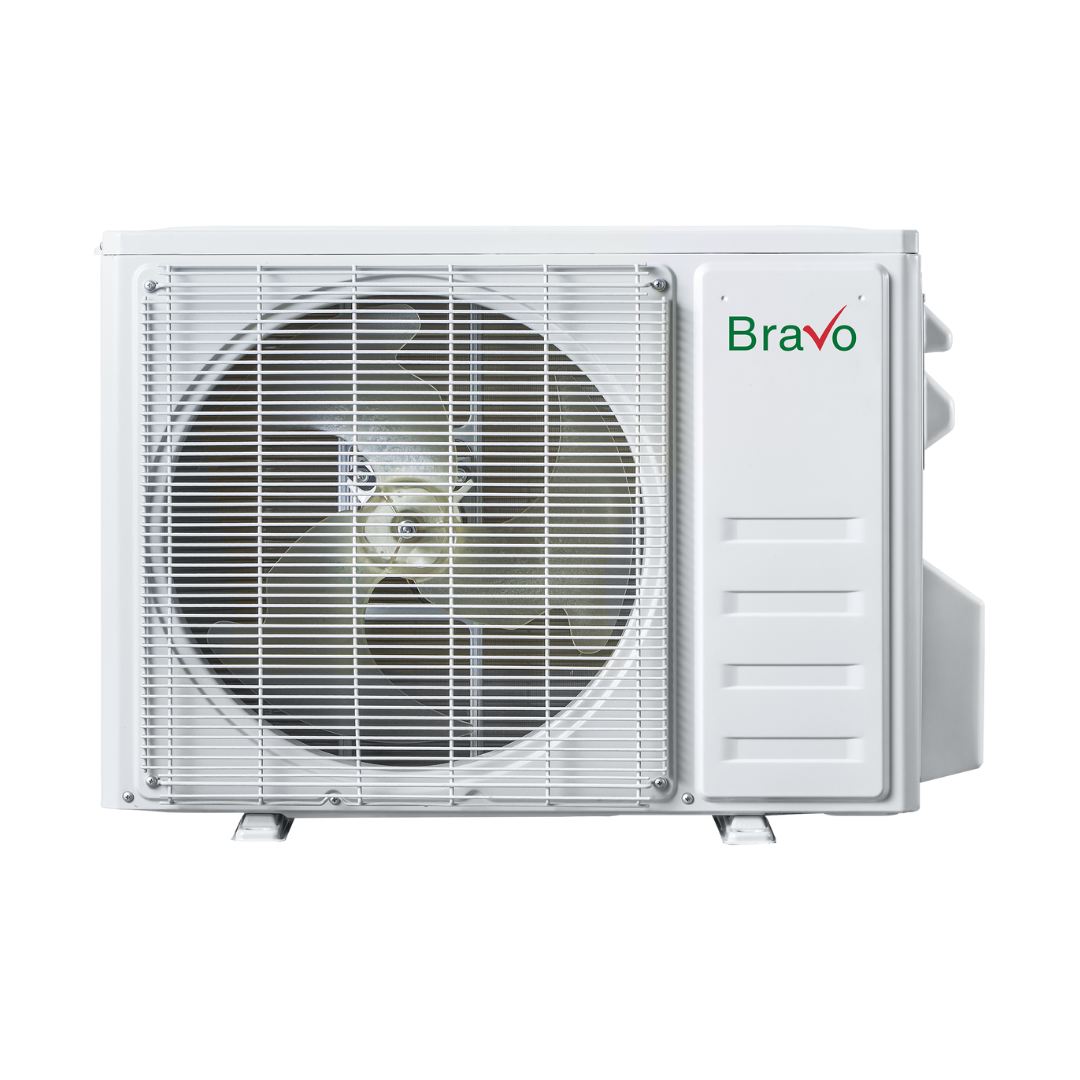

Bravo BRV-P24LS-230VO Outdoor Condenser Unit 24000 Btu/h 208/230V Single-zone Mini Split Heat Pump

Product Description

The Bravo BRV-P24LS-230VO is a 24,000 BTU/h single-zone outdoor condenser unit designed for ductless mini split heat pump systems. Operating on 208/230V single-phase 60Hz power, it delivers both cooling and heating capacity suited for medium to large spaces such as living rooms, open-plan areas, or large bedrooms. The unit achieves a 17.0 SEER2 efficiency rating and an EER2 of 8.85, meeting current federal minimum efficiency standards. It pairs with a compatible Bravo 24K indoor wall-mount air handler to complete a single-zone system. Installation and service are handled by licensed HVAC technicians.

This outdoor unit is intended for single-zone residential or light-commercial ductless installations where 208/230V single-phase power is available. It is sized for spaces typically requiring up to 24,000 BTU/h of cooling or heating output. The system operates on R32 refrigerant and is designed for wall-mounted indoor unit configurations. Minimum circuit ampacity is 14 amps with a maximum fuse rating of 20 amps, making electrical rough-in straightforward for standard residential panels.

Key Features

• 24,000 BTU/h cooling and heating capacity for medium to large spaces
• 17.0 SEER2 efficiency rating meets current federal minimum efficiency requirements
• EER2 of 8.85 for strong part-load efficiency performance
• Operates on 208/230V single-phase 60Hz power with a 14-amp minimum circuit ampacity
• R32 refrigerant — lower global warming potential than R410A
• Compatible with Bravo smart app control via paired indoor unit

Compatibility

Designed as an OEM-style outdoor condenser for single-zone Bravo 24K BTU ductless mini split systems operating on 208/230V, 1-phase, 60Hz power. Pair with the corresponding Bravo 24K indoor wall-mount air handler for a complete system. Consult Bravo system documentation to confirm indoor unit compatibility before installation.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local mechanical codes and the manufacturer's installation manual. Disconnect and lock out all electrical power before servicing the unit. Refrigerant handling requires EPA Section 608 certification. Ensure the outdoor pad or bracket mount is level and provides adequate clearance for airflow on all sides per the installation manual.

Technical Specifications

• Cooling Capacity: 22,000 BTU/h
• Heating Capacity: 22,000 BTU/h
• SEER2: 17.0
• EER2: 8.85
• HSPF2-4: 8.0
• COP2: 3.0
• Power Supply: 208/230V, 1-Phase, 60Hz
• Minimum Circuit Ampacity: 14 amps
• Maximum Fuse: 20 amps
• Refrigerant: R32
• System Type: Single-Zone Ductless Mini Split Heat Pump

Standard Information

• Brand: Bravo
• Manufacturer Part Number: BRV-P24LS-230VO
