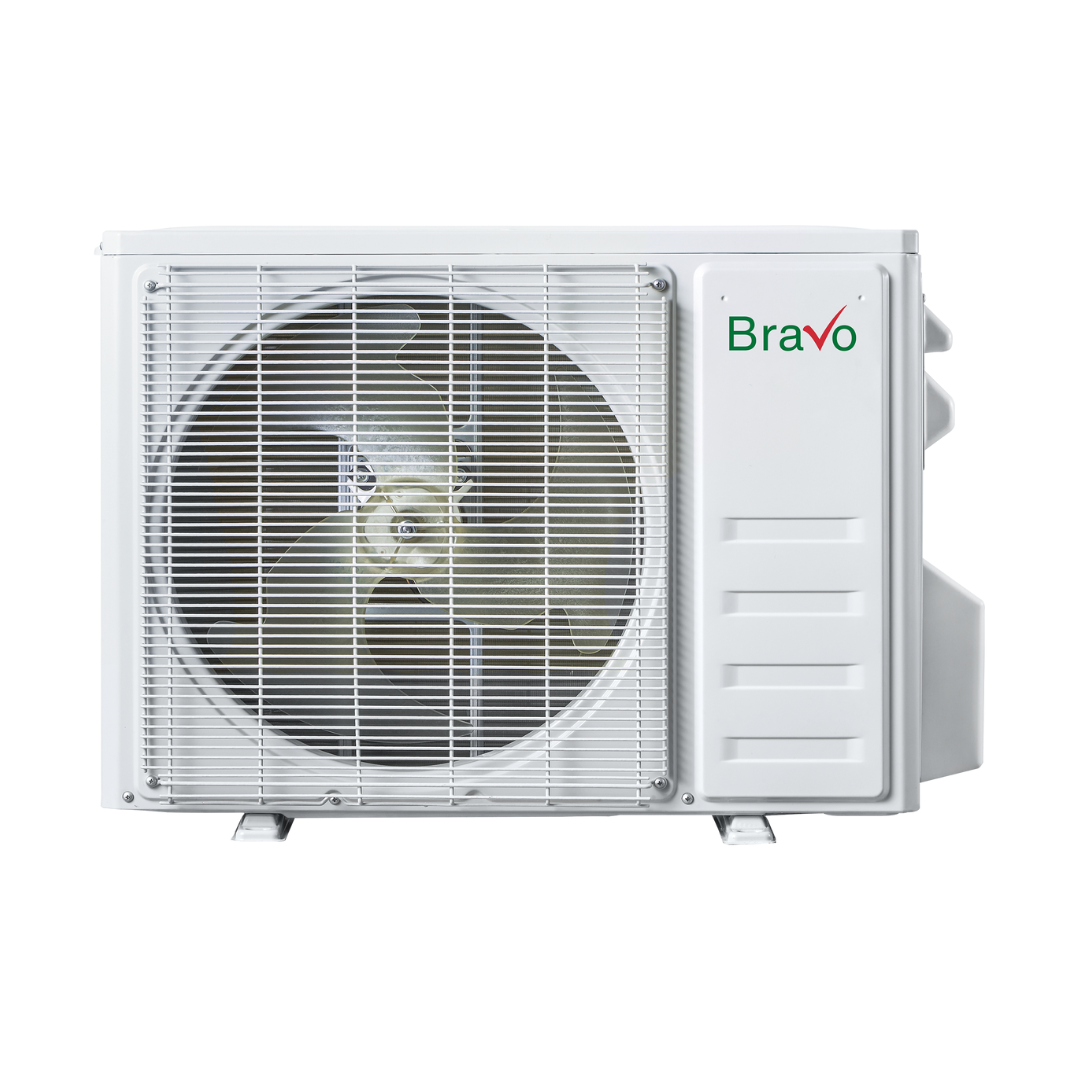

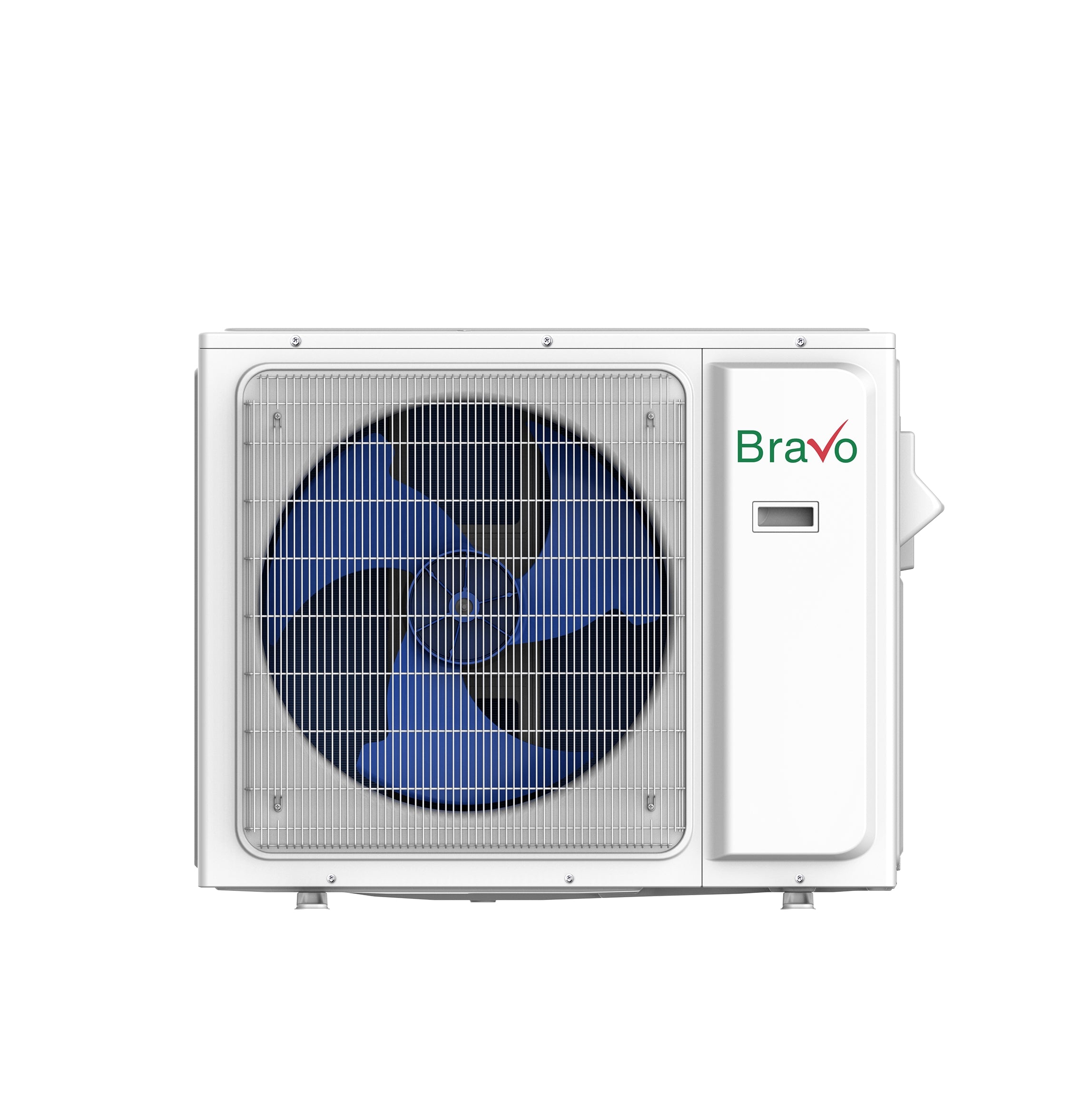

BRAVO ROMA BRV-P18LS-230VO Single-Zone Outdoor Heat Pump 18,000 BTU

Product Description

The BRAVO ROMA BRV-P18LS-230VO is a single-zone outdoor heat pump unit engineered for residential and light commercial ductless mini-split applications. This inverter-driven system delivers 18,000 BTU/h cooling capacity with R32 refrigerant, offering enhanced energy efficiency and reduced environmental impact compared to legacy refrigerants. The unit pairs with the BRV-R18W-230VI indoor wall-mount evaporator to form a complete climate control solution for spaces requiring 1.5 tons of conditioning capacity.

Designed for year-round operation, this heat pump provides both cooling and heating functionality with outdoor operating ranges from 5°F to 122°F in cooling mode and -4°F to 86°F in heating mode. The AHRI-certified performance ensures verified capacity and efficiency ratings for confident specification in professional installations.

Key Features

• Inverter-driven compressor technology for precise capacity modulation and reduced energy consumption
• R32 refrigerant with lower global warming potential than R410A alternatives
• SEER2 rating of 17.0 and EER2 of 9.5 for compliant energy performance
• Smart app compatibility for remote system monitoring and control
• Quiet outdoor operation at 57 dB(A) sound level
• Compact footprint suitable for ground-mount or wall-bracket installation

Compatibility

This outdoor unit is specifically designed for use with the BRAVO ROMA BRV-R18W-230VI indoor wall-mount evaporator. The BRV-P18LS-230VO is part of the BRAVO ROMA single-zone product family and is not interchangeable with multi-zone outdoor units. System requires matched indoor coil and control communication wiring for proper operation.

Installation Notes

Installation must be performed by a licensed HVAC technician to validate the 3-year compressor and 3-year parts limited warranties. Unit requires 208-230V/60Hz single-phase power supply with minimum circuit ampacity of 13A and maximum fuse rating of 20A. Refrigerant piping connections are 1/4" liquid line and 3/8" suction line. Allow adequate clearance for airflow and service access per manufacturer guidelines.

Technical Specifications

• Cooling Capacity: 17,000 BTU/h (AHRI-rated at 95°F ambient)
• Heating Capacity: 17,000 BTU/h rated
• SEER2: 17.0 / EER2: 9.5
• HSPF2-4: 10.5 / COP2: 3.5
• Power Supply: 208-230V, 1Ph, 60Hz
• Minimum Circuit Ampacity: 13A
• Maximum Fuse: 20A
• Refrigerant: R32
• Outdoor Air Flow: 1,704 CFM
• Sound Level: 57 dB(A)
• Operating Range (Cooling): 5°F to 122°F outdoor
• Operating Range (Heating): -4°F to 86°F outdoor

Standard Information

• Brand: BRAVO ROMA
• MPN: BRV-P18LS-230VO
• Indoor Unit Pairing: BRV-R18W-230VI
• Country of Origin: Not specified in available documentation
