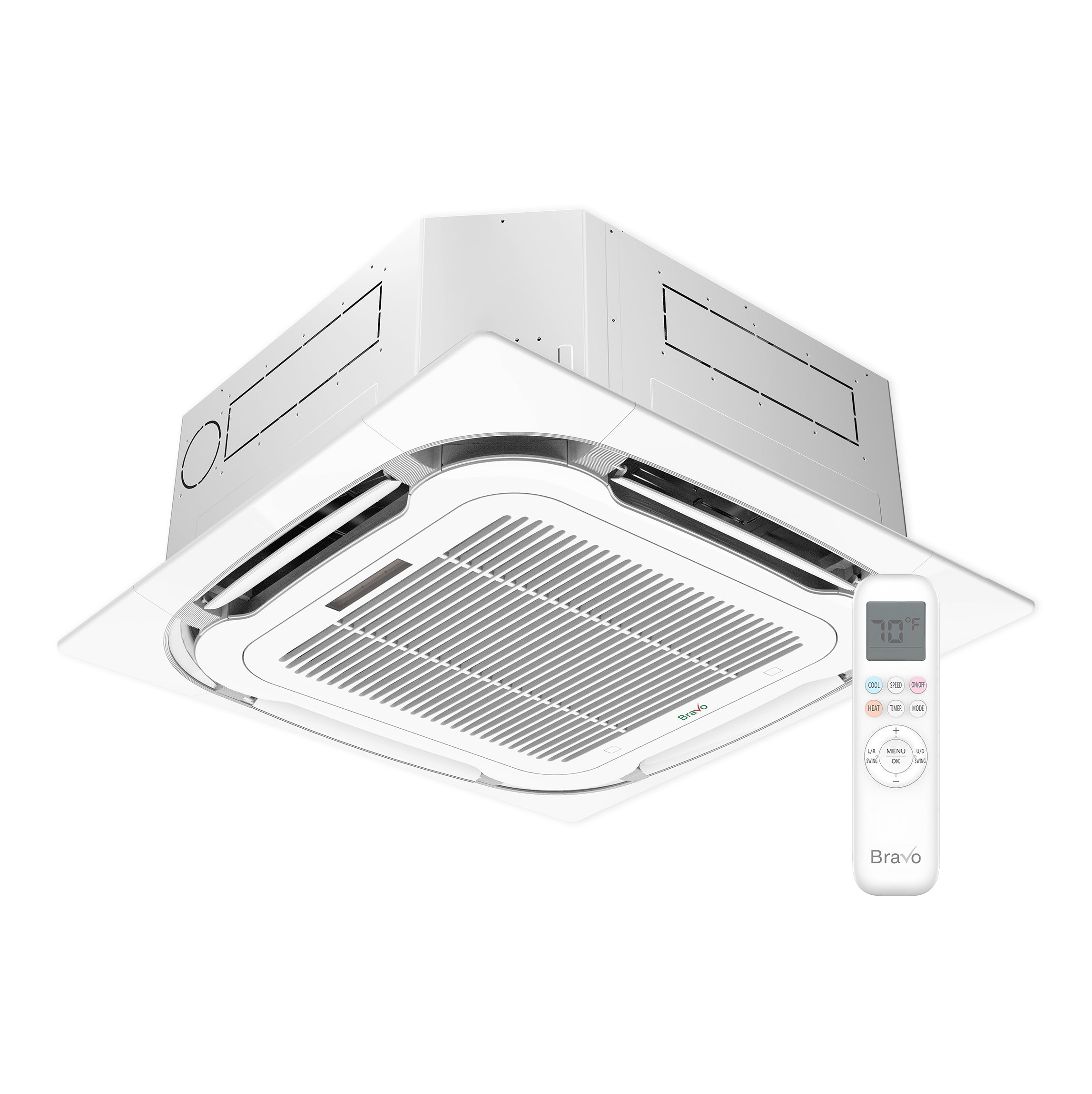

BRAVO ROMA BRV-P18CT-230VI Ceiling Cassette Mini Split 18K BTU

Product Description

The BRAVO ROMA BRV-P18CT-230VI is a ceiling cassette mini split air conditioner and heat pump designed for residential and light commercial applications. This 18,000 BTU/h system delivers efficient year-round climate control with inverter-driven compressor technology for optimized energy consumption and precise temperature management.

Ideal for spaces where wall-mounted units are impractical, the cassette configuration recesses into standard ceiling grids for a clean, unobtrusive appearance. The 360° 4-way airflow distribution ensures even temperature coverage throughout the room, eliminating hot and cold spots common with conventional HVAC systems. Compatible with 208-230V single-phase electrical service, this unit suits retrofit installations and new construction projects requiring discreet, space-saving climate solutions.

Key Features

• Inverter technology with variable-speed compressor operation
• 360° 4-way airflow distribution for uniform room conditioning
• Multiple fan speeds with auto-swing louvers for customized comfort
• Super Mode, Eco Mode, and Comfortable Sleep Mode operation profiles
• Anti-Mildew self-cleaning function maintains indoor air quality
• WiFi-enabled SMART APP control plus included wireless remote
• 24-hour programmable timer for automated energy management

Compatibility

This indoor ceiling cassette unit requires pairing with a compatible BRAVO ROMA outdoor condensing unit for complete system operation. The BRV-P18CT-230VI is designed for integration within BRAVO ROMA single-zone or multi-zone configurations utilizing R32 refrigerant. Communication wiring per manufacturer specification (typically 18-4 AWG) connects the indoor and outdoor units. Verify outdoor unit compatibility with BRAVO ROMA technical documentation before installation.

Installation Notes

Professional installation by a licensed HVAC technician is required for warranty validation. Ceiling cassette installation demands adequate plenum space above the finished ceiling line. Refrigerant piping connections utilize 1/4" liquid and 3/8" gas lines with maximum 50-foot line length and 33-foot vertical separation between indoor and outdoor units. Drainage requires 5/8" condensate line with proper pitch to prevent water accumulation. Minimum circuit ampacity and overcurrent protection must comply with NEC standards and local codes.

Technical Specifications

• Power Supply: 208-230V, 1Ph, 60Hz
• Cooling Capacity: 18,000 BTU/h
• Heating Capacity: 18,000 BTU/h
• Refrigerant Type: R32
• Refrigerant Piping: 1/4" liquid / 3/8" gas
• Max. Pipe Length: 50 ft
• Max. Level Difference: 33 ft
• Drainage Pipe: 5/8" diameter
• Communication Wiring: 18-4 AWG
• Indoor Airflow: Multiple speeds (Turbo/Hi/Mi/Lo)
• Operating Temperature - Cooling: 54°F to 122°F ambient
• Operating Temperature - Heating: 5°F to 86°F ambient

Standard Information

• Brand: BRAVO ROMA
• MPN: BRV-P18CT-230VI
• Product Type: Ceiling Cassette Mini Split Indoor Unit
• Country of Origin: Not specified in available documentation
