Bravo BRV-P12LS-230VO Outdoor Condenser Unit 12000 Btu/h Single Zone Mini Split 208-230V

Product Description

The Bravo BRV-P12LS-230VO is a single-zone ductless mini split outdoor condenser unit rated at approximately 12,000 BTU/h cooling capacity. Operating on a 208-230V, 1-phase, 60Hz power supply, it pairs with a compatible Bravo wall-mounted indoor air handler to form a complete heating and cooling system. The unit uses R32 refrigerant and a rotary compressor to deliver efficient performance in residential single-room or zone applications. Minimum circuit ampacity is 11 amps with a maximum fuse rating of 15 amps. Licensed HVAC technicians handle installation and commissioning of this system.

This outdoor unit is designed for single-zone residential ductless mini split systems. It is suitable for applications where a wall-mounted indoor head is installed in a bedroom, living room, office, or similar space requiring independent climate control. The unit pairs with the Bravo BRV-R12W-230VI indoor wall-mounted air handler as part of the BRV-R12LS-230VO system configuration. It is sized for spaces that fall within the 12,000 BTU/h cooling range and supports both cooling and heating operation through heat pump function.

Key Features

• 12,000 BTU/h cooling capacity with heat pump heating capability
• R32 refrigerant system with capillary tube throttle
• GMCC rotary compressor for reliable, quiet operation
• Outdoor fan motor rated at 33 watts output with 1,000 RPM speed and up to 1,955 CFM airflow
• Maximum outdoor noise level of 55 dB(A) for low-disturbance installation
• 208-230V, 1-phase, 60Hz power input with 11-amp minimum circuit ampacity

Compatibility

Paired with the Bravo BRV-R12W-230VI wall-mounted indoor air handler as part of the BRV-R12LS-230VO single-zone mini split system. Designed as an OEM outdoor condenser for Bravo single-zone ductless mini split configurations at the 12,000 BTU/h capacity level.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local mechanical codes and manufacturer guidelines. Shut off all electrical power to the circuit before making any electrical connections or handling the refrigerant lines. R32 is a mildly flammable refrigerant classified as A2L — technicians must follow applicable safety standards for handling, recovery, and charging. Ensure the outdoor unit is mounted on a level, structurally sound pad or bracket with adequate clearance on all sides for airflow and service access.

Technical Specifications

• Cooling Capacity: 12,000 BTU/h (rated approximately 10,458 BTU/h per spec sheet)
• Power Supply: 208-230V, 1-phase, 60Hz
• Input Power: 778 watts
• Minimum Circuit Ampacity: 11 amps
• Maximum Fuse: 15 amps
• Refrigerant Type: R32
• Refrigerant Oil: VG74, 9.5 oz
• Compressor Type: Rotary (GMCC)
• Throttle Type: Capillary tube
• Outdoor Fan Motor Output: 33 watts
• Outdoor Fan Speed: 1,000 RPM
• Outdoor Airflow (Max): 1,955 CFM
• Outdoor Noise Level (Max): 55 dB(A)

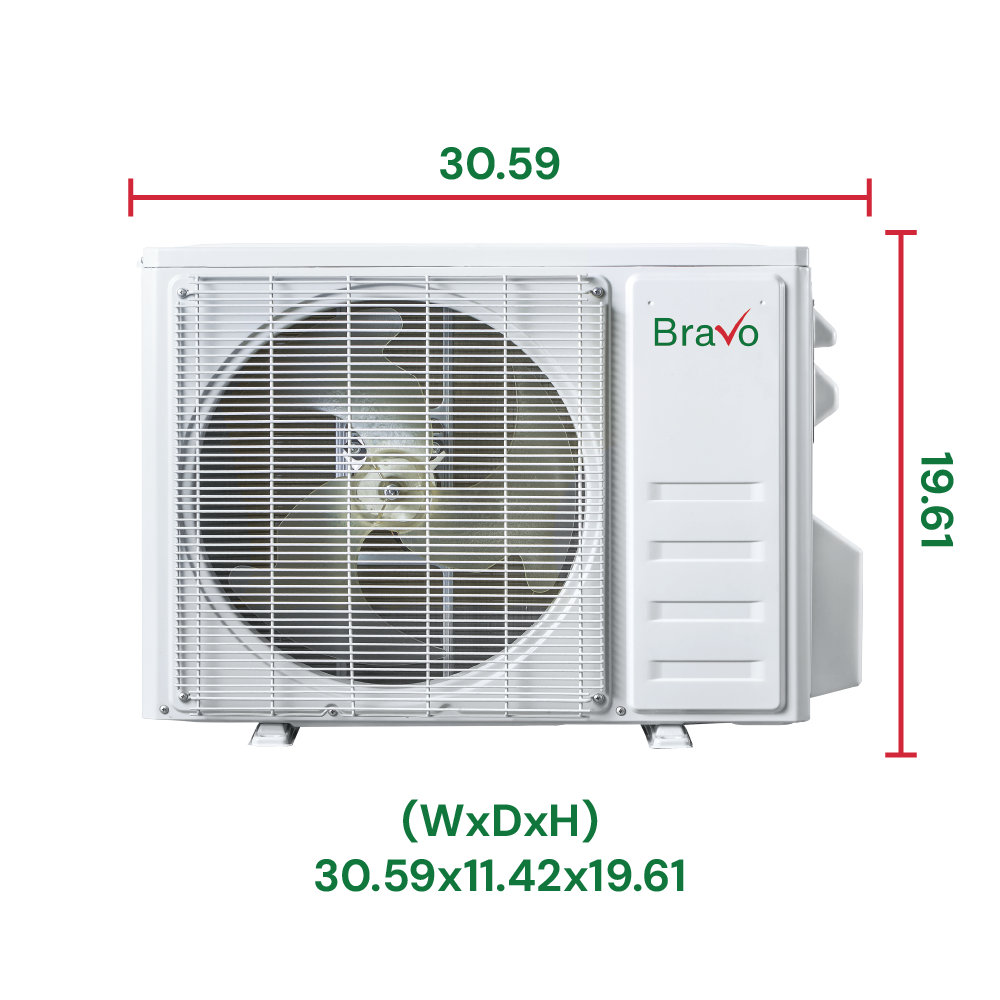

• Unit Dimensions (W x D x H): 30.98 x 11.41 x 19.60 inches
• Packing Dimensions (W x D x H): 32.99 x 13.3 x 21.25 inches
• Net Weight: 50.7 pounds
• Gross Weight: 60.6 pounds

Standard Information

• Brand: Bravo
• Manufacturer Part Number: BRV-P12LS-230VO
