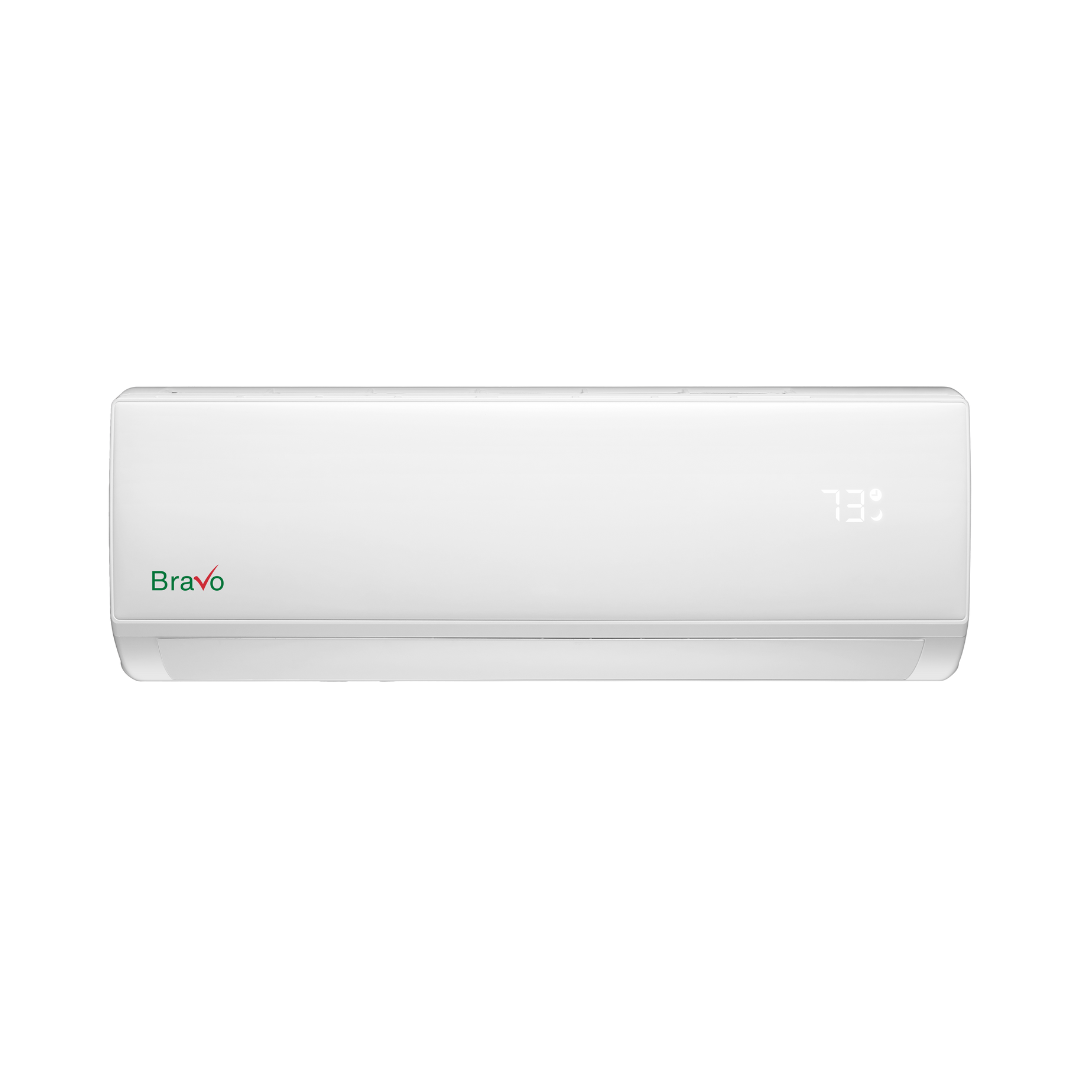

BRAVO ROMA BRV-P09DT230VI Mini Split Heat Pump 9K BTU

Product Description

The BRAVO ROMA BRV-P09DT230VI is a single-zone mini split heat pump system engineered for residential and light commercial climate control. This 9,000 BTU/h capacity unit delivers efficient cooling and heating performance using environmentally conscious R32 refrigerant with lower global warming potential than legacy alternatives. The system operates on standard 208-230V single-phase power, making it suitable for typical North American electrical installations.

Ideal for single-room applications, additions, converted spaces, or supplemental climate control where ductwork extension is impractical. The compact indoor unit profile allows flexible mounting options while maintaining discrete aesthetic integration. Built-in WiFi connectivity and smart app control enable remote operation and scheduling for optimized energy management.

Key Features

• Inverter-driven compressor technology for variable-speed efficiency and reduced energy consumption
• R32 refrigerant with lower GWP (Global Warming Potential) and recyclable composition
• Built-in WiFi function with SMART App compatibility for remote control and monitoring
• Multiple operating modes: Cool, Heat, Dry, Fan, Auto, Turbo, Quiet, and Sleep modes
• X-FAN function for enhanced air circulation and moisture removal
• Timer ON/OFF programming with child lock safety feature
• Follow Me temperature sensing via remote control for localized comfort control
• LED display with swing control for adjustable airflow direction

Compatibility

This single-zone indoor unit is designed for paired operation with BRAVO ROMA outdoor condensing units. System requires matching capacity outdoor unit for proper refrigerant circuit operation. Compatible with BRAVO ROMA series remote controls and SMART App ecosystem. Verify outdoor unit compatibility with BRAVO technical support at (786) 953-6706 prior to installation.

Installation Notes

Professional installation by licensed HVAC technician required. Unit operates on 208-230V, 1Ph, 60Hz power with voltage range of 165-264V. Refrigerant piping connections: 1/4" liquid line and 3/8" gas line. Maximum pipe length and elevation differential must comply with BRAVO installation manual specifications. Communication wiring requires AWG 18-4 conductor. Indoor unit powered from outdoor unit. Maintain minimum clearances per installation guidelines for proper airflow and service access.

Technical Specifications

• Capacity: 9,000 BTU/h
• Power Source: 208-230V, 1Ph, 60Hz
• Voltage Range: 165-264V
• Refrigerant Type: R32
• Refrigerant Piping: 1/4" liquid / 3/8" gas
• System Type: Single-zone mini split heat pump
• Indoor Unit Dimensions (W×D×H): 22.44 × 22.44 × 10.24 in
• Indoor Unit Net/Gross Weight: 30.9 / 37.5 lbs
• Packing Dimensions (W×D×H): 28.35 × 25.59 × 11.42 in
• Dehumidification: 1.48 Pints/Hour
• Drainage Water Pipe Diameter: 1"
• Communication Wiring: AWG 18-4
• Controller: Wireless remote with WiFi capability

Standard Information

• Brand: BRAVO ROMA
• Manufacturer Part Number: BRV-P09DT230VI
• Product Line: BRAVO ROMA Single-Zone Mini Split with R32 Refrigerant
• Country of Origin: Not specified in manufacturer documentation
• Technical Support: (786) 953-6706 (English, Spanish, Mandarin, Russian, Ukrainian)
