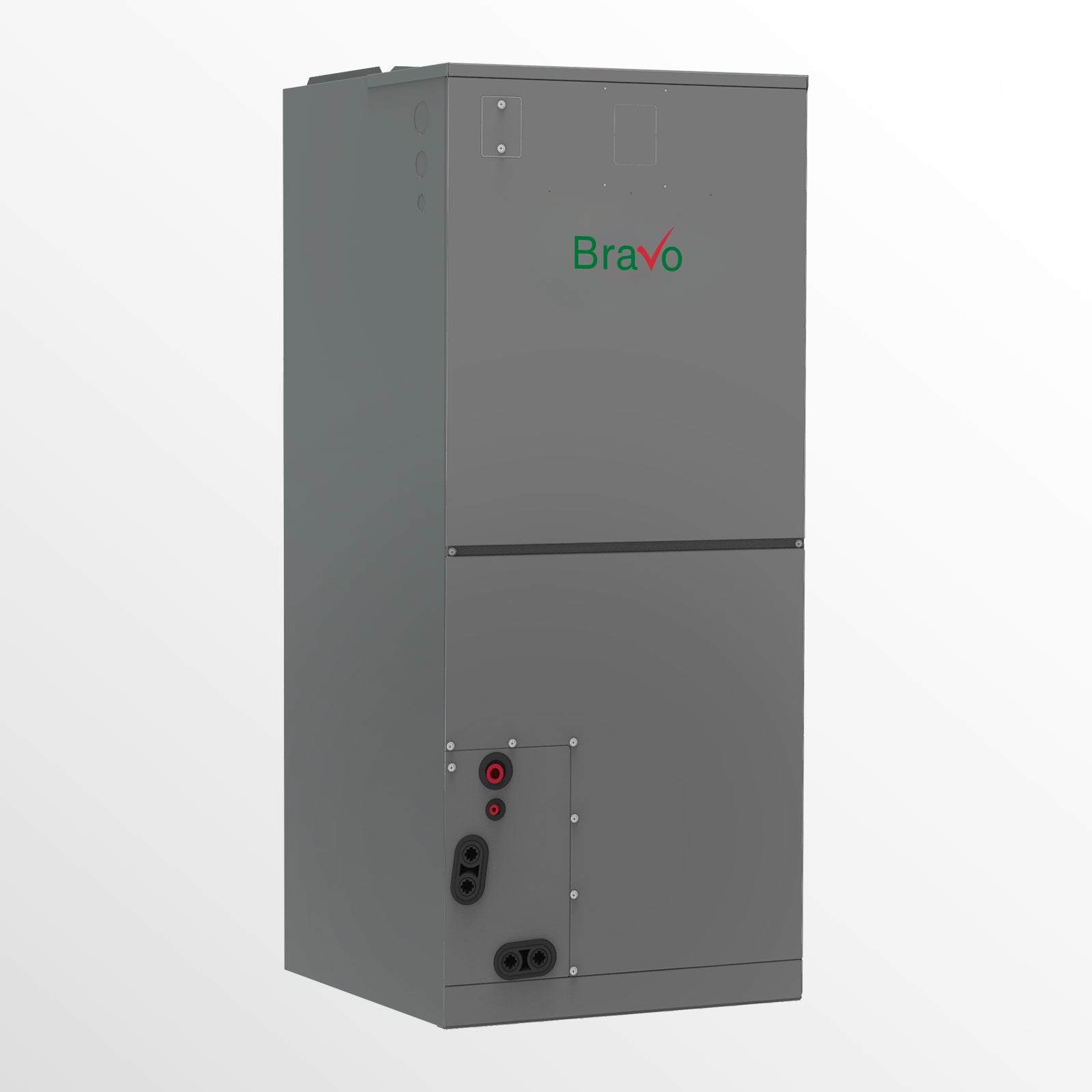

Bravo BRV-MP60AHUW-230VI Multi-position Air Handler 60000 Btu 230V R32 Single Zone Heat Pump Indoor Unit

Product Description

The Bravo BRV-MP60AHUW-230VI is a 60,000 BTU multi-position indoor air handler designed for single-zone ducted heat pump systems operating on 208-230V single-phase power. It pairs with the BRV-SD60HI-230VO outdoor unit to form a complete inverter-driven heat pump system using R32 refrigerant. The unit features a high-efficiency A-coil for effective heat transfer and supports four installation positions, giving installers the layout flexibility needed in residential and light commercial builds. It is rated at 15.8 SEER2 and 8.5 HSPF2, making it compliant with current federal minimum efficiency standards for split system heat pumps.

This air handler is suited for larger residential applications and light commercial spaces where a central ducted solution is required. It is designed to work within a single-zone heat pump configuration, delivering both heating and cooling through existing or new ductwork. The unit is compatible with standard 24-volt thermostats and is engineered for integration with third-party controls. Typical applications include whole-home ducted installs in new construction or retrofit projects where multi-position flexibility simplifies equipment placement in tight mechanical rooms or utility spaces.

Key Features

• 60,000 BTU capacity suitable for larger residential and light commercial spaces
• Four-position installation support for upflow, downflow, and horizontal configurations
• R32 refrigerant with lower global warming potential compared to R410A
• 15.8 SEER2 and 8.5 HSPF2 efficiency ratings meet current federal standards
• Compatible with standard 24-volt thermostats and third-party control systems

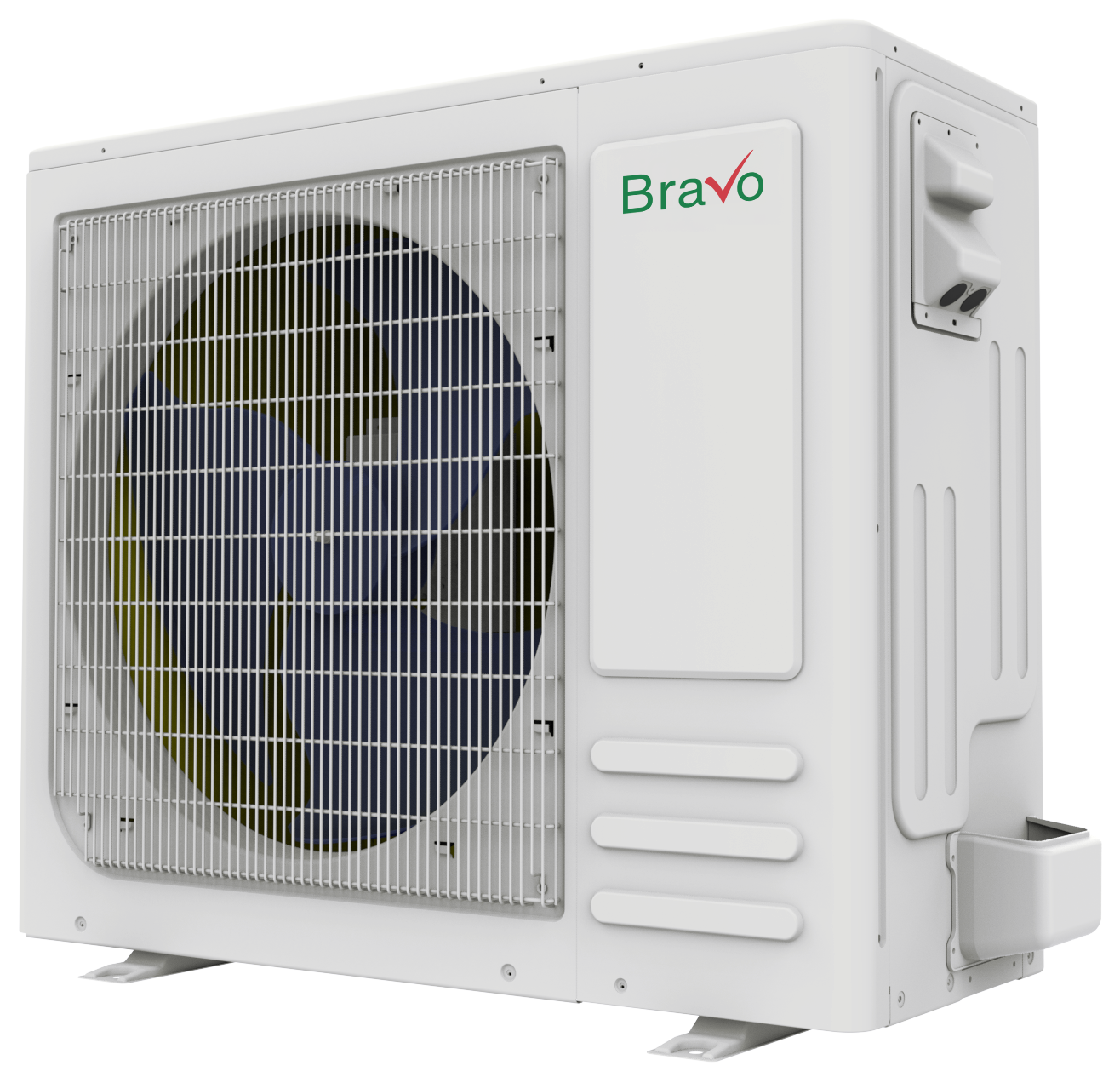

• Side discharge design on the matched outdoor unit for flexible exterior placement

Compatibility

The BRV-MP60AHUW-230VI is the indoor air handler component of the Bravo single-zone ducted heat pump system and is designed to pair with the BRV-SD60HI-230VO outdoor unit. It is compatible with standard 24-volt thermostat controls and third-party equipment as specified by the manufacturer.

Installation Notes

Installation of this air handler should be performed by a licensed HVAC technician holding an EPA Section 608 refrigerant handling certification, as the system uses R32 refrigerant which requires specific safety precautions due to its mildly flammable classification. Disconnect and lock out all electrical power to the system before beginning any service or installation work. Follow local mechanical codes and the manufacturer installation manual for refrigerant line sizing, electrical connections, and condensate drainage. Do not attempt to charge or commission the refrigerant circuit without the appropriate recovery and charging equipment rated for R32.

Technical Specifications

• Cooling Capacity: 60,000 BTU/h
• System Type: Single Zone Inverter Heat Pump
• Refrigerant: R32
• Voltage: 208-230 volts, 1-Phase, 60 Hz
• SEER2: 15.8
• EER: 8
• HSPF2: 8.5
• Installation Positions: 4 (Multi-Position)
• Coil Type: A-Coil
• Thermostat Compatibility: Standard 24-volt
• Matched Outdoor Unit: BRV-SD60HI-230VO

Standard Information

• Brand: Bravo
• Manufacturer Part Number: BRV-MP60AHUW-230VI
