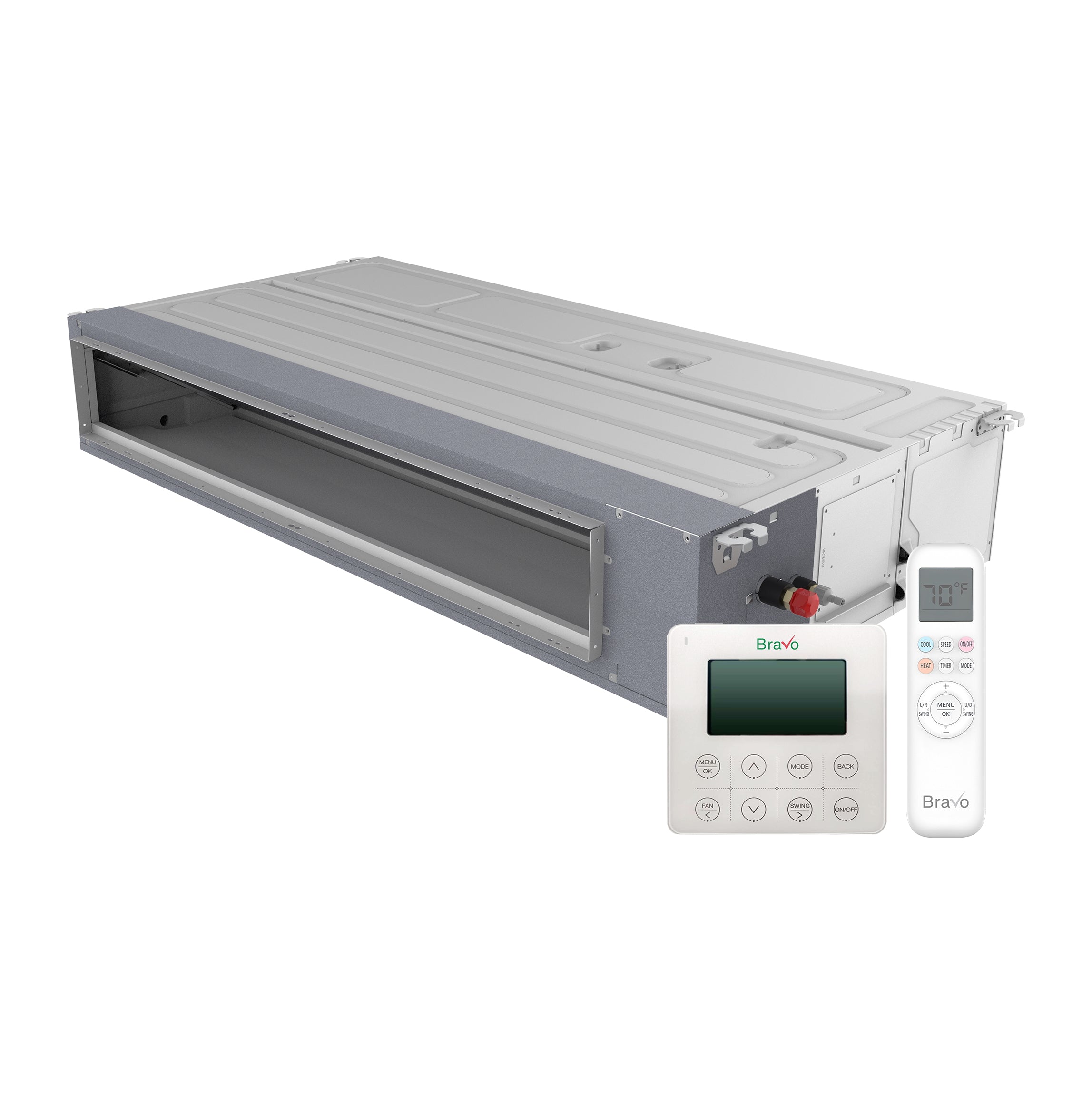

Bravo BRV-M24DT-230VI Slim Duct Indoor Air Handler 24000 Btu 230V Multi-zone Mini Split

Product Description

The Bravo BRV-M24DT-230VI is a 24,000 BTU slim duct indoor air handler designed for concealed installation in multi-zone mini split heat pump systems. Operating on 208-230V, 1-phase, 60Hz power, this unit delivers both cooling and heating capacity of 24,000 BTU/h and is built around inverter compressor technology for variable-speed, energy-efficient operation. Its low-profile, compact form factor allows it to be mounted inside ceiling voids or wall cavities, keeping all hardware out of sight while maintaining effective airflow distribution throughout the conditioned space. Licensed HVAC technicians install and commission this unit as part of a multi-zone ducted system.

The BRV-M24DT-230VI is suited for residential and light commercial applications where concealed climate control is required. It is compatible with Bravo Milano Series multi-zone outdoor units and has been configured in 2-zone and 3-zone systems including pairings with outdoor units such as the BRV-M36-230VO and BRV-M42-230VO. Typical installations include luxury residential builds, boutique commercial spaces, and any project where exposed wall-mount units are not acceptable. The unit supports a wall-mounted thermostat for localized zone control and Smart App connectivity for remote access and scheduling.

Key Features

• 24,000 BTU/h cooling and heating capacity for larger zones
• Slim duct, low-profile design installs inside ceiling voids or wall cavities for fully concealed placement
• Inverter technology allows variable-speed operation for efficient, consistent conditioning
• 208-230V, 1-phase, 60Hz power supply compatible with standard residential electrical service
• Smart App connectivity enables remote temperature and scheduling control from a mobile device
• Compatible with wall-mounted thermostat for dedicated zone-level control

Compatibility

Designed for use as an indoor zone unit in Bravo Milano Series multi-zone ducted mini split systems. Confirmed configurations include pairing with the BRV-M36-230VO outdoor unit in a 3-zone setup alongside BRV-M12DT-230VI units, and with the BRV-M42-230VO outdoor unit in 2-zone and 3-zone configurations alongside BRV-M09DT-230VI or BRV-M12DT-230VI units. Also listed in 2-zone configurations with BRV-M18DT-230VI indoor units.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local mechanical codes and the manufacturer's installation instructions. The indoor unit is mounted inside a ceiling void or wall cavity, requiring adequate clearance for airflow and service access. Disconnect all electrical power and ensure the refrigerant circuit is properly recovered before servicing any connected components. Refrigerant handling requires EPA Section 608 certification.

Technical Specifications

• Cooling Capacity: 24,000 BTU/h
• Heating Capacity: 24,000 BTU/h
• Power Supply: 208-230V, 1-phase, 60Hz
• Unit Type: Slim Duct Indoor Air Handler
• System Type: Multi-Zone Ducted Mini Split Heat Pump
• Refrigerant: R32
• Controls: Wall-mounted thermostat, Smart App

Standard Information

• Brand: Bravo
• Manufacturer Part Number: BRV-M24DT-230VI
