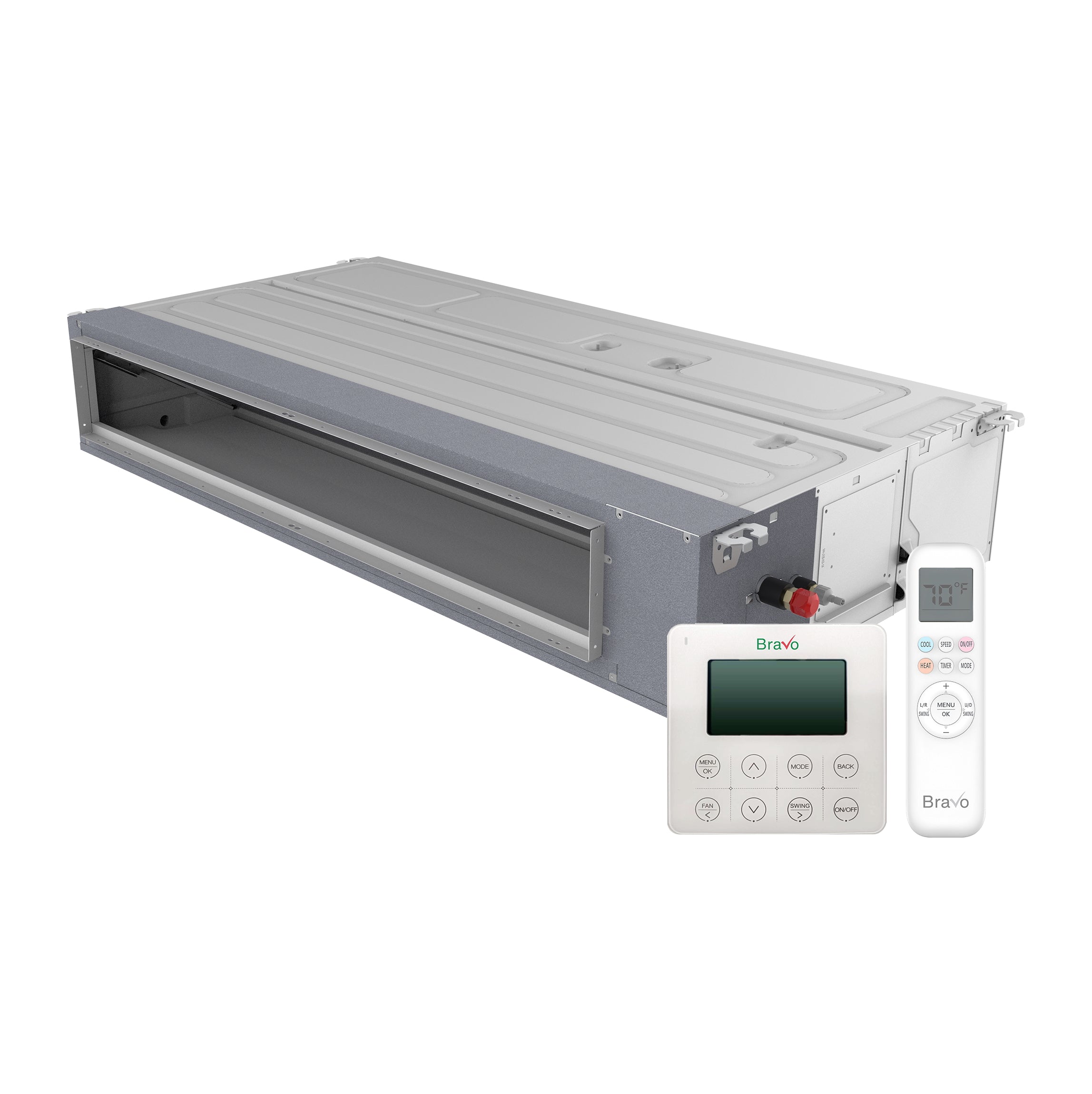

Bravo BRV-M18DT-230VI Slim Duct Mini Split Indoor Unit 18000 Btu 230V Multi-zone

Product Description

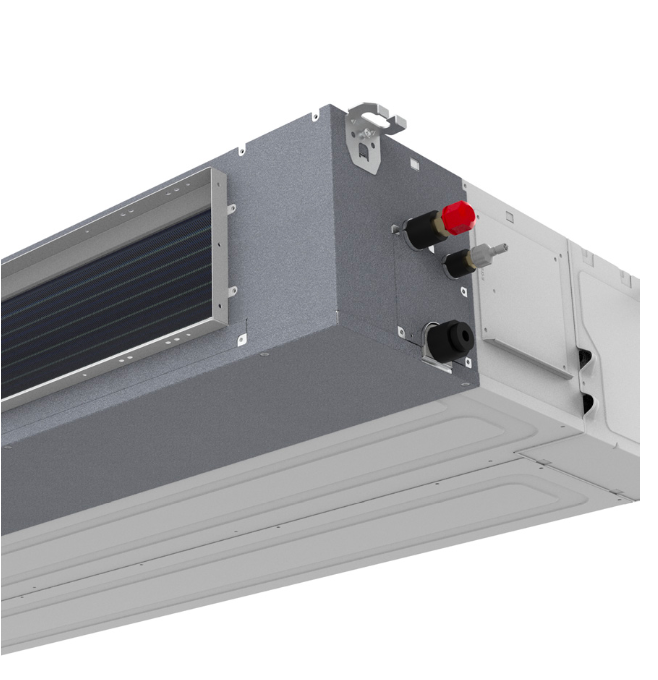

The Bravo BRV-M18DT-230VI is an 18,000 BTU slim duct indoor unit designed for multi-zone mini split heat pump systems operating on 208-230 volts, single-phase, 60 Hz power. Part of the Bravo Milano Series, this concealed ducted unit mounts inside the ceiling or wall cavity, keeping the HVAC hardware out of sight while delivering both heating and cooling through a low-profile air handler. The unit achieves a SEER2 rating of up to 24, making it a strong performer for energy-conscious installations. It uses R32 refrigerant and integrates inverter-driven technology to modulate capacity based on load. Licensed HVAC technicians install and commission this unit as part of a matched multi-zone system.

The BRV-M18DT-230VI is suited for residential and light-commercial applications where concealed delivery is preferred over exposed wall-mount units. It is commonly paired with Bravo Milano Series multi-zone outdoor units in 2-zone, 3-zone, 4-zone, and 5-zone configurations. Documented system pairings include use alongside BRV-M09DT-230VI and BRV-M12DT-230VI indoor units on shared outdoor equipment. The unit includes a wall-mounted thermostat for local control and supports Smart App connectivity for remote management via smartphone or device. Adjustable fan speeds, an auto timer, and an anti-mildew function are included.

Key Features

• 18,000 BTU/h slim duct design for concealed ceiling or wall-cavity installation
• SEER2 rating up to 24 for high-efficiency multi-zone operation
• Compatible with Bravo Milano Series 2-zone, 3-zone, 4-zone, and 5-zone outdoor units
• Operates on 208-230 volts, single-phase, 60 Hz power supply
• R32 refrigerant with inverter-driven variable-capacity compressor technology
• Includes wall-mounted thermostat and Smart App remote control capability
• Anti-mildew function, adjustable fan speeds, and auto timer built in

Compatibility

The BRV-M18DT-230VI is a Milano Series slim duct indoor unit confirmed for use in Bravo multi-zone ducted systems, including documented configurations with BRV-M09DT-230VI and BRV-M12DT-230VI indoor units on shared Bravo Milano Series outdoor equipment. It is intended to be paired with a compatible Bravo multi-zone outdoor condensing unit; consult the Bravo Milano Series system documentation to confirm matched outdoor unit selection for your specific zone count and total capacity requirement.

Installation Notes

Installation must be performed by a licensed HVAC technician qualified to work on mini split refrigeration systems. Power must be disconnected at the disconnect and breaker before any wiring or refrigerant connections are made. The unit requires proper line-set sizing, refrigerant line insulation, and condensate drainage per local mechanical codes and the manufacturer installation manual. EPA Section 608 certification is required for handling R32 refrigerant.

Technical Specifications

• Cooling Capacity: 18,000 BTU/h
• SEER2: Up to 24
• Power Supply: 208-230 volts, single-phase, 60 Hz
• Refrigerant: R32
• Unit Type: Slim Duct (Concealed Ducted Indoor)
• System Type: Multi-Zone Mini Split Heat Pump
• Control: Wall-mounted thermostat, Smart App

Standard Information

• Brand: Bravo
• Manufacturer Part Number: BRV-M18DT-230VI
