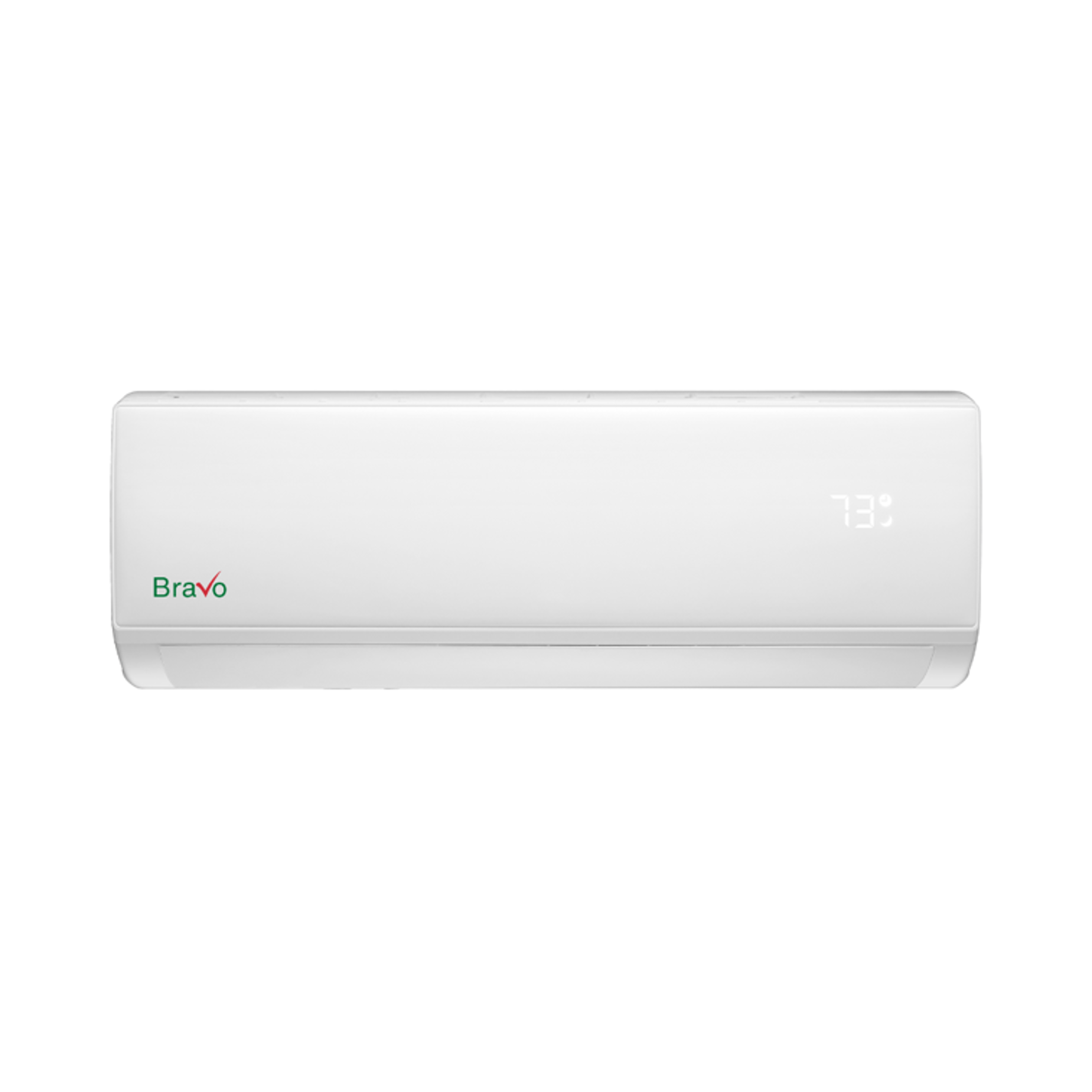

BRAVO ROMA BRV-M09WM-230VI Milano 9K BTU Wall Mount

Product Description

The BRAVO MILANO Wall Unit, model BRV-M09WM-230VI, is a multi-zone indoor head operating at 208-230V/60Hz. It delivers 9,000 BTU cooling and heating capacity, making it suitable for small to medium-sized rooms. This wall-mount air handler features R32 refrigerant, inverter technology, and SMART app compatibility for efficient climate control.

• 9,000 BTU cooling and heating capacity
• Designed for wall installation
• Operates on 208-230V/60Hz power supply
• R32 refrigerant for improved efficiency
• Indoor air flow: 353 CFM
• Noise level: 40 dB(A)

Product Highlights

This unit provides consistent cooling and heating performance with a modern, low-profile design that blends with interior spaces.

Product Information

Standard Information

• Model: BRV-M09WM-230VI
• Weight: 17.60 lbs (net), 22.00 lbs (gross)

Technical Specifications

• Capacity: 9,000 BTU (cooling/heating)
• Power: 208-230V/1Ph/60Hz
• Dimensions (W×D×H): 31.02 × 11.50 × 7.80 inches
• Packing Dimensions: 34.65 × 14.57 × 11.42 inches
• Refrigerant Piping: 1/4" liquid / 3/8" gas
• Max Fuse: 5.0 A
