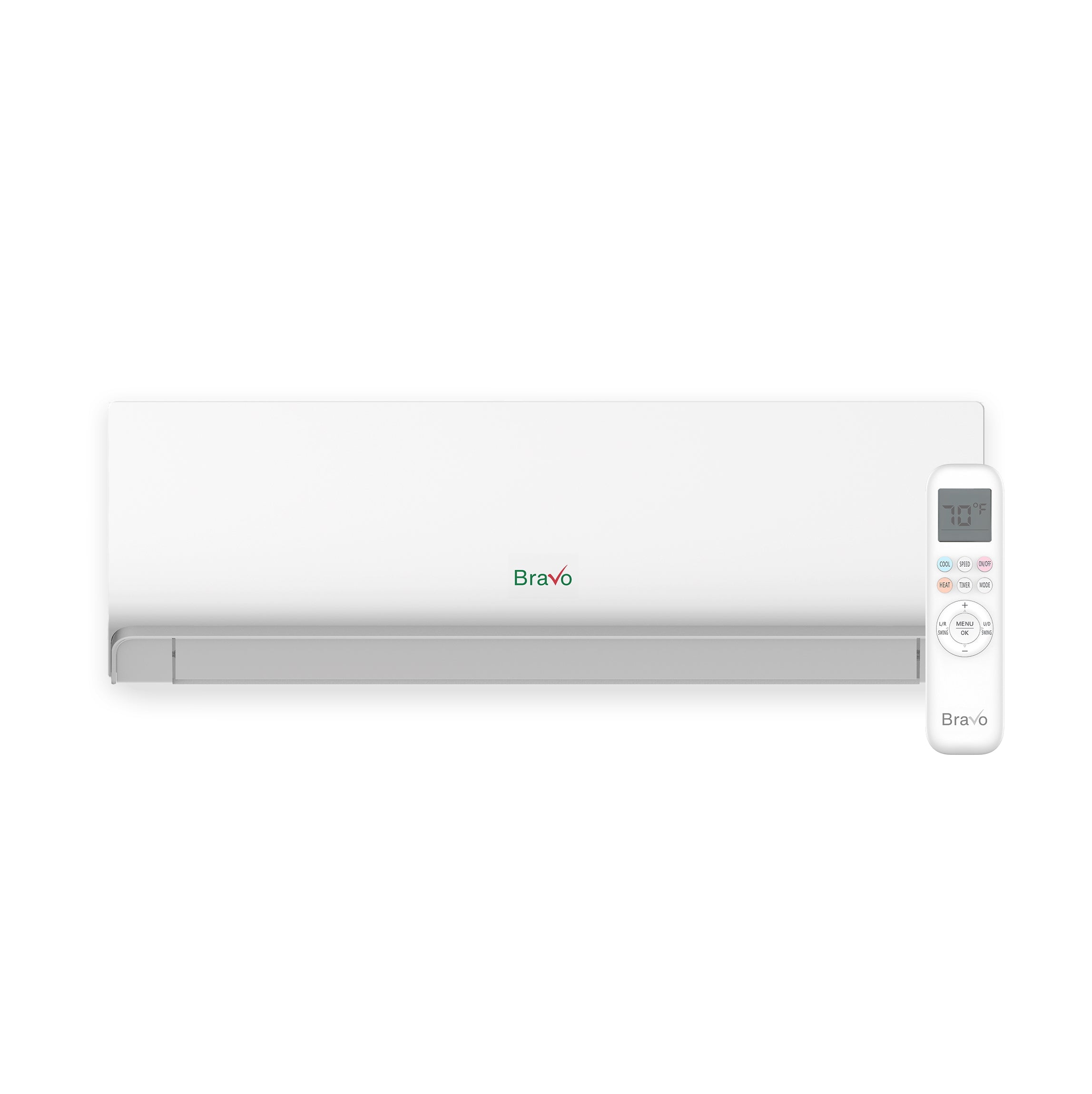

Bravo BRV-M18WM-230VI Wall Mount Mini Split Indoor Unit 17000 Btu/h 208-230V

Product Description

The Bravo BRV-M18WM-230VI is a high-wall indoor unit for ductless mini split heat pump systems, rated at 17,000 BTU/h cooling and 17,700 BTU/h heating. It operates on a 208-230 volt, single-phase, 60 Hz power supply and uses inverter technology to modulate compressor speed for efficient, consistent temperature control. The unit employs R32 refrigerant, which carries a lower global warming potential than older refrigerant blends. Licensed HVAC technicians install this unit as part of a single-zone or multi-zone ductless system in residential or light commercial applications.

The BRV-M18WM-230VI is designed for wall-mounted installation in larger single rooms or open areas where zoned climate control is needed. It is compatible with multi-zone outdoor units and is sold as an indoor-only component, paired with a compatible Bravo outdoor condensing unit. Typical installations include living rooms, master bedrooms, open-plan offices, and commercial suites where a concealed duct system is not practical or desired. The unit ships with a remote control and includes integrated Wi-Fi for smart app control.

Key Features

• Inverter-driven compressor compatibility for variable-speed, energy-efficient operation
• Bluefin corrosion-resistant coil protection for coastal and humid environments
• Multiple fan speeds plus Turbo Mode and Eco Mode for flexible airflow management
• Auto-swing louvers for adjustable air distribution without manual repositioning
• Sleep Mode for quiet, gradual temperature adjustment during overnight hours
• Anti-Mildew Mode to reduce moisture buildup and microbial growth in the coil cavity
• Integrated Wi-Fi with smart app control and included infrared remote

Compatibility

The BRV-M18WM-230VI is compatible with multi-zone Bravo Milano Series outdoor units and has been configured in 2-zone and 4-zone system builds alongside other Bravo Milano indoor units including the BRV-M09WM-230VI and BRV-M12WM-230VI. It is an indoor-only unit and requires a separately sourced compatible Bravo outdoor condensing unit to form a complete system.

Installation Notes

Installation must be performed by an EPA Section 608-certified HVAC technician. Disconnect and lock out all power to the system before mounting, running linesets, or making electrical connections. Refrigerant line sizing and system evacuation must comply with the manufacturer specifications and local mechanical codes. Do not operate the indoor unit without verifying the outdoor unit is properly charged and all electrical connections are torqued and secured per the installation manual.

Technical Specifications

• Cooling Rated Capacity: 17,000 BTU/h
• Heating Rated Capacity: 17,700 BTU/h
• Power Supply: 208-230 volts, 1-phase, 60 Hz
• Minimum Circuit Ampacity (MCA): 5 amps
• Refrigerant: R32
• Unit Type: High-Wall Indoor Unit
• Control: Remote control and Wi-Fi smart app included

Standard Information

• Brand: Bravo
• Manufacturer Part Number: BRV-M18WM-230VI
