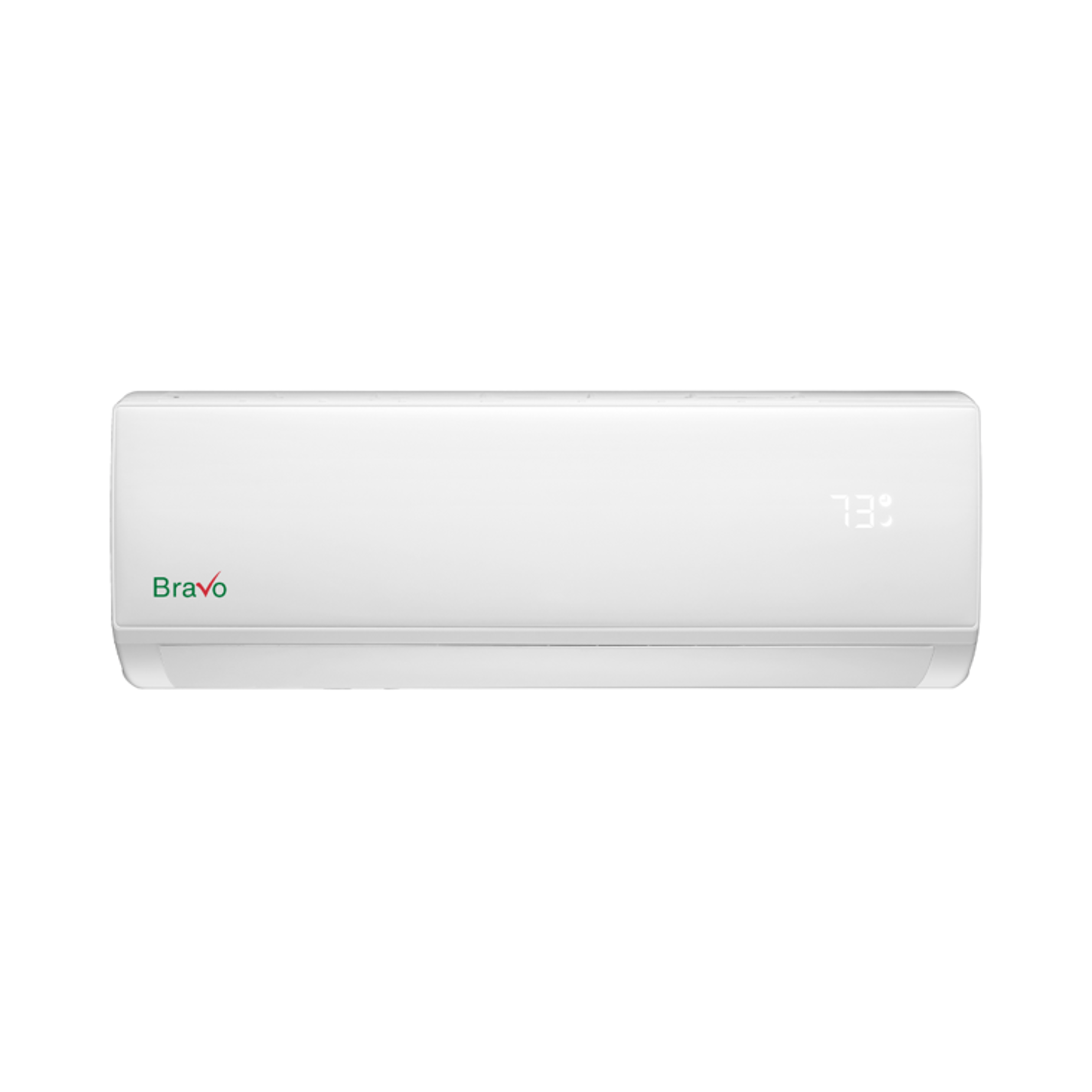

BRAVO ROMA BRV-M24WM-230VI Milano 24000 BTU Wall Mount Air Handler

Product Description

The Bravo Milano Wall Mount Air Handler model BRV-M24WM-230VI is designed for efficient climate control as part of a multi-zone mini split system. This indoor unit operates at 208-230V/1-Phase/60Hz and offers a cooling capacity of 24,000 BTU and heating capacity of 24,000 BTU, making it suitable for larger spaces. The wall-mounted design facilitates easy installation and frees up floor space.

• Powerful cooling and heating capacity of 24,000 BTU
• Easy installation with wall-mounted design
• Operates at 208-230V/1-Phase/60Hz
• Multi-zone system compatibility
• Smart APP and remote control included

Product Highlights

The Bravo Milano Wall Mount Air Handler provides effective air conditioning and heating while utilizing R32 refrigerant, known for its lower environmental impact. Features include high air flow, sleep mode, LED display, and inverter technology.

Product Information

Standard Information

• Model: BRV-M24WM-230VI
• Capacity: 24,000 BTU (Cooling / Heating)
• Series: Bravo Milano

Technical Specifications

• Power: 208-230V/1-Phase/60Hz
• Max Fuse: 5.0 A
• Indoor Air Flow: 765 CFM
• Noise Level: 50 dB(A)
• Unit Dimensions (W×D×H): 44.13 × 12.95 × 9.09 inches
• Packing Dimensions (W×D×H): 47.64 × 15.75 × 12.87 inches
• Net Weight: 33.07 lbs
• Gross Weight: 39.68 lbs
• Refrigerant Piping: 1/4" (liquid) / 5/8" (gas)
• Operation Temperature Range: 60.8-89.6°F
