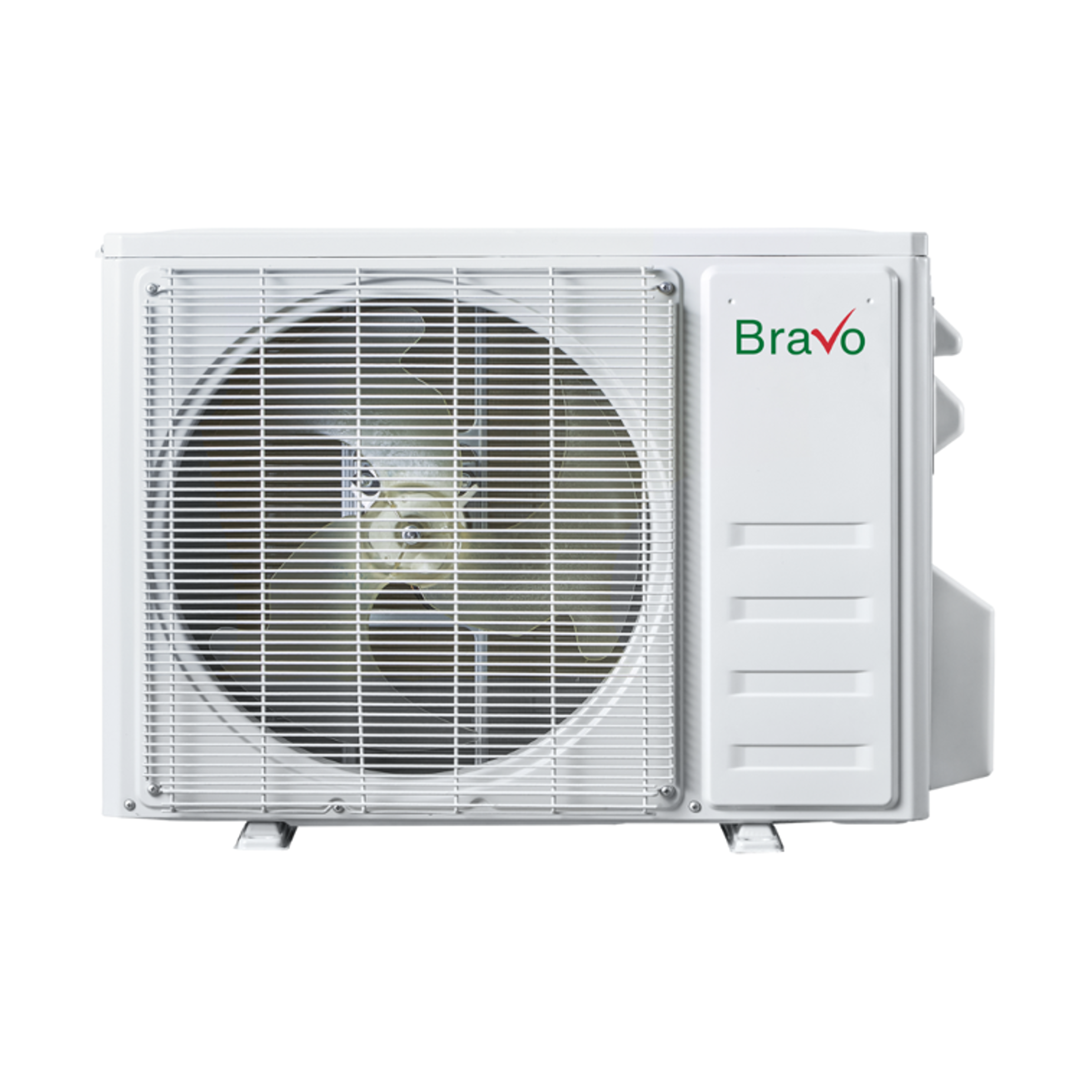

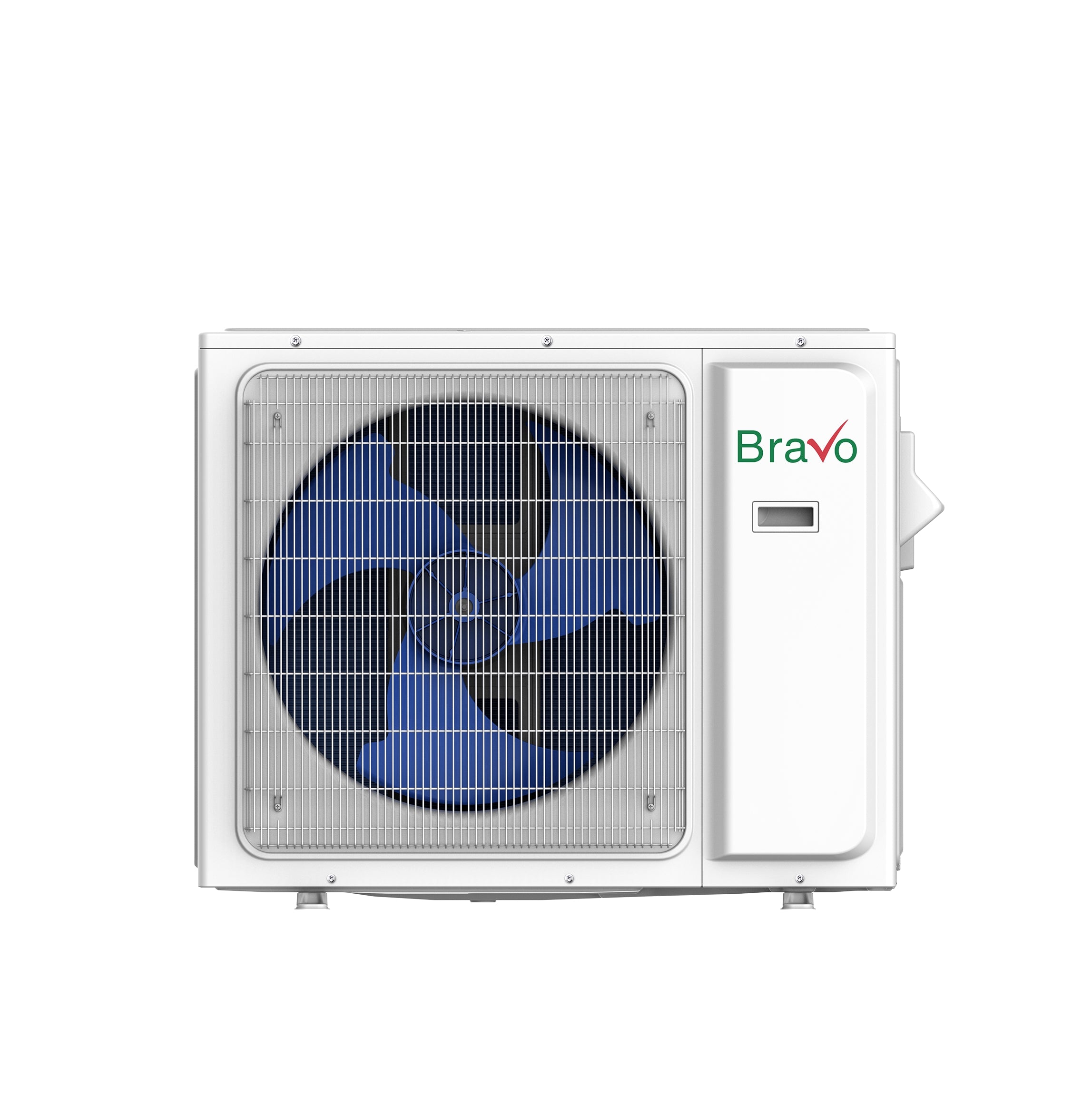

Bravo BRV-M36-230VO Milano Multi-zone Outdoor Condenser Unit 36000 Btu/h 208-230V

Product Description

The Bravo BRV-M36-230VO is a 36,000 BTU/h multi-zone outdoor condenser unit from the Milano Series, designed to deliver inverter-driven heating and cooling across two to four independent zones. It operates on 208-230V, 1-Phase, 60Hz power and carries a SEER2 rating of 23 and an HSPF2 of 10.0, placing it firmly in high-efficiency territory. The unit uses standard refrigerant and supports a wide operating temperature range, making it viable in climates with significant heating season demands. Licensed HVAC technicians install and commission this unit as part of a ductless mini-split system serving residential or light commercial applications.

The BRV-M36-230VO is suited for multi-zone ductless installations in residential homes, apartments, or light commercial spaces where individual room control is required. It supports a range of compatible indoor unit styles within the Bravo Milano lineup, including wall-mount and ceiling cassette indoor heads at capacities of 9,000, 12,000, 18,000, and 24,000 BTU/h per zone. Typical configurations pair this outdoor unit with two to four indoor units to cover multiple rooms or open areas from a single outdoor condenser. This makes it practical for new construction, retrofit projects, and additions where ducted systems are not feasible.

Key Features

• 36,000 BTU/h total capacity supporting 2 to 4 indoor zones
• SEER2 of 23 for high-efficiency cooling performance
• HSPF2 of 10.0 for efficient cold-climate heating
• Inverter compressor technology for variable-speed operation and reduced energy cycling
• Operating range down to -13 degrees F for both heating and cooling modes
• Compatible with wall-mount and ceiling cassette Milano Series indoor units at multiple capacities

Compatibility

Compatible with Bravo Milano Series indoor units including wall-mount models BRV-M18WM-230VI and BRV-M24WM-230VI, ceiling cassette models BRV-M12CT-230VI and BRV-M24CT-230VI, and floor-ceiling model BRV-M09FC-230VI, among other Milano lineup heads at 9K, 12K, 18K, and 24K BTU/h configurations in 2- to 4-zone arrangements.

Installation Notes

Installation must be performed by a licensed HVAC technician holding an EPA 608 certification for refrigerant handling. Disconnect and lock out all electrical power before making any wiring or refrigerant connections. The outdoor unit ships at 154 pounds via LTL freight and requires proper mounting on a level pad or wall bracket rated for its weight. Follow all local mechanical and electrical codes, including NEC requirements for disconnect placement and conductor sizing, and consult the Bravo Milano Multi-Zone Outdoor Owner's Manual for unit-specific commissioning procedures.

Technical Specifications

• Rated Capacity (Cooling): 36,000 BTU/h
• Rated Capacity (Heating): 36,000 BTU/h (range: 7,000 - 43,000 BTU/h)
• Number of Zones: 2 to 4
• Power Supply: 208-230V, 1-Phase, 60Hz
• SEER2: 23
• HSPF2: 10.0
• Refrigerant Volume: 81.2 oz
• Operating Temperature Range (Cooling): -13 to 125.6 degrees F
• Operating Temperature Range (Heating): -13 to 75.2 degrees F
• Unit Weight: 154 pounds

Standard Information

• Brand: Bravo
• Manufacturer Part Number: BRV-M36-230VO
