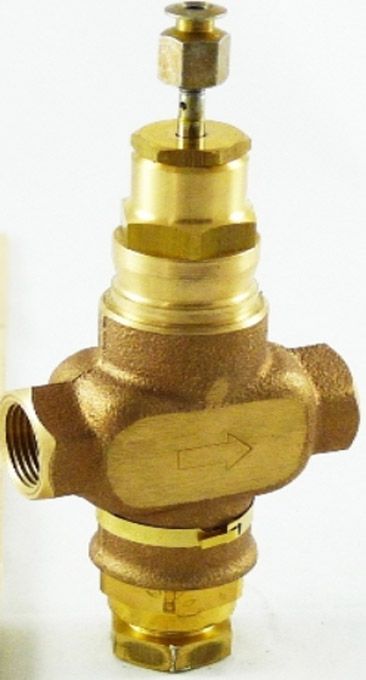

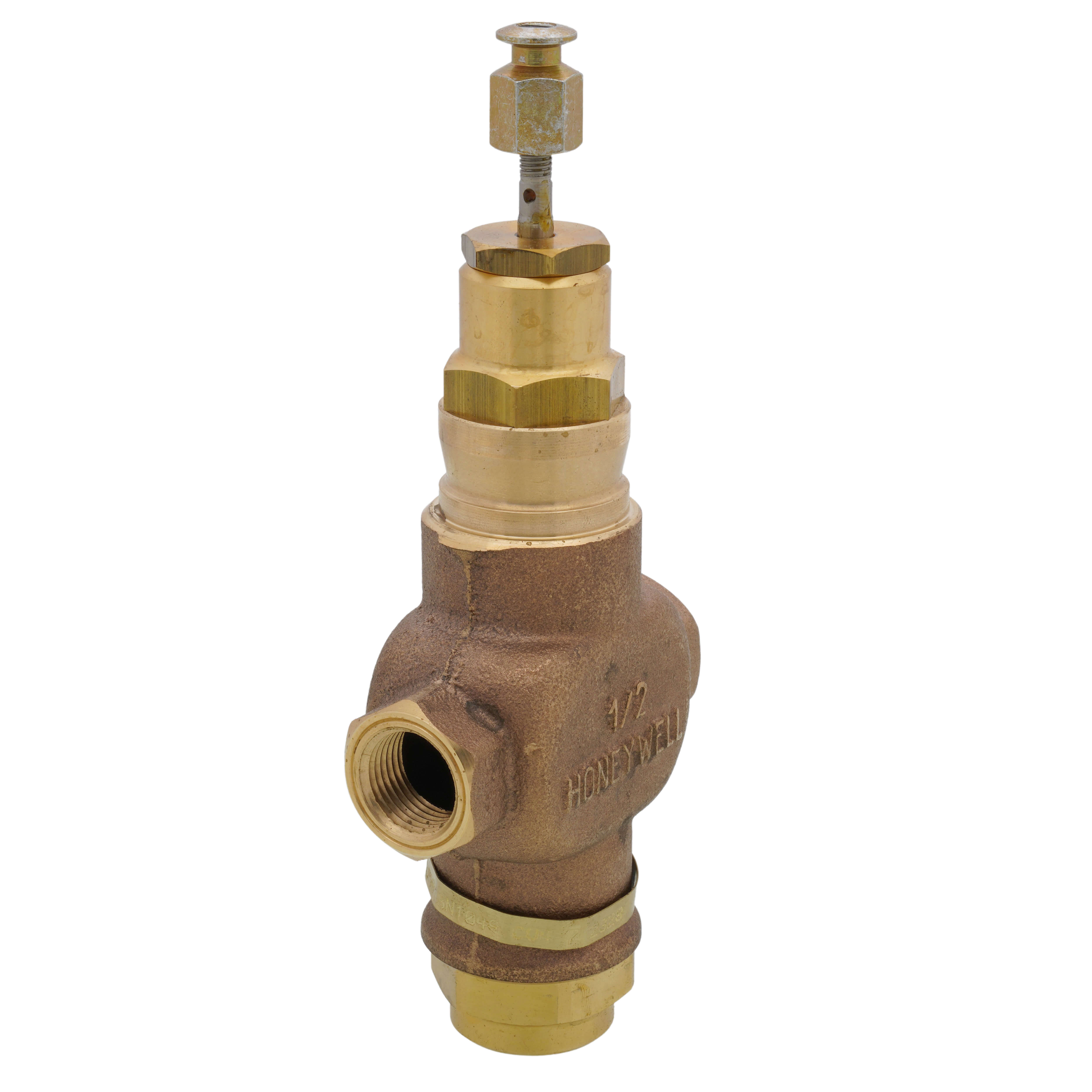

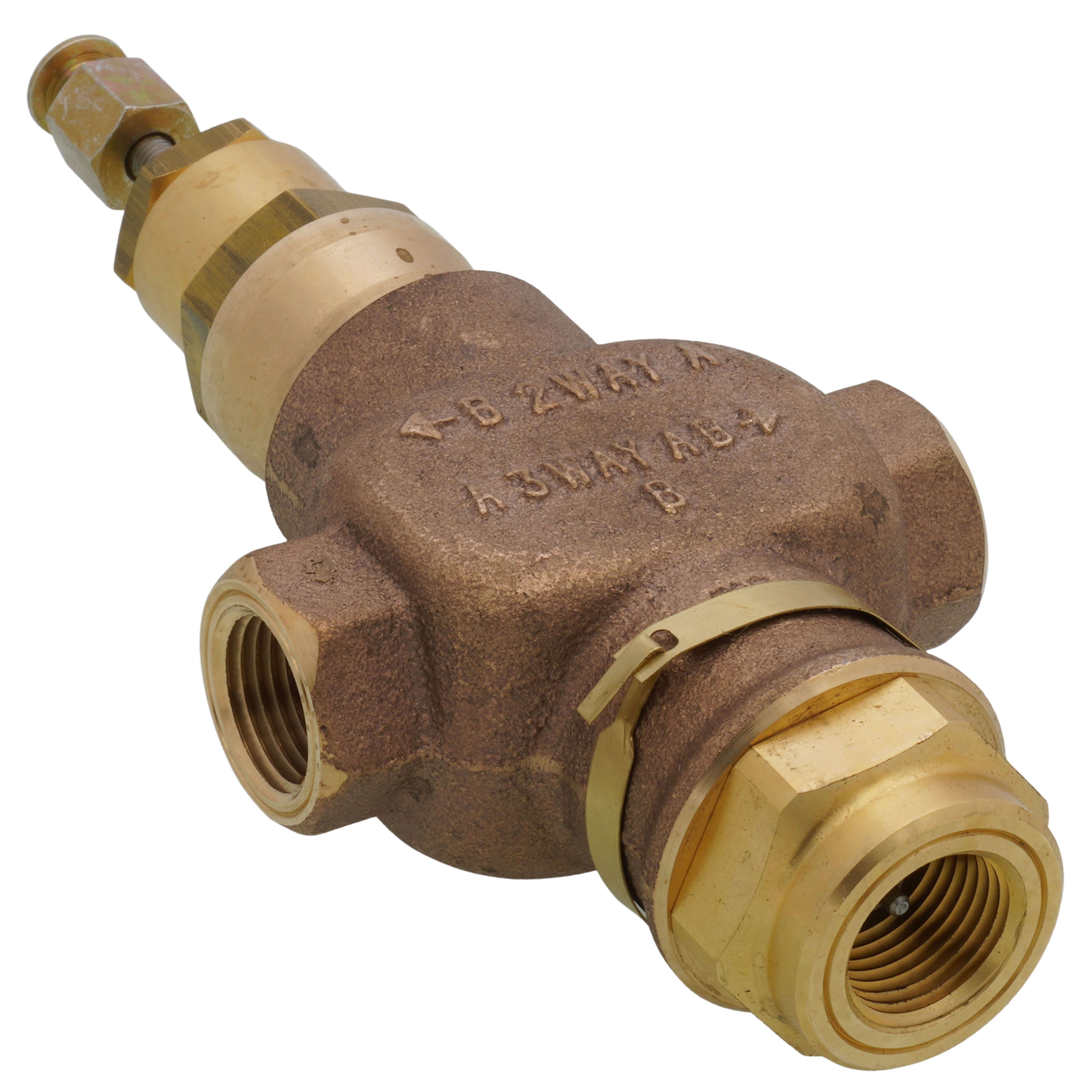

Honeywell V5013N1048 1/2 Valve Body, Mixing, 4.7CV

Product Description

The Honeywell V5013N1048 is a three-way globe valve designed for regulating fluid mixing in various HVAC applications. With a flow capacity of 4.7Cv, this valve is primarily utilized for controlling hot water, cold water, and glycol solutions up to fifty percent concentration. The valve features a red brass body with NPT-threaded connections that ensure strong and secure fittings.

• Constructed from durable materials for longevity.
• Designed for high precision in fluid management.
• Compatible with pneumatic or electric actuation systems.

Product Highlights

This valve provides precise control over temperature and flow, making it essential for maintenance professionals and engineers.

Product Information

Standard Information

• Brand: Honeywell
• MPN: V5013N1048

Technical Specifications

• Valve Type: Three-way Globe Valve
• Pipe Size: 1/2 inches
• Body Material: Red Brass
• Max Pressure: 240 psi WOG
• Flow Capacity: 4.7 Cv
• Dimensions: 8 5/16 inches H x 3 1/4 inches W x 1 9/16 inches D
• Stem Travel: 3/4 inches
• Operating Temperature Range: 36 F to 248 F
