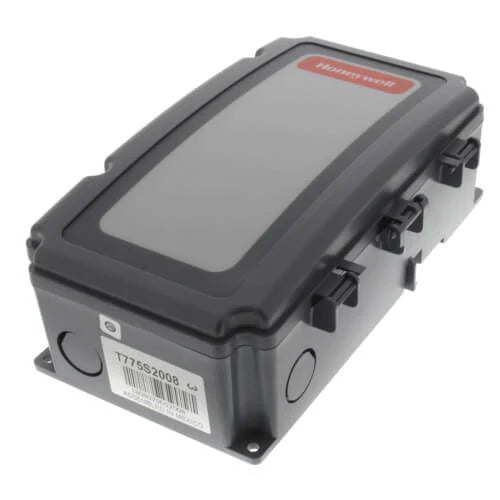

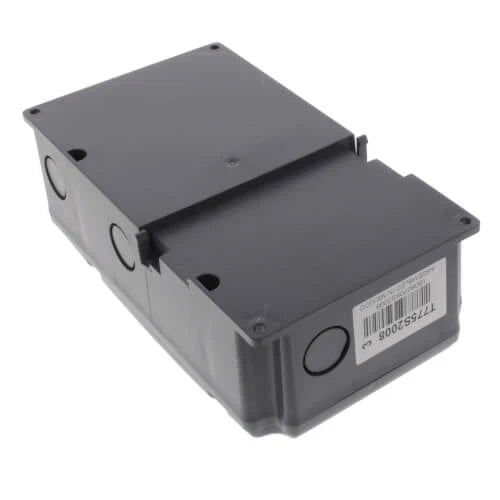

Honeywell T775S2008 T775 Series 2000 Relay Expansion Module

Product Description

The Honeywell T775S2008 T775 Series 2000 Relay Expansion Module provides key expansion capabilities for remote temperature controllers. Designed for use with the T775L and T775P models, this module expands your control options with four SPDT relay outputs.

• Adds four SPDT relays to the main controller
• Compatible with T775L and T775P models
• Supports relay staging up to 12 relays

Product Highlights

This relay expansion module is suitable for commercial and agricultural applications where precise temperature control is required. It’s compatible with various loads and offers a user-friendly interface with an easy installation process.

Product Information

Standard Information

• Brand: Honeywell
• MPN: T775S2008

Technical Specifications

• Voltage: 24 Vac or 120/240 Vac
• Frequency: 50 Hz, 60 Hz
• Relay Outputs: 4 SPDT
• Contact Ratings (24 Vac): 10.0A resistive
• Contact Ratings (120 Vac): 1/2 hp; 9.8 AFL, 58.8 ALR, 125 VA Pilot Duty
• Contact Ratings (240 Vac): 1/2 hp; 4.9 AFL, 29.4 ALR, 125 VA Pilot Duty
• Dimensions: 8.15625 inches high x 4.40625 inches wide x 2.9375 inches deep
• Setpoint Temperature Range (F): -40 F to 248 F
• Differential Temperature (F): 1 F to 150 F
• Operating Ambient Temperature Range (F): -40 F to 140 F @ 60 Hz
