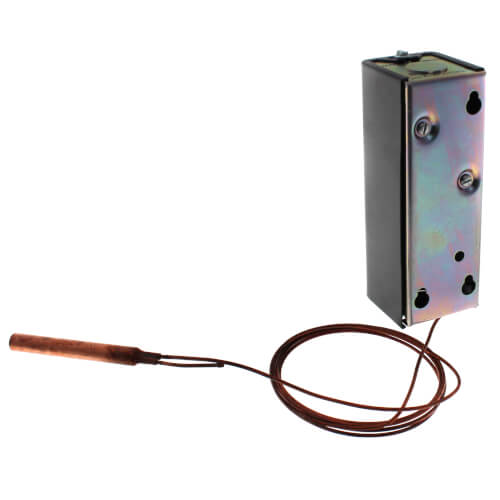

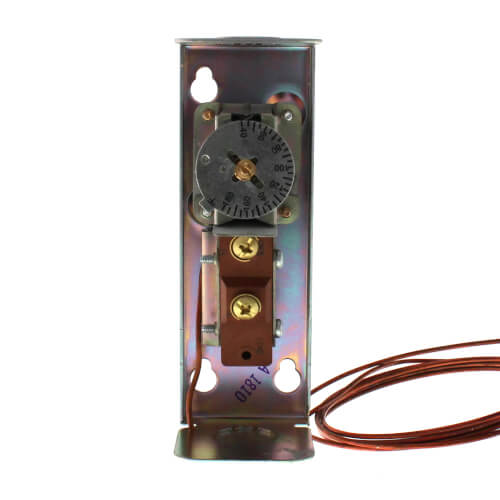

Honeywell T4031C1012 Line Voltage Mechanical Thermostat Heat Only 120 to 240VAC

Product Description

The Honeywell T4031C1012 is a line voltage mechanical thermostat. This heat-only thermostat operates on 120 to 240VAC. It is designed for precise temperature control in industrial and commercial applications.

• Temperature range: 40 to 180 degrees Fahrenheit
• 5.5-foot capillary tube for flexible installation
• Single Pole Single Throw (SPST) switch

Product Highlights

The Honeywell T4031C1012 thermostat features a SPST switch that ensures reliable performance. Its broad temperature range and 5.5-foot capillary make it suitable for various applications like bulk milk tanks, beverage machines, and crop drying.

Product Information

Standard Information

• Brand: Honeywell
• MPN: T4031C1012

Technical Specifications

• Temperature Range: 40 to 180 degrees Fahrenheit
• Voltage: 120/240VAC
• Frequency: 50/60Hz
• Contact Ratings (120VAC): 8.0 AFL, 48.0 ALR
• Contact Ratings (240VAC): 5.1 AFL, 30.6 ALR
• Capillary Length: 5.5 feet
• Bulb Size: 2-7/8 inches long x 3/8 inch diameter
• Setpoint Temperature Range: 40 to 180 degrees Fahrenheit
• Maximum Operating Temperature: 205 degrees Fahrenheit
• Dimensions: 5-5/8 inches high x 2 inches wide x 2-1/8 inches deep
• Output: 1 SPST, break on temperature rise
• Sensor Element: Copper
• Number of Sensor Inputs: 1
• Application: Line-voltage, low-voltage, or millivolt control of bulk milk tanks, beverage dispensing machines, ice cube machines, dishwashers, crop drying, tobacco curing, and similar applications
• Country of Origin: United States
