Product Description

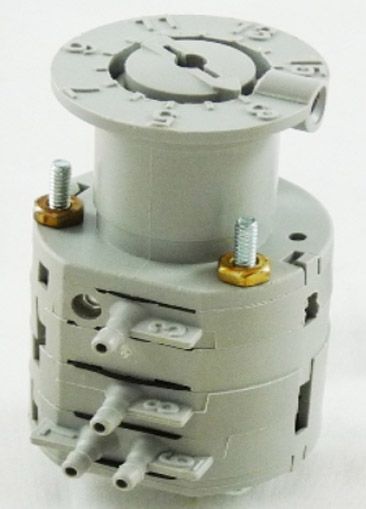

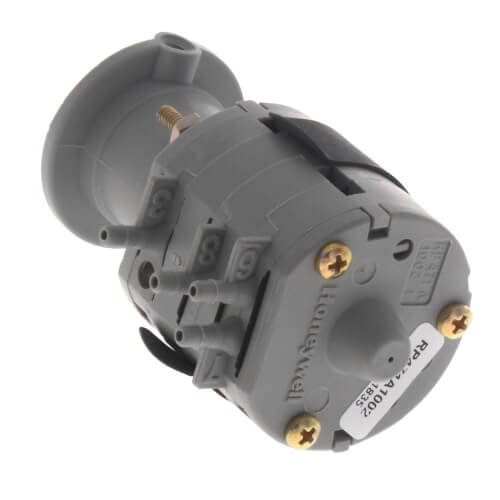

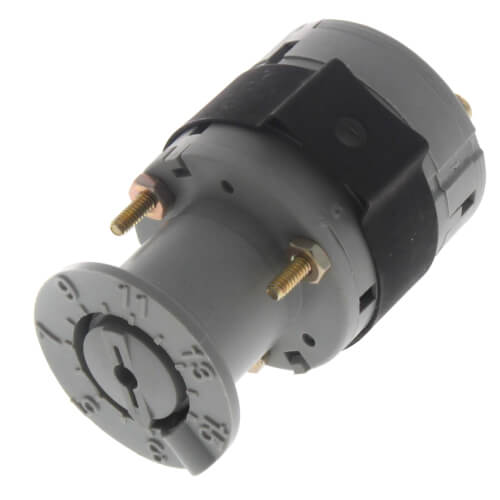

The Honeywell RP471A1002 is a versatile switching relay designed for various industrial automation systems. This relay features a Single Pole Double Throw (SPDT) mechanism, which makes it adaptable for diverse applications.
- 3-13 PSI operating pressure
- SPDT switching relay
- Reliable and efficient operation
Product Highlights
The RP471A1002 by Honeywell is built to switch loads effectively, with a robust design that ensures long-lasting, efficient performance. It's suitable for pneumatic or hydraulic systems due to its 3-13 PSI range, offering reliability in harsh industrial environments.
Product Information
Standard Information
-
Brand: Honeywell
-
Model: RP471A
-
Part Number: RP471A1002
Technical Specifications
-
Type: Pneumatic, four-port, snap acting relay
-
Operation: Proportional to 2-position converter
-
Capacity: 0.039 scfm at 1 psi differential (18 mL/s at 5 kPa differential)
-
Air Connections: Barb fittings 5/32 inches (4 mm) O.D. plastic tubing
-
Maximum Safe Operating Pressure: 30 psi
-
Differential Pressure Range: 1 psi maximum
-
Nominal Switch Differential: 0.5 psi
-
Setpoint Range: Adjustable between 3 to 15 psi
-
Mounting: Wall or Panel
-
Operating Humidity Range: 5 to 95% RH
-
Dimensions: 1.5 inches diameter x 1 inch deep
-
Temperature Range: 0 F to 140 F
-
Includes: 14003030-001, 1.5 inches mounting clip for mounting relay to wall or panel
