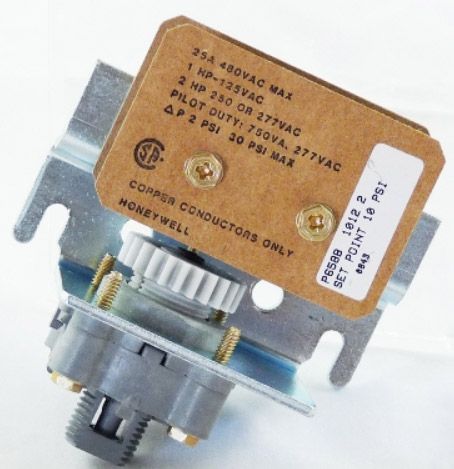

Honeywell P658B1012 Panel Mounted Pneumatic / Electric Switch 10 psi

Product Description

The Honeywell P658B1012 is a panel-mounted pneumatic/electric switch designed to convert pneumatic signals to electrical switching actions. This versatile switch has applications in various mechanical systems. It is factory calibrated at 10 psi but can be adjusted between 2 to 24 psi to meet specific requirements.

• Converts pneumatic signals into electrical switching actions.
• Adjustable range from 2 to 24 psi.
• Panel-mounted for ease of integration.

Product Highlights

The Honeywell P658B1012 pneumatic/electric switch is ideal for controlling fans, pumps, and other mechanical equipment. It supports SPDT (single-pole, double-throw) switching actions, making it suitable for on/off control applications. The switch is protected against corrosion with plated ferrous parts and includes a neoprene diaphragm element.

Product Information

Standard Information

• Brand: Honeywell
• MPN: P658B1012
• Model: P658B

Technical Specifications

• Switch Type: Pneumatic/Electric
• Setpoint Range: 2 to 24 psi
• Factory Calibrated: 10 psi
• Switching Actions: SPDT
• Air Connections: Barb fitting for 1/4 inch O.D. plastic tubing
• Electrical Connections: Screw terminals
• Motor Load: 1 hp at 125 Vac, 2 hp at 250 or 277 Vac
• Pilot Duty Ratings: 750 VA at 125, 250, or 277 Vac
• Resistive Load: 25A at 125, 250, or 480 Vac
• Maximum Safe Operating Pressure: 30 psi
• Operating Humidity Range: 5 to 95% RH
• Temperature Range: 40 F to 140 F
• Dimensions: 5 3/8 inches high x 3 3/8 inches wide x 2 inches deep
