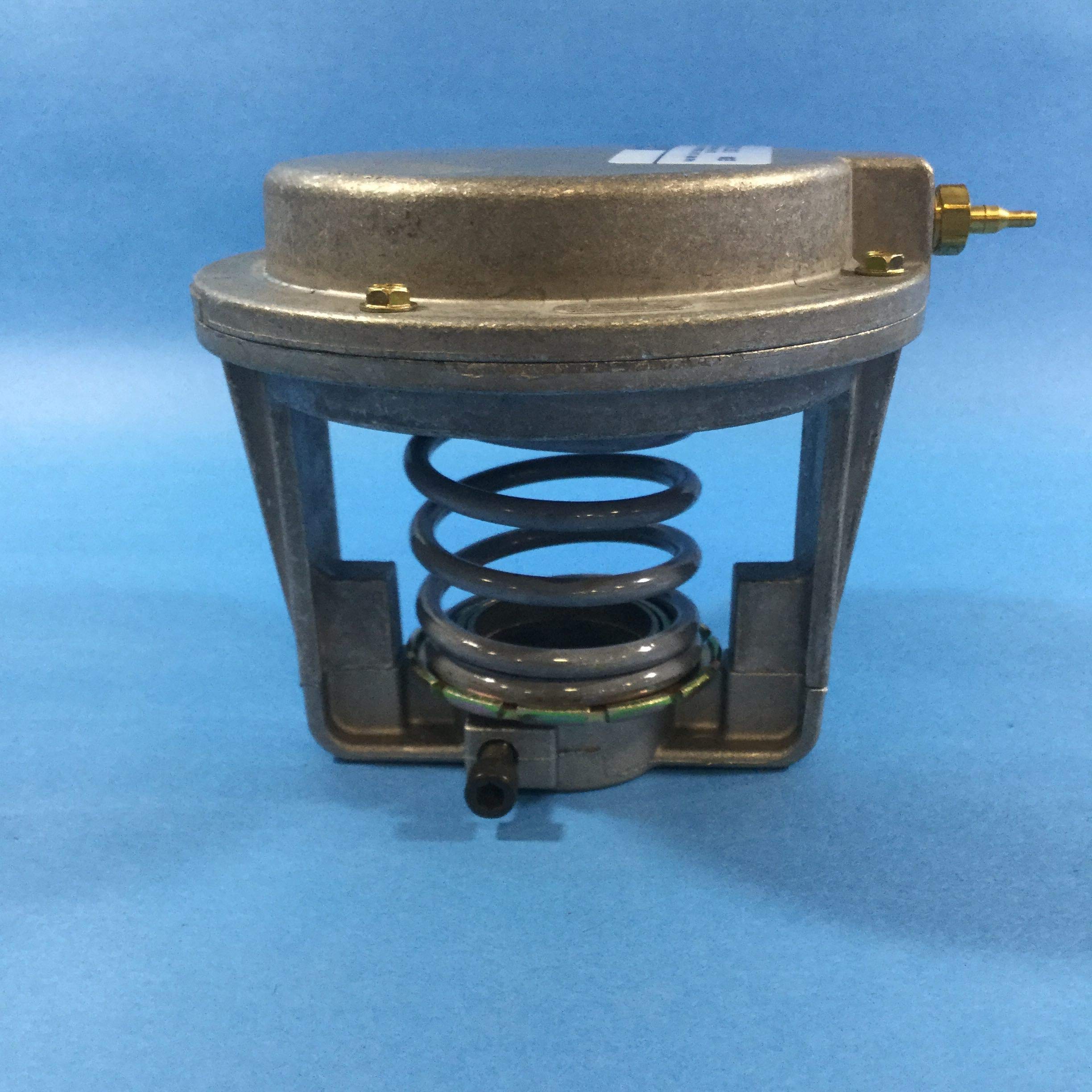

Honeywell MP953C1018 Pneumatic Coil Valve Actuator 8-12 psi

Product Description

The Honeywell MP953C1018 is a pneumatic coil valve actuator with a low force and a spring range of 8-12 psi. It offers a stroke distance of 3/4 inches and is designed for precise control in HVAC systems.

• Pneumatic valve actuator with direct-acting control
• Spring range of 8-12 psi with a 3/4 inch stroke
• Suitable for steam, liquids, air, and noncombustible gases

Product Highlights

This actuator ensures efficient control of steam and liquid flow in HVAC systems. The rolling diaphragm enhances durability and minimizes hysteresis. It features dual barbed air connections for easy installation. This product is built for long-term performance in demanding environments.

Product Information

Standard Information

• Brand: Honeywell
• Model: MP953C
• Number of Items: 1

Technical Specifications

• MPN: MP953C1018
• Stroke: 3/4 inches
• Spring Range: 8-12 psi
• Temperature Range: 0-140 degrees Fahrenheit
• Maximum Operating Pressure: 25 psi
• Air Connections: 5/32 inch and 1/4 inch O.D. barbed fittings
• Fail Safe Mode: Spring Return
• Weight: 2.5 lbs
