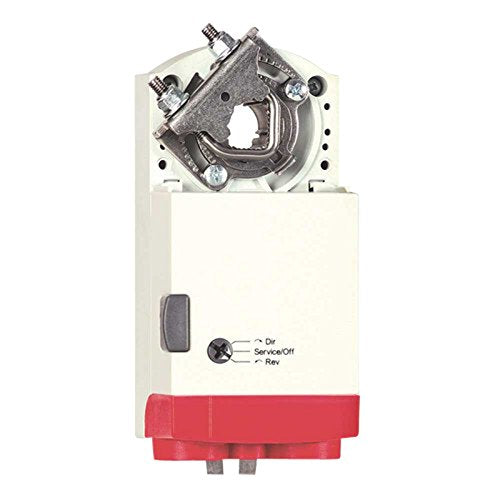

Honeywell MN6105A1011 Two Position, Floating Actuator 44 lb.

Product Description

The Honeywell MN6105A1011 is a two-position, floating actuator designed for HVAC applications. This actuator operates on twenty-four volts and is suitable for damper and valve control.

• Compact size for easy installation
• Non-spring return functionality
• Adjustable mechanical end limits

Product Highlights

This actuator supports direct coupling for seamless integration into various HVAC systems. It is ideal for controlling air dampers and ventilation flaps while providing reliable performance across a range of environments.

Product Information

Standard Information

• Brand: Honeywell
• MPN: MN6105A1011

Technical Specifications

• Supply Voltage: 24 Vac (±20% up to -15%)
• Torque: 44 lb-in (5 Nm)
• Rotational Stroke: 95 ±3 degrees
• Temperature Range: -5°F to 140°F
• Power Consumption: 5 VA
• Weight: 1.36 lbs
• Dimensions: Length 5.4 in, Width 8.1 in, Height 3.15 in
• Mounting: Direct Coupled
• Control Signal: 2 position, Floating
