Product Description

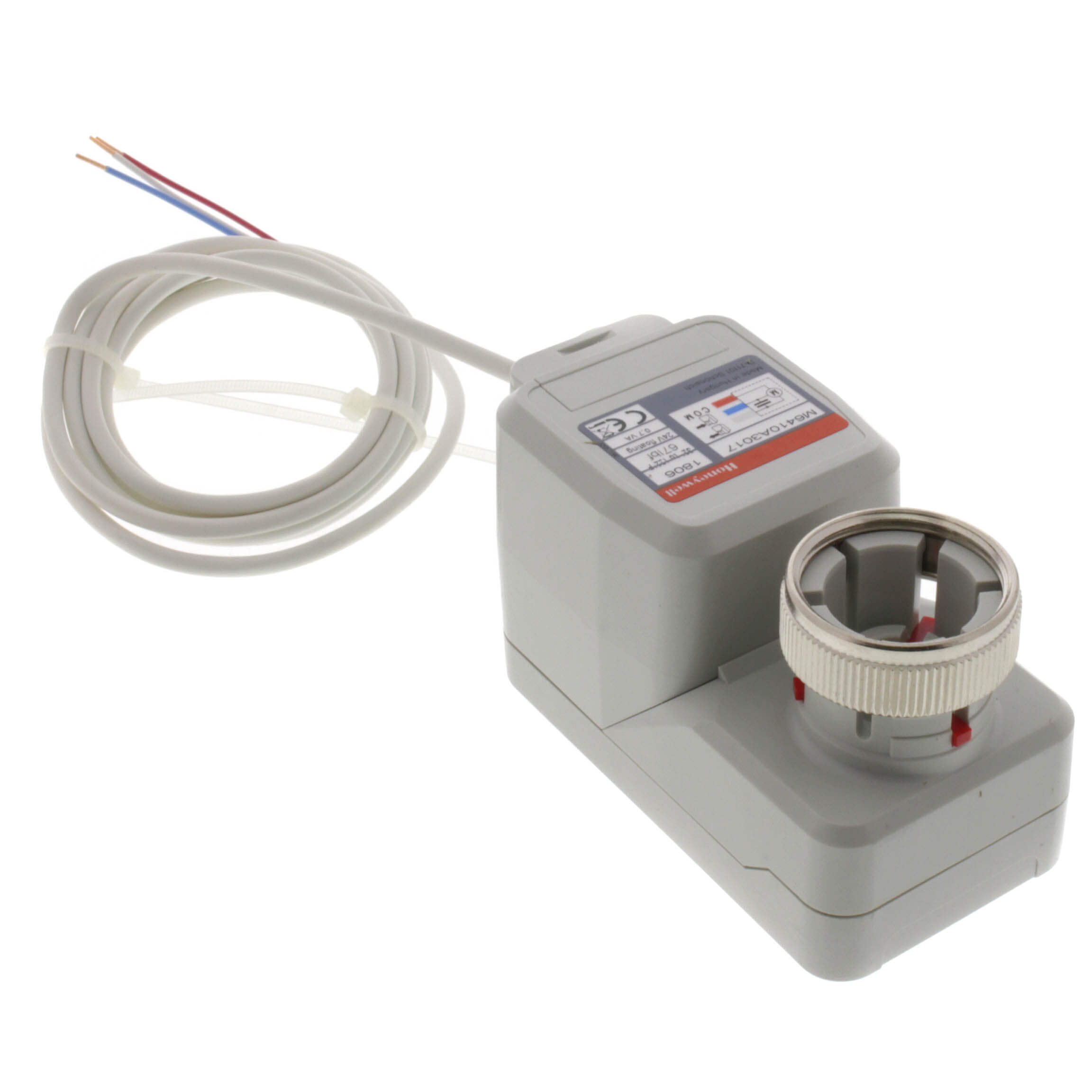

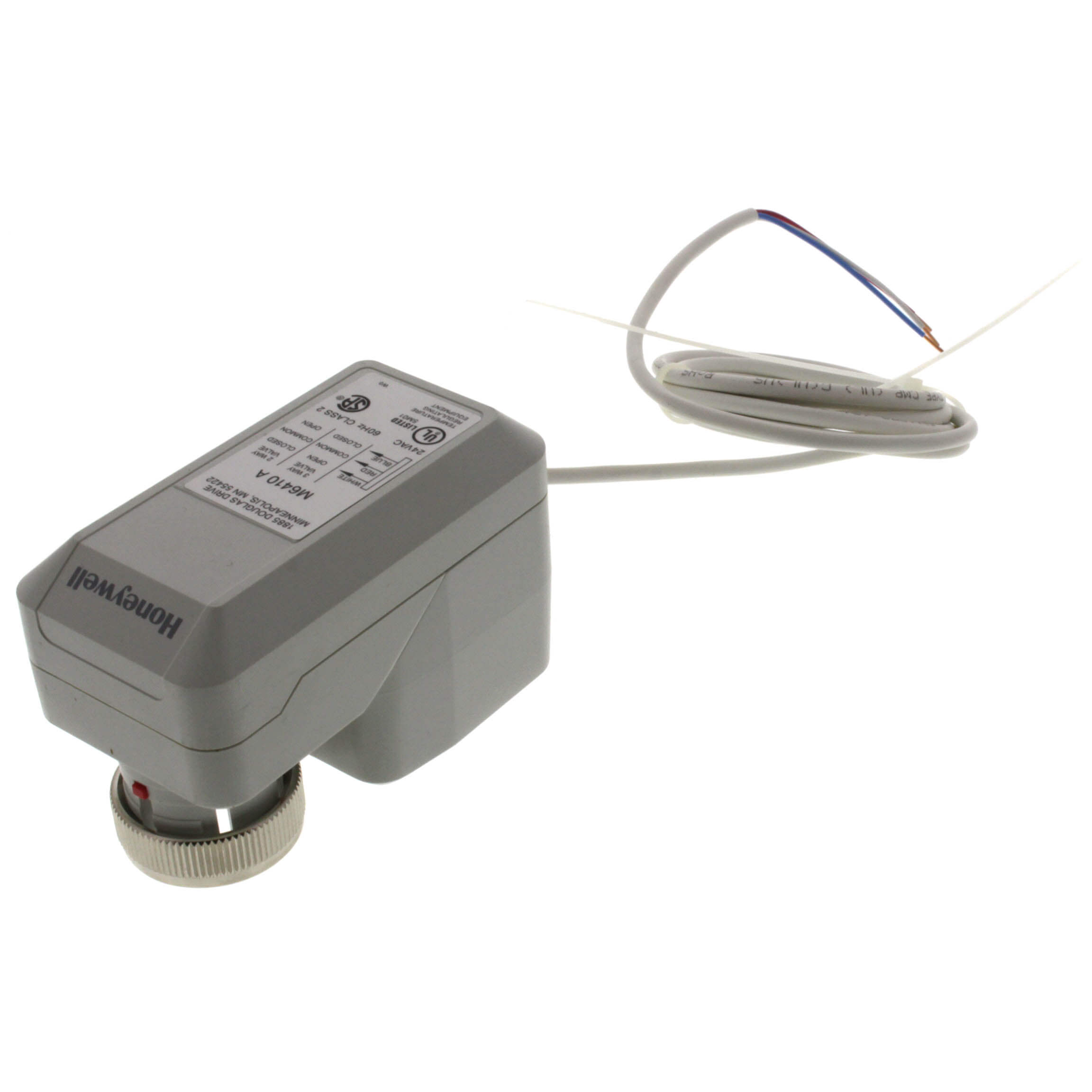

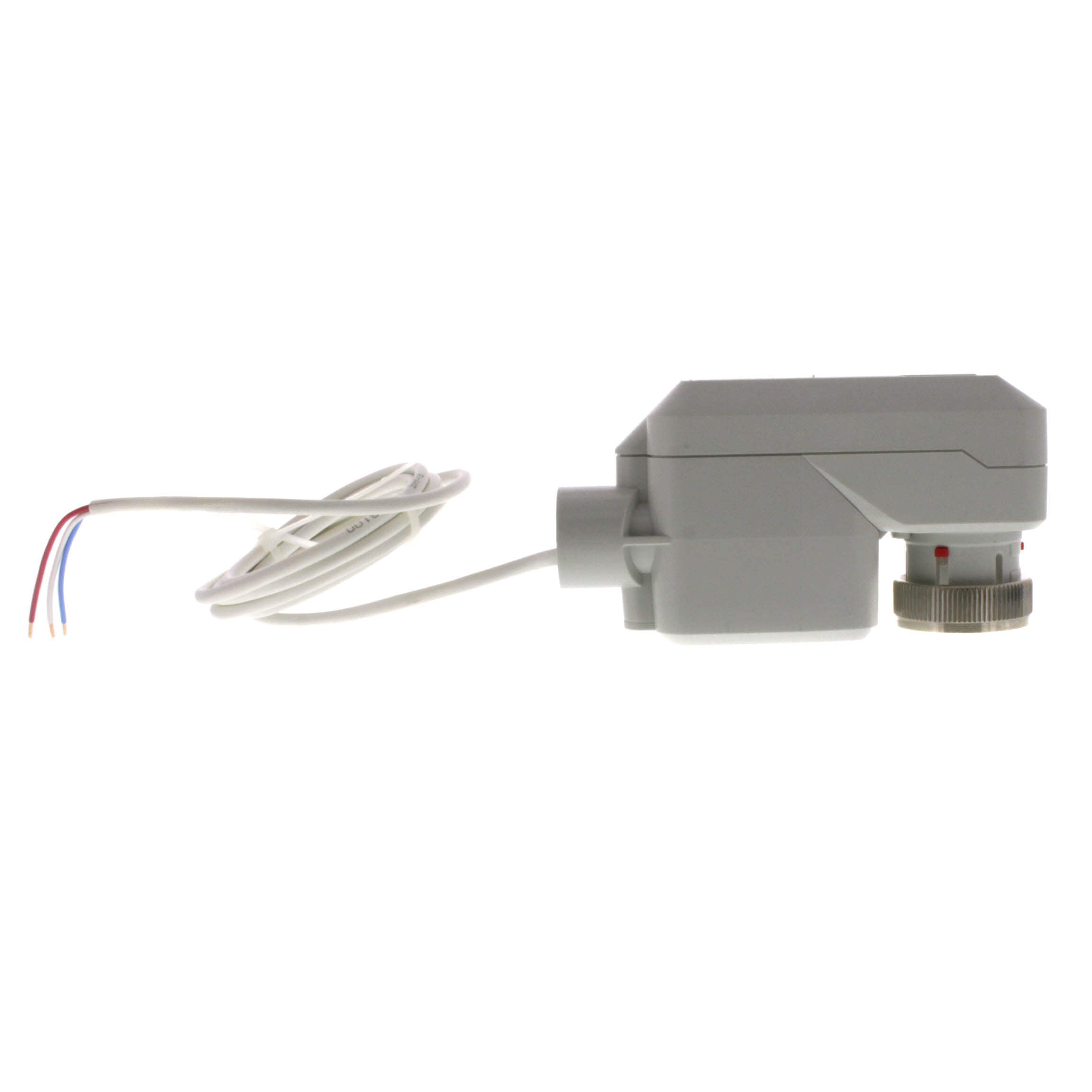

The Honeywell M6410A3017 Non-Spring Cartridge Globe Valve Actuator is designed for precise control in HVAC systems. It provides floating or modulating control of V5852 and V5862 two-way or V5853 and V5863 three-way valves. This product is compatible with a range of applications, including VAV terminal units, fan coil units, and small reheaters or recoolers.
- Floating control signal
- 125-second drive timing
- Suitable for 1 to 1-1/2 inch valves
Product Highlights
Ideal for space-constrained installations with easy mounting and maintenance-free design.
Product Information
Standard Information
-
Manufacturer: Honeywell
-
MPN: M6410A3017
Technical Specifications
-
Application: HVAC
-
Torque Rating: 67.5 lbf
-
Voltage: 24 Vac
-
Fail Safe Mode: Stays in place
-
Control Signal: SPDT, Floating
-
Manual Operation: None
-
Stroke: 1/4 inch
-
Mounting: Threads onto V58XX valve bonnet
-
Dimensions: 2 3/8 inch high x 1 15/16 inch wide x 3 15/16 inch deep
-
Medium Temperature: 266 F Maximum
-
Operating Humidity Range: 5 to 95% RH
-
Weight: 0.31 lb
-
Ingress Protection Rating: IP42
-
Electrical Protection: Class I Insulation (24 Vac)
-
Timing: 125 sec at 60 Hz
-
Used With: 1 inch to 1-1/2 inch V58XX Cartridge Globe Valves
