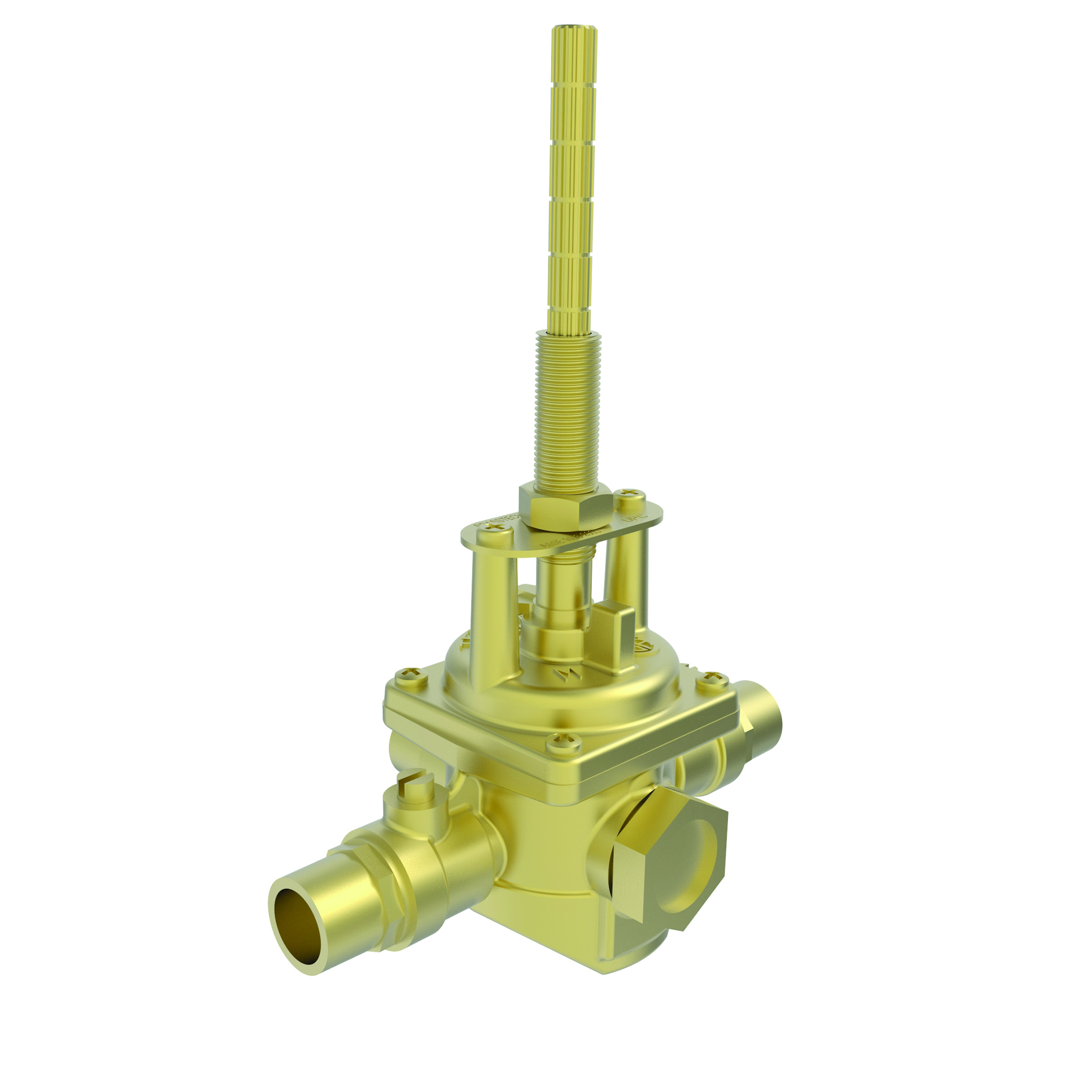

Brasstech 1-594 Balanced Pressure Shower Trim Valve

Product Description

The BRASSTECH 1-594 is a balanced pressure shower trim valve designed to maintain a consistent water temperature during use by compensating for fluctuations in hot or cold supply line pressure. Built from solid brass construction, this valve trim guards against sudden scalding or cold-water shocks when pressure changes occur elsewhere in the plumbing system. It ships without a finish applied, making it suited for installations where a specific coating or finish will be specified separately. Licensed plumbers and plumbing contractors are the typical installers for this type of pressure-balancing trim valve in residential shower and bath applications.

This trim valve is intended for residential shower and bath installations where pressure-balancing protection is required. The no-finish configuration allows it to fit within a broader range of design schemes, including traditional, transitional, and contemporary styles. It is part of the Newport Brass product family and is compatible with coordinating trim sets and collections offered across the Newport Brass line. Installers can pair this rough-in valve trim with matching Newport Brass finish trim to complete the aesthetic of the installation.

Key Features

• Balanced pressure design maintains consistent shower temperature despite supply line pressure changes
• Protects against scalding and sudden cold-water shock during use
• Solid brass construction for durability in wet environments
• No-finish configuration allows pairing with separately selected Newport Brass finish trim
• Compatible with traditional, transitional, and contemporary design collections

Compatibility

Designed for use with Newport Brass rough-in shower valve assemblies and coordinating Newport Brass trim collections available in all Newport Brass finishes and design styles.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and the International Plumbing Code (IPC). Shut off the water supply to the affected lines and relieve system pressure before beginning any trim or valve work. Do not overtighten brass fittings, as this can damage valve seats or threads. Verify rough-in depth and valve body compatibility before finalizing trim installation.

Technical Specifications

• Construction Material: Solid Brass
• Finish: No Finish
• UPC: 760724177227

Standard Information

• Brand: BRASSTECH
• Manufacturer Part Number: 1-594
