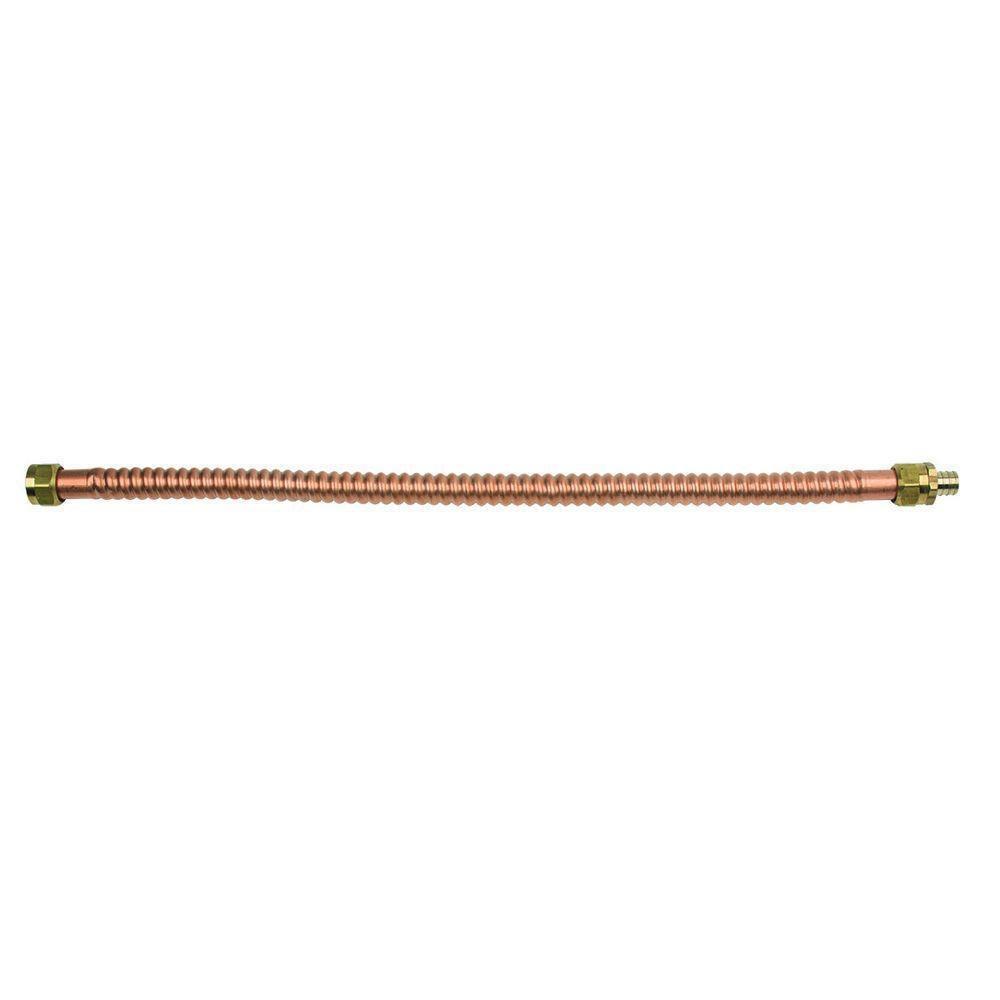

BrassCraft WB07-24 24 x 3/4 x 3/4 in. FIP x PEX Barbed Water Heater Connector

Product Description

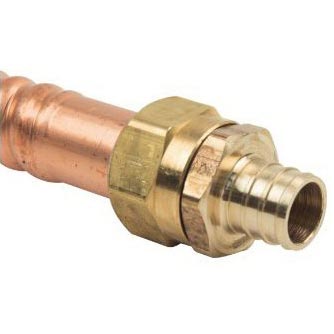

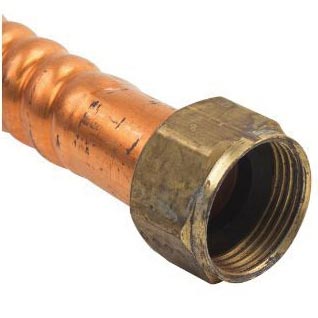

The BrassCraft WB07-24 is a water heater connector designed for use in exposed locations. This connector features a three-quarter inch female iron pipe inlet and a three-quarter inch PEX barb outlet. The integrated dielectric sleeve isolates dissimilar metals to prevent galvanic corrosion, enhancing durability.

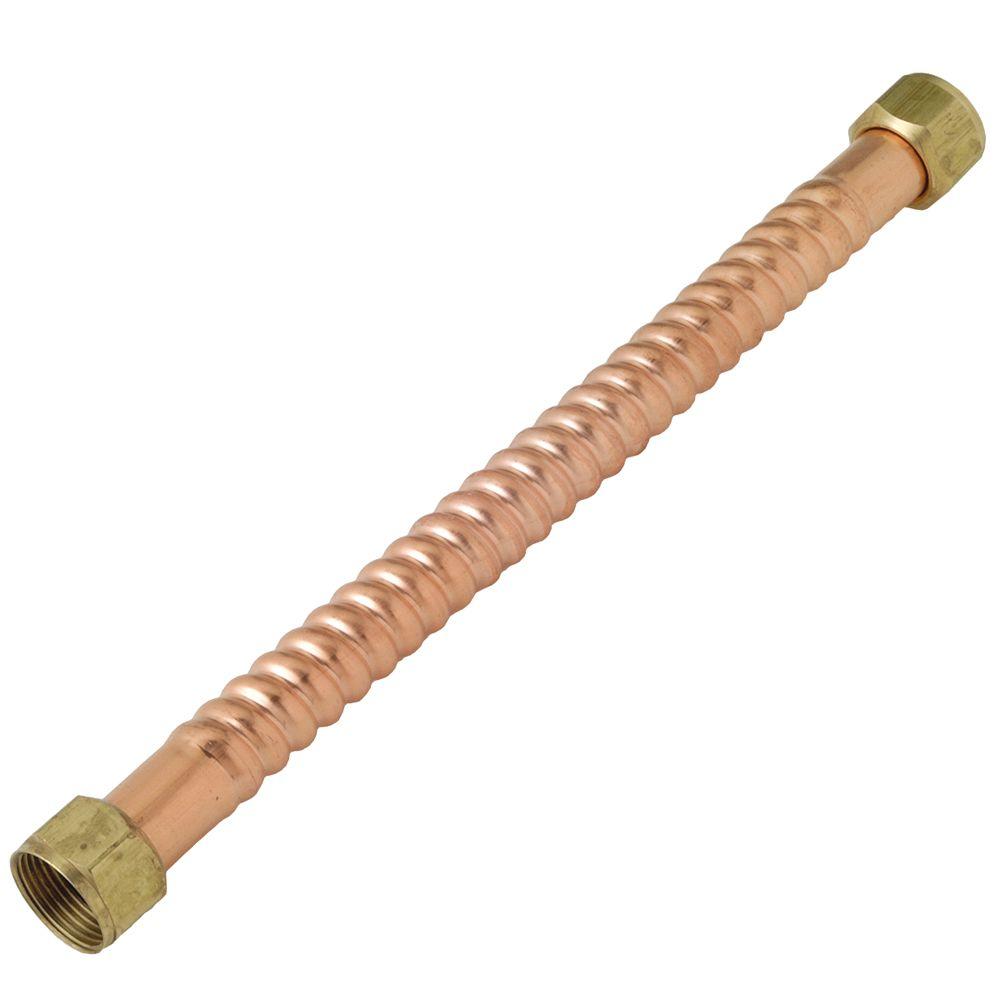

• Constructed from corrugated copper for strength.
• Rated for working pressure up to one hundred twenty-five psi.
• No additional dielectric union is needed, simplifying installation.

Product Highlights

The BrassCraft WB07-24 is ideal for connecting water heaters to water supply lines, suitable for both electric and gas models.

Product Information

Standard Information

• Application: For use in exposed locations only to connect water heaters and other water-connected devices to the water supply.
• Country of Origin: US

Technical Specifications

• End Style: FNPT x PEX Barb
• Length: 24 inches
• Material: Corrugated Copper
• Nominal Size: 3/4 inches
• Working Pressure: 125 psi
• Temperature Rating: 40 to 140 degrees F, intermittent to 180 degrees F
• Series: WB07
• Package Weight: 20.2 lb
