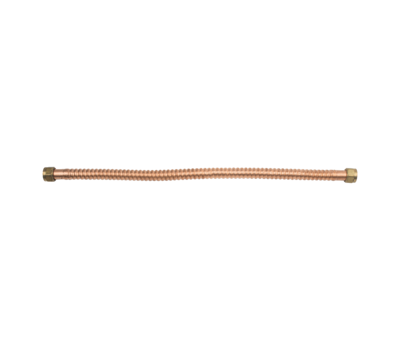

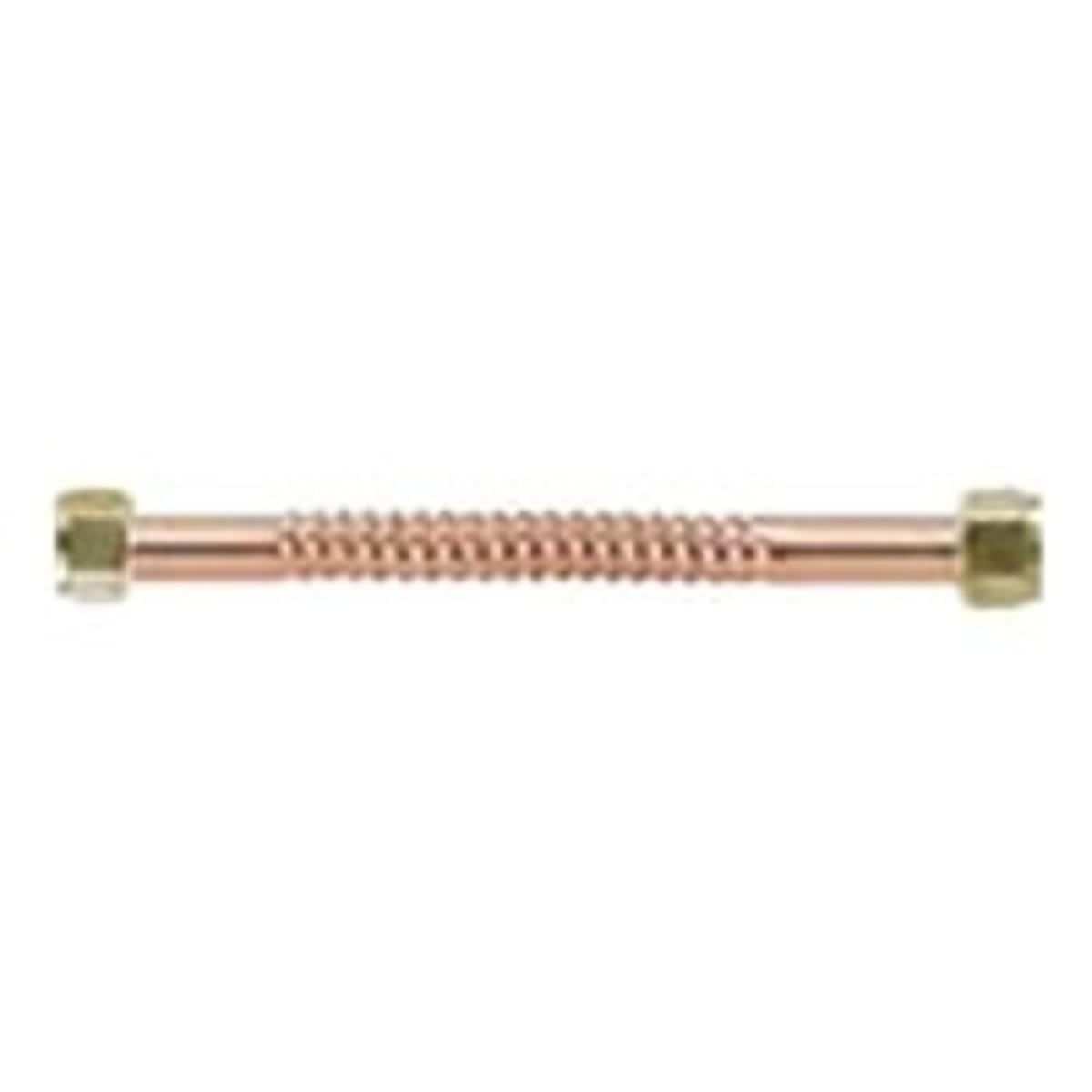

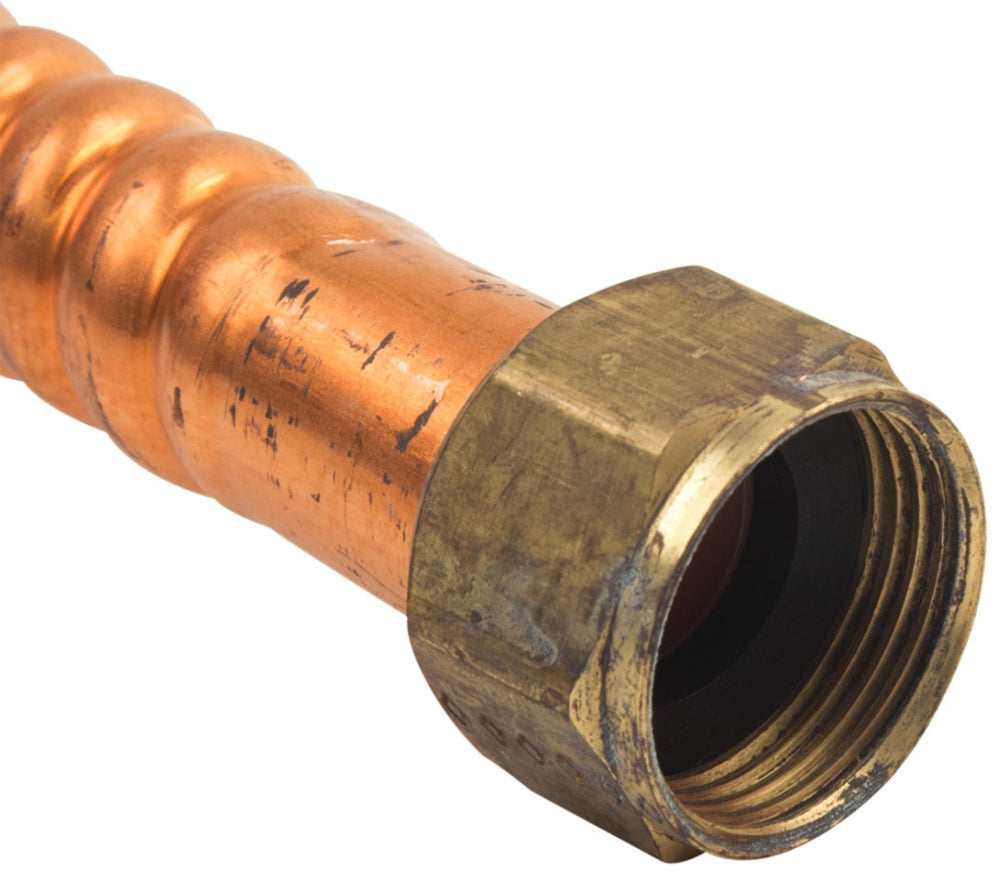

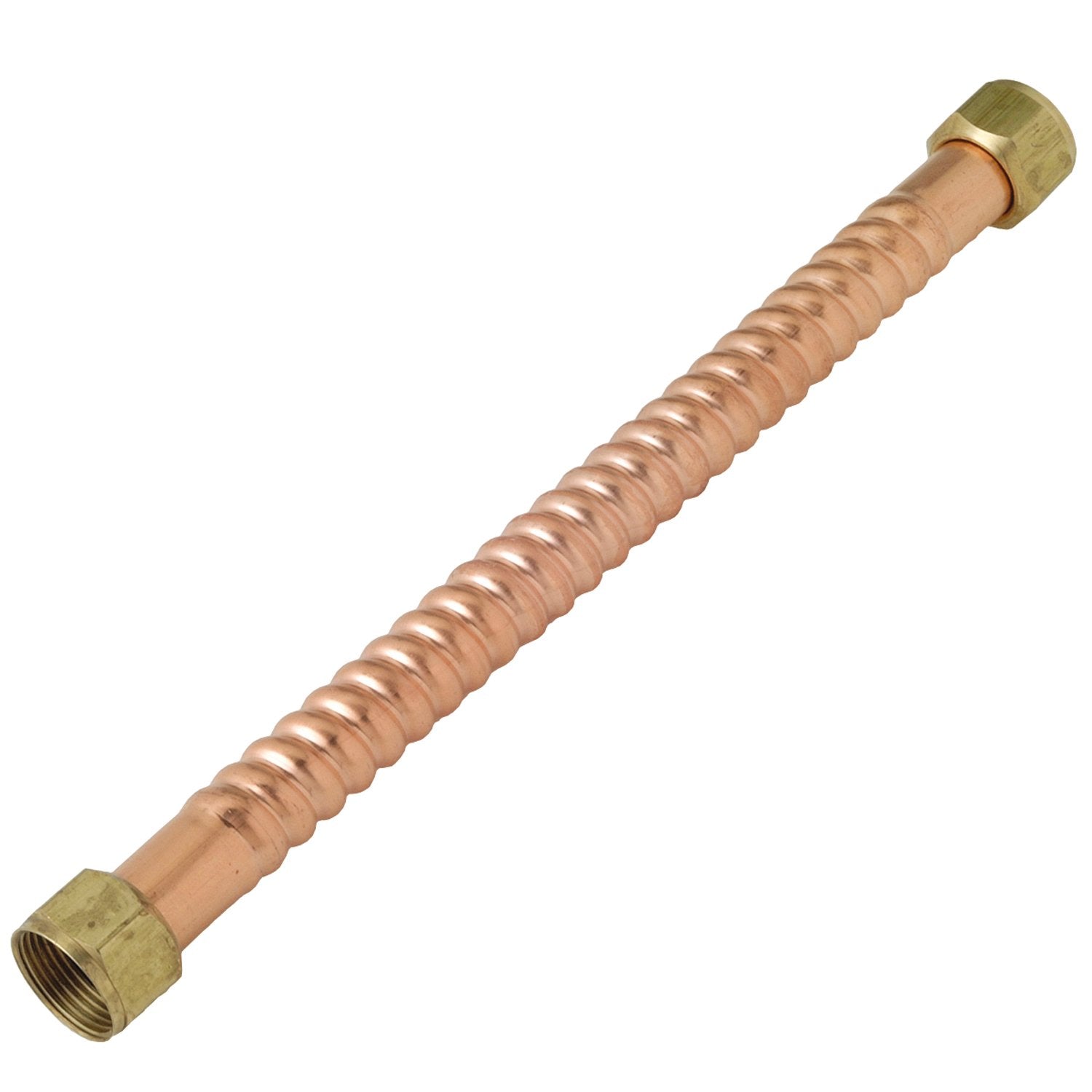

Brasscraft WB00-24N Water Heater Connector 3/4 inches x 3/4 inches 24 inches L

Product Description

The Brasscraft WB00-24N water heater connector is a flexible connector with three fourths inch female threaded connections on both ends and a length of twenty four inches. This connector is designed for use in exposed locations to link water heaters and various water-connected devices to the water supply. The lead-free copper tubing ensures safety and compliance.

• Features a patented internal dielectric sleeve to prevent galvanic corrosion.
• Integrated dielectric sleeve that negates the need for a separate dielectric union.
• Requires less torque to seal due to the pliable Nitrile rubber washer.

Product Highlights

This connector is ideal for both residential and commercial applications. Its design and materials provide a robust solution for connecting water heaters securely.

Product Information

Standard Information

• Type: Flexible, Water Heater Connector
• End Connection: 3/4 Inch Female Threaded x 3/4 Inch Female Threaded

Technical Specifications

• Outside Diameter: 7/8 Inch
• Length: 24 Inch
• Tubing Material: Copper
• End Fitting Material: Brass
• Temperature Rating: 40 to 180 Deg F
• Pressure Rating: 125 PSI
• Applicable Standard: ASME A112.18.6/CSA B125, IAPMO, UPC
• Series: WB00
• Working Pressure: 125 PSI
• Material: Corrugated Copper
• End Style: FNPT
• Connection Type: FIP
• Sub Brand: Copper-Flex
