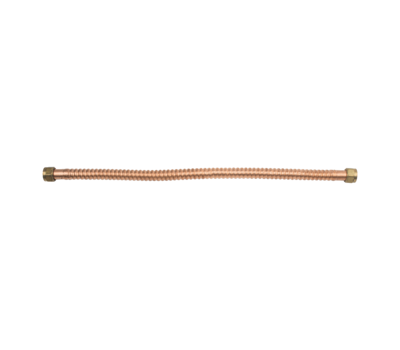

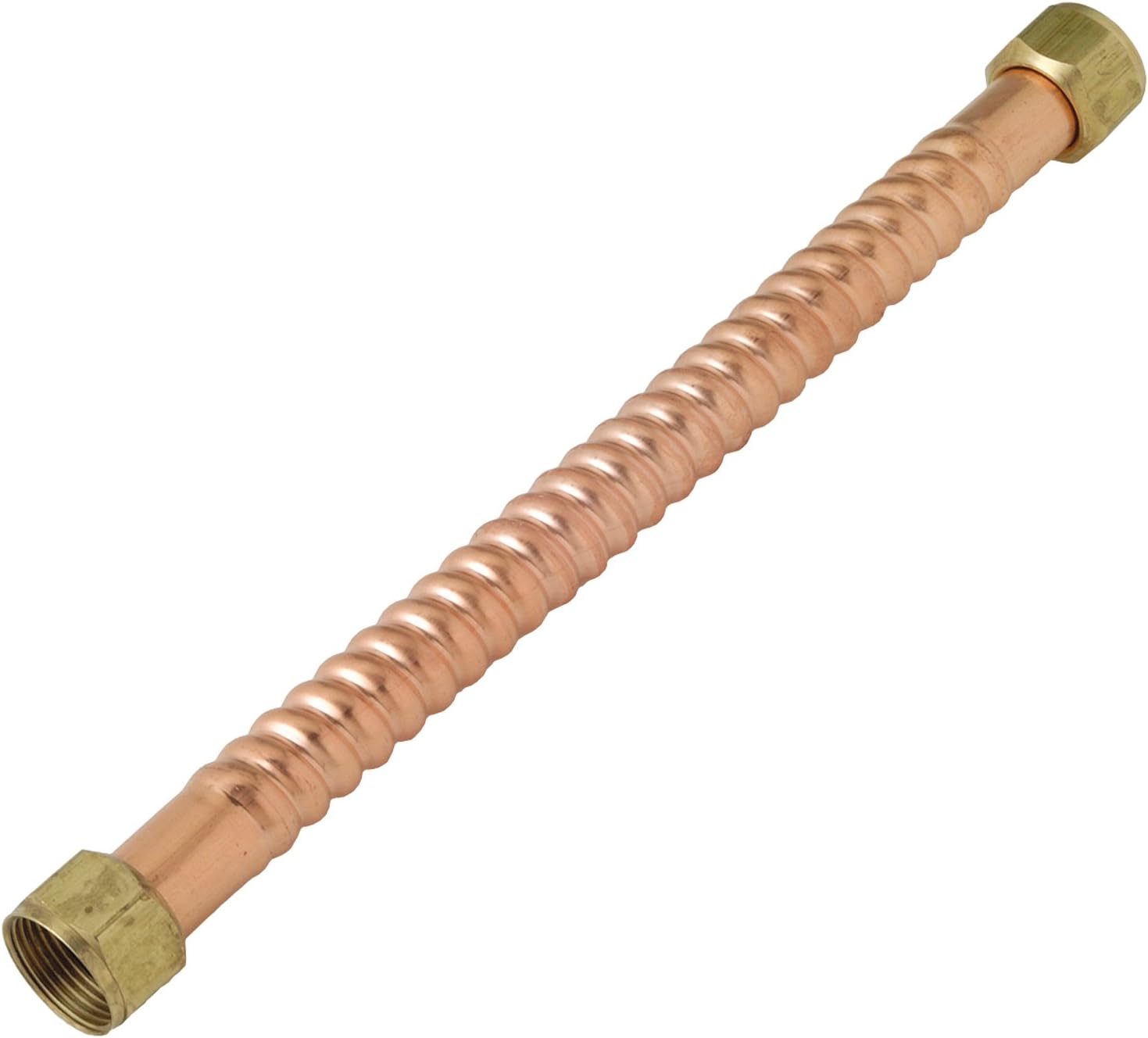

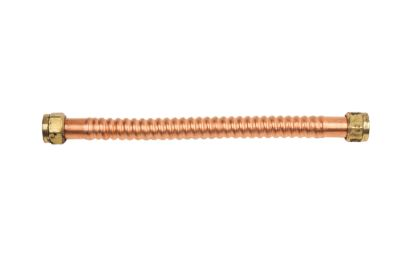

BrassCraft WB00-24N Water Heater Connector 3/4 in FIP Copper-Flex 24 in L 125 psi

Product Description

The BrassCraft WB00-24N Water Heater Connector is an essential component for connecting water heaters. This product features a flexible, corrugated copper tubing, which provides durability and ease of installation. The connector has 3/4 inch FIP connections on both ends and measures 24 inches in length.

• Flexible, corrugated copper tubing
• 3/4 inch FIP connections
• 24 inches in length

Product Highlights

Used to connect water heaters to the water supply, this BrassCraft connector has a built-in dielectric sleeve that isolates dissimilar metals to prevent corrosion. Easy to install and requires less torque, thanks to the pliable nitrile rubber washer.

Product Information

Standard Information

• Brand: BrassCraft
• Series: WB00
• UPC: 026613089348
• Part Number: WB00-24N

Technical Specifications

• Length: 24 inches
• Connection Type: FIP x FIP
• Outside Diameter: 7/8 inches
• Pressure Rating: 125 psi
• Temperature Rating: 40 to 180 degrees Fahrenheit
• Material: Copper
• End Fitting Material: Brass
• Standards/Certifications: ASME A112.18.6, CSA B125, IAPMO, UPC
