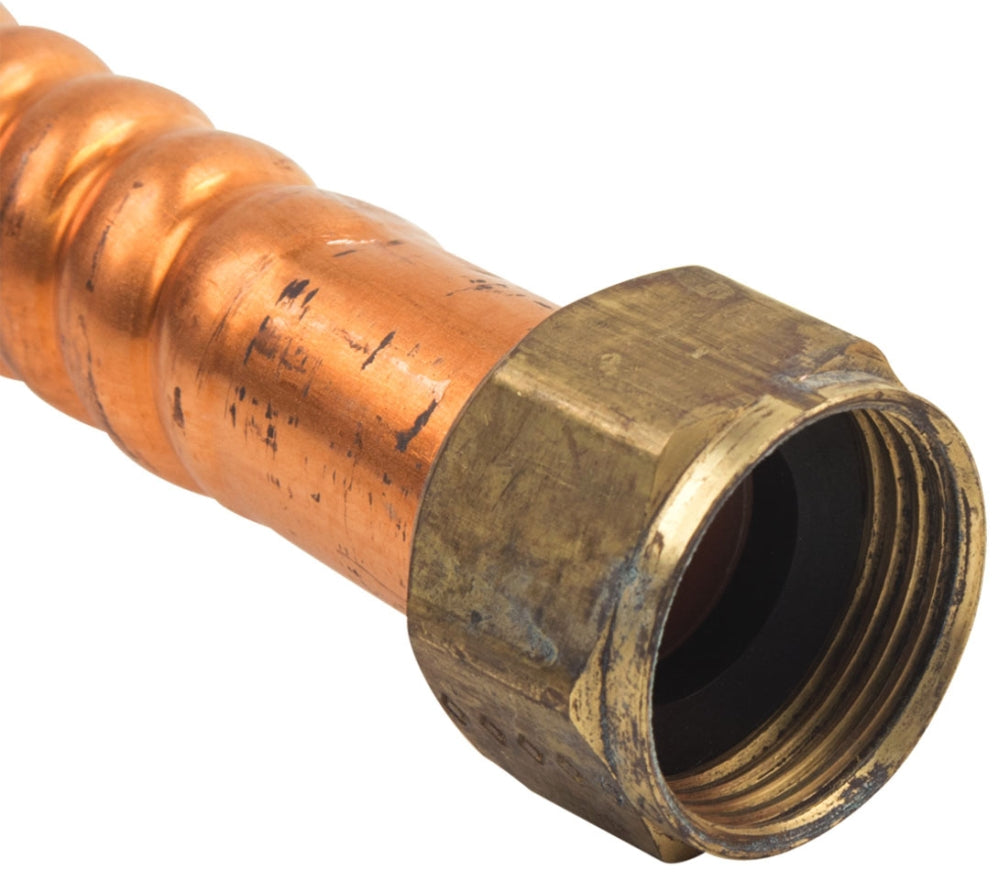

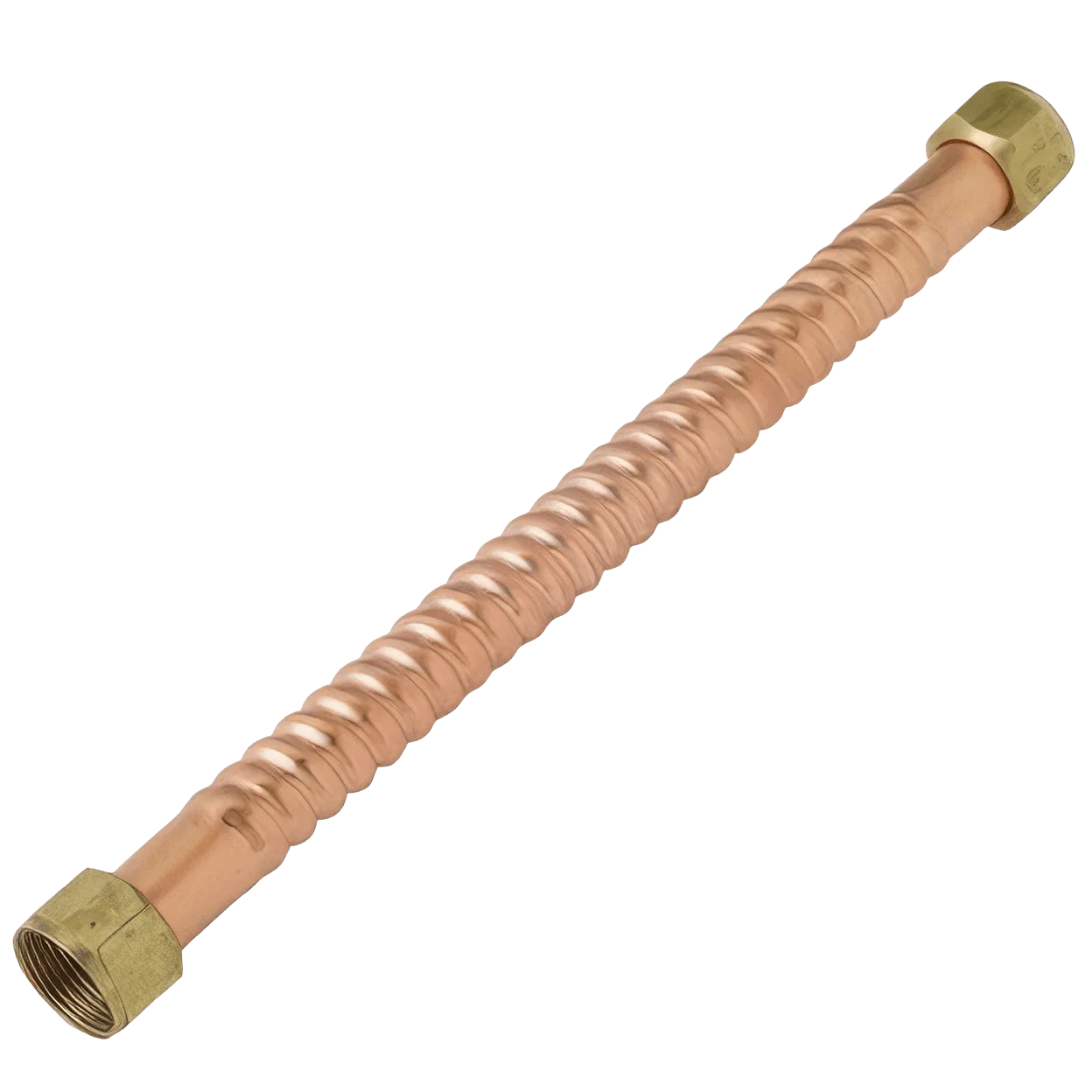

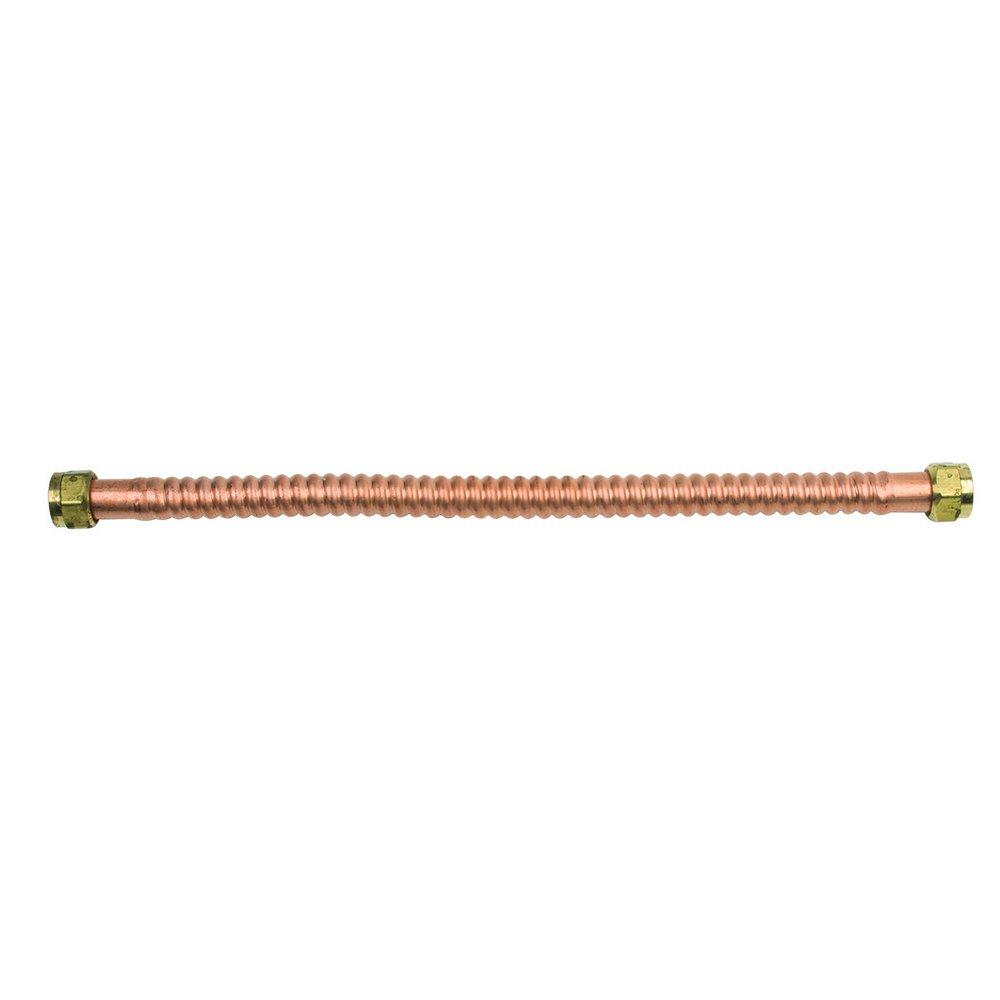

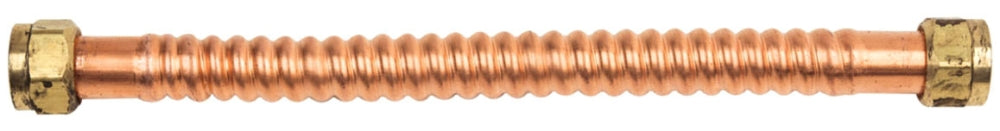

BrassCraft WB00-18N Water Heater Connector, 3/4 x 3/4, FIP x FIP, 18 in Length

Product Description

The BrassCraft WB00-18N is a plumbing component designed to connect water heaters and water-connected devices to the supply line. This water heater connector features a lead-free copper construction and is ideal for both residential and commercial applications.

• Type: Flexible, Water Heater Connector
• Length: 18 inches
• End Connection: 3/4 inch Female Threaded x 3/4 inch Female Threaded

Product Highlights

This connector is engineered for exposed locations and offers a patented internal dielectric sleeve to prevent galvanic corrosion in water systems. It simplifies installation by eliminating the need for a dielectric union, reducing time and labor costs.

Product Information

Standard Information

• Manufacturer: BrassCraft
• MPN: WB00-18N

Technical Specifications

• Material: Copper
• Pressure Rating: 125 PSI
• Temperature Rating: 40 to 180 Degrees Fahrenheit
• Applicable Standards: ASME A112.18.6/CSA B125, IAPMO, UPC
• Outside Diameter: 7/8 inch
• End Fitting Material: Brass
• Application: Residential, Commercial
