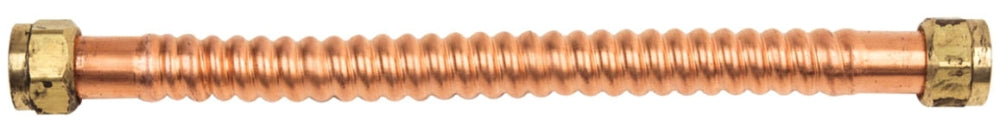

BrassCraft WB00-12N Water Heater Connector, 3/4 x 3/4 FIP x FIP, 12 inch Length

Product Description

The BrassCraft WB00-12N Water Heater Connector serves as a reliable connection between water heaters and the water supply. This connector is designed to connect 3/4 inch FIP to 3/4 inch FIP, with a length of twelve inches. Constructed from durable materials, it features an integrated dielectric sleeve for protection against galvanic corrosion.

• Integrated dielectric sleeve prevents galvanic corrosion.
• Flexible installation in exposed locations.
• Long-lasting, lead-free construction.

Product Highlights

Designed for residential and commercial use, this connector reliably connects water heaters to the water supply while ensuring compliance with applicable standards.

Product Information

Standard Information

• Brand: BrassCraft
• MPN: WB00-12N

Technical Specifications

• Nominal Size: 3/4 inch
• Connection Type: FIP x FIP
• Length: 12 inch
• Outside Diameter: 7/8 inch
• Material: Copper
• Temperature Rating: 40 to 180 Deg F
• Pressure Rating: 125 PSI
• Applicable Standard: ASME A112.18.6/CSA B125, IAPMO, UPC
