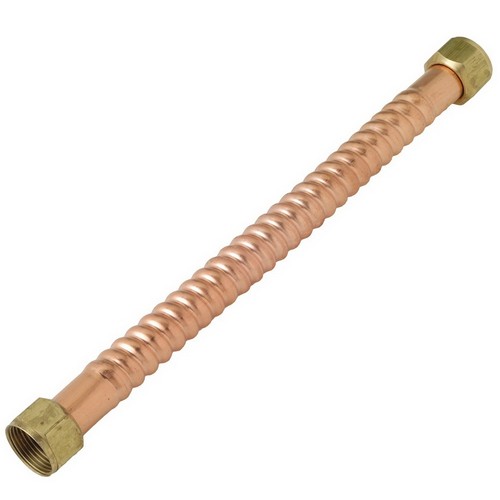

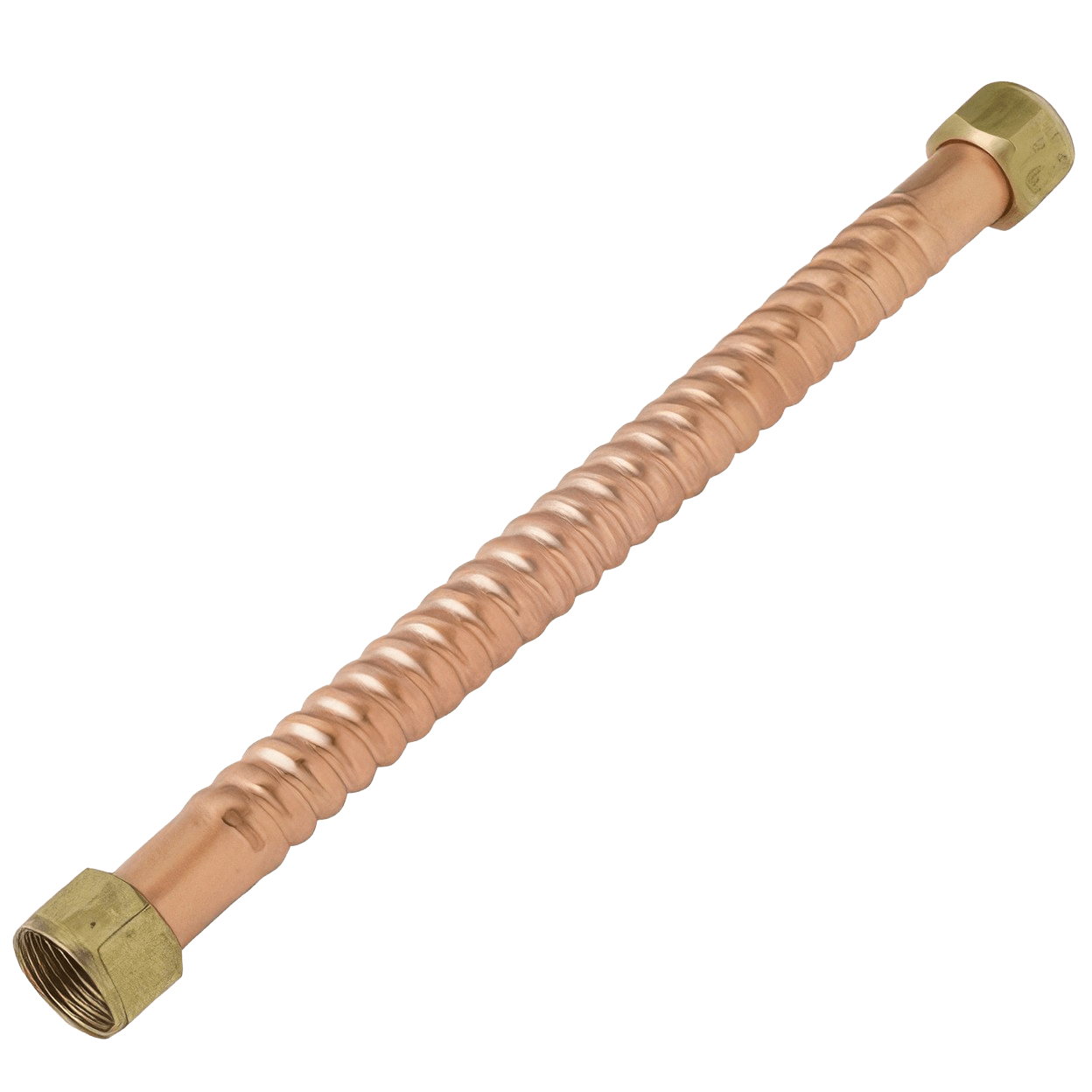

BrassCraft WB00-12 Copper-Flex Water Heater Connector 3/4 inch FIP x 3/4 inch FIP 12 inch Length

Product Description

The BrassCraft WB00-12 is a water heater connector designed for efficient hook-up of water heaters. This connector has a nominal size of three-fourths inch by three-fourths inch with FIP connections. The length is twelve inches, suitable for various configurations. Made with copper tubing, it includes a polypropylene dielectric sleeve which reduces galvanic corrosion.

• Built-in dielectric sleeve prevents corrosion.
• 12 inch length for flexible installations.
• Resistant to high pressures up to 125 psi.

Product Highlights

This connector features easy installation with no separate dielectric union needed. It is compliant with standards set by CSA, IAPMO, ASME, NSF, and SA.

Product Information

Standard Information

• Brand: BrassCraft
• MPN: WB00-12

Technical Specifications

• Connection Type: FIP x FIP
• Material: Copper Tube, Polypropylene Dielectric Sleeve, Brass Nut and End Fitting, Rubber Washer
• Pressure Rating: 125 psi
• Length: 12 inches
• Temperature Rating: 40 to 180 Degrees Fahrenheit
• Construction: Copper Tube, Polypropylene Dielectric Sleeve, Brass Nut and End Fitting, Rubber Washer
