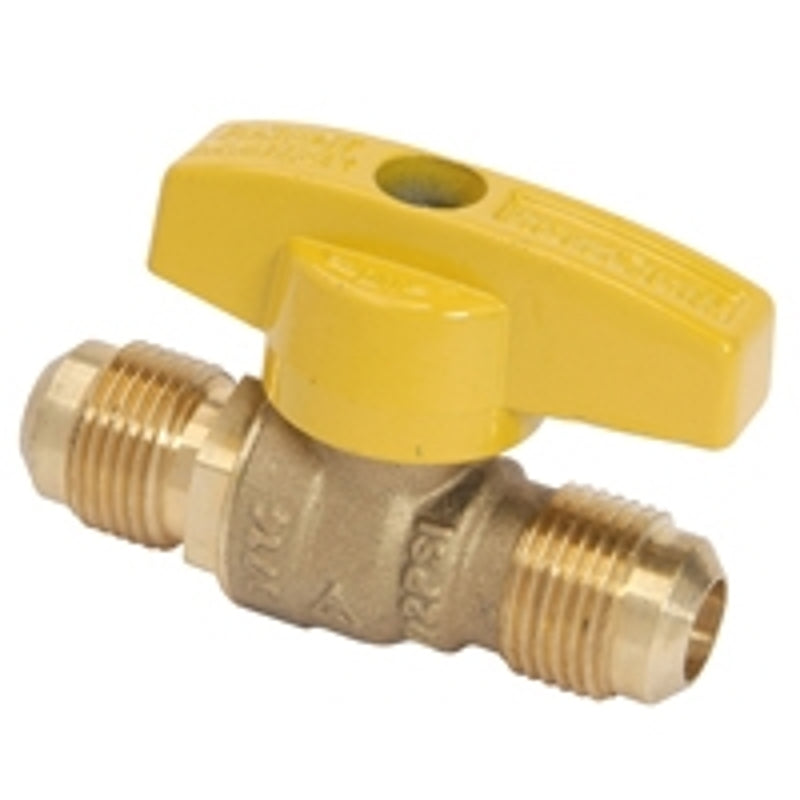

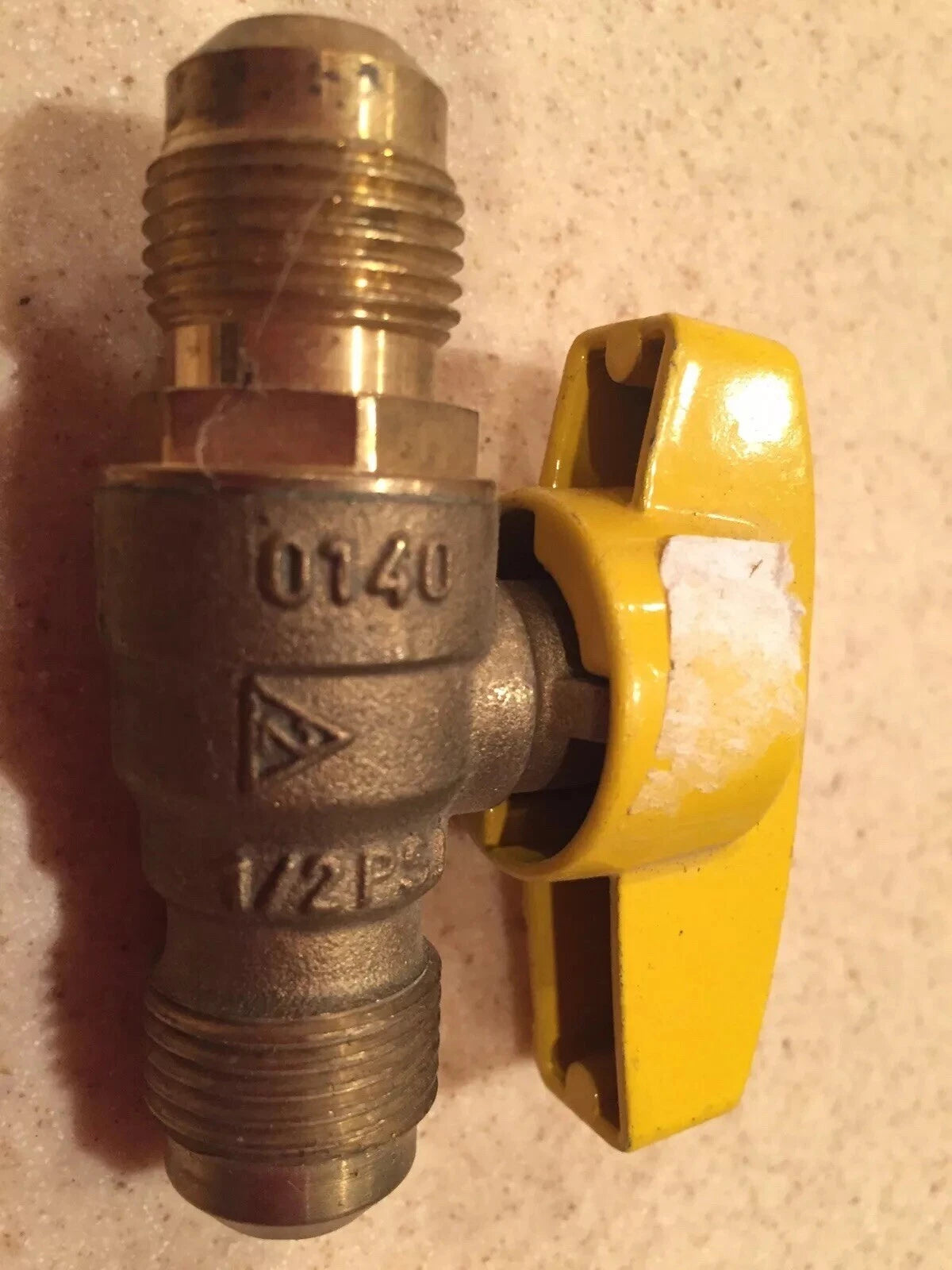

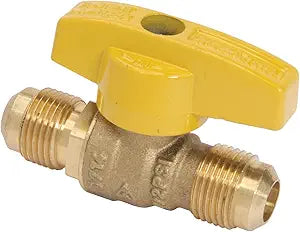

BrassCraft TBVF8 Gas Ball Valve

Product Description

The BrassCraft TBVF8 is a gas ball valve designed for effective gas line installation. This valve features a forged brass body and an extruded brass stem, ensuring durability. It requires a one-half inch OD flare nut for proper installation and is suitable for various gas types including natural, manufactured, mixed, and liquefied petroleum gases.

• Quarter-turn operation for easy use.
• PTFE seat for reliable sealing.
• Maximum pressure rating of five psi.

Product Highlights

The BrassCraft TBVF8 valve is essential for gas line systems, providing safe and efficient control of gas flow.

Product Information

Standard Information

• Brand: BrassCraft
• MPN: TBVF8

Technical Specifications

• Connection Size: 1/2 inch
• Connection Type: Flared
• Pressure Rating: 5 psi
• Body Material: Brass
• Temperature Rating: -40 to 150 degrees Fahrenheit
• Inlet to Outlet Length: 2.74 inches
• Top of Handle to Inlet Center: 1.45 inches
• Overall Length: 2.74 inches
• Material: Forged brass, zinc
• Exterior Finish: Aluminum, zinc
• Outlet Connection Type: Flare
• Item Weight: 5.6 ounces
• Dimensions: 2.74 inches L x 1.45 inches H
• Softgoods Material: PTFE/Rubber
