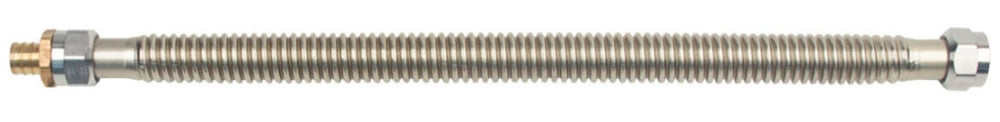

BrassCraft SWB07-18N Water Heater Connector, 3/4 x 3/4 FIP x PEX Barb, 18 L, Lead-Free

Product Description

The BrassCraft SWB07-18N is a water heater connector tube. It measures three fourths inches by three fourths inches and connects female threaded fittings to PEX barb tubes. The length of the connector is eighteen inches, designed for durability and flexibility.

• Flexible polymer blend coated stainless steel
• Pressure rating of one hundred twenty-five PSI
• Lead-free materials

Product Highlights

This connector is suitable for residential and commercial applications, positioned to deliver reliable performance under various conditions.

Product Information

Standard Information

• Brand: BrassCraft
• MPN: SWB07-18N

Technical Specifications

• Type: Flexible Water Heater Connector
• Inside Diameter: 3/4 Inch
• End Connection: 3/4 Inch Female Threaded x 3/4 Inch PEX Barb
• Length: 18 Inches
• Tubing Material: Polymer Blend Coated Stainless Steel
• End Fitting Material: Brass (Barb), Zinc Plated Brass (Nut)
• Temperature Rating: 40 to 180 Degrees Fahrenheit
• Pressure Rating: 125 PSI
• Applicable Standards: CSA, UPC, IAPMO, ASME A112.18.1/CSA B125.1
