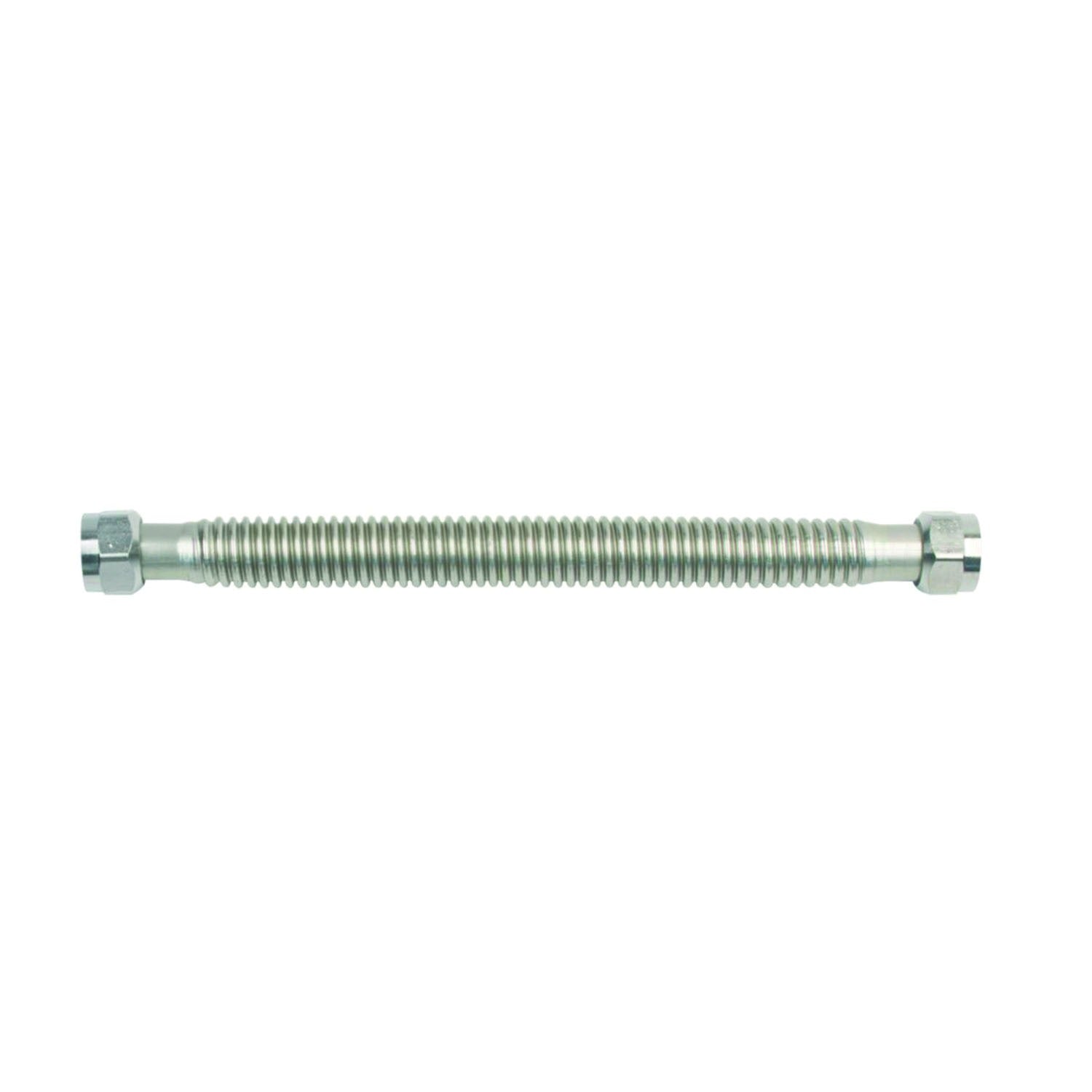

Brasscraft SWB00-24N Water Heater Connector 3/4 Fnpt 24in Ss

Product Description

The BRASSCRAFT SWB00-24N is a stainless steel flexible water heater connector designed to link a water heater to residential supply lines. It features female NPT (FNPT) end fittings on a 3/4-inch nominal diameter hose rated to 125 psi working pressure. At 24 inches in length, the connector provides enough reach to accommodate standard water heater installations with some flexibility for alignment. Stainless steel construction resists corrosion and stands up to the heat and moisture typical in water heater service. Licensed plumbers and qualified tradespeople install this connector during new water heater installations and replacement service calls.

This connector suits residential water heater applications where a flexible, corrosion-resistant supply line is required on both the hot and cold inlet and outlet ports. The 24-inch length is a common fit for utility closets, garage installations, and basement mechanical rooms where the heater sits close to overhead supply lines. The FNPT ends thread directly onto standard male-threaded water heater nipples and shutoff valve outlets without additional adapters in most residential configurations.

Key Features

• Stainless steel construction for corrosion resistance in hot and cold water service
• 3/4-inch nominal FNPT ends for direct connection to standard water heater nipples and valves
• 24-inch length accommodates typical residential water heater clearances
• 125 psi working pressure rating suitable for standard residential water supply systems
• Domestic manufacture

Compatibility

Designed as an OEM-style replacement or new-installation connector for residential water heaters with 3/4-inch male NPT inlet and outlet connections.

Installation Notes

Installation is typically performed by a licensed plumber in accordance with local plumbing codes and the International Plumbing Code (IPC). Shut off the cold water supply and relieve system pressure before disconnecting existing connectors. Apply thread sealant tape or paste to all male NPT threads before making up connections. Do not overtighten FNPT fittings, as this can crack the fitting body or damage threads.

Technical Specifications

• Nominal Size: 3/4 inch
• End Style: FNPT (Female NPT) both ends
• Length: 24 inches
• Working Pressure: 125 psi
• Material: Stainless Steel
• Origin: Domestic

Standard Information

• Brand: BRASSCRAFT
• Manufacturer Part Number: SWB00-24N
