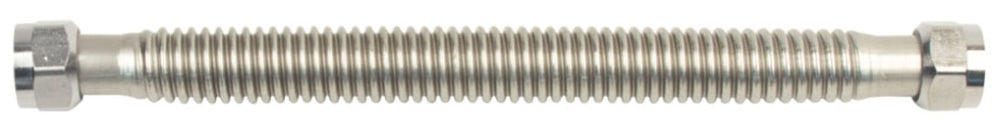

BrassCraft SWB00-12N ProCoat 3/4 FIP x 3/4 FIP x 12 Coated Stainless Steel Water Heater Connector (3/4 I.D.)

Product Description

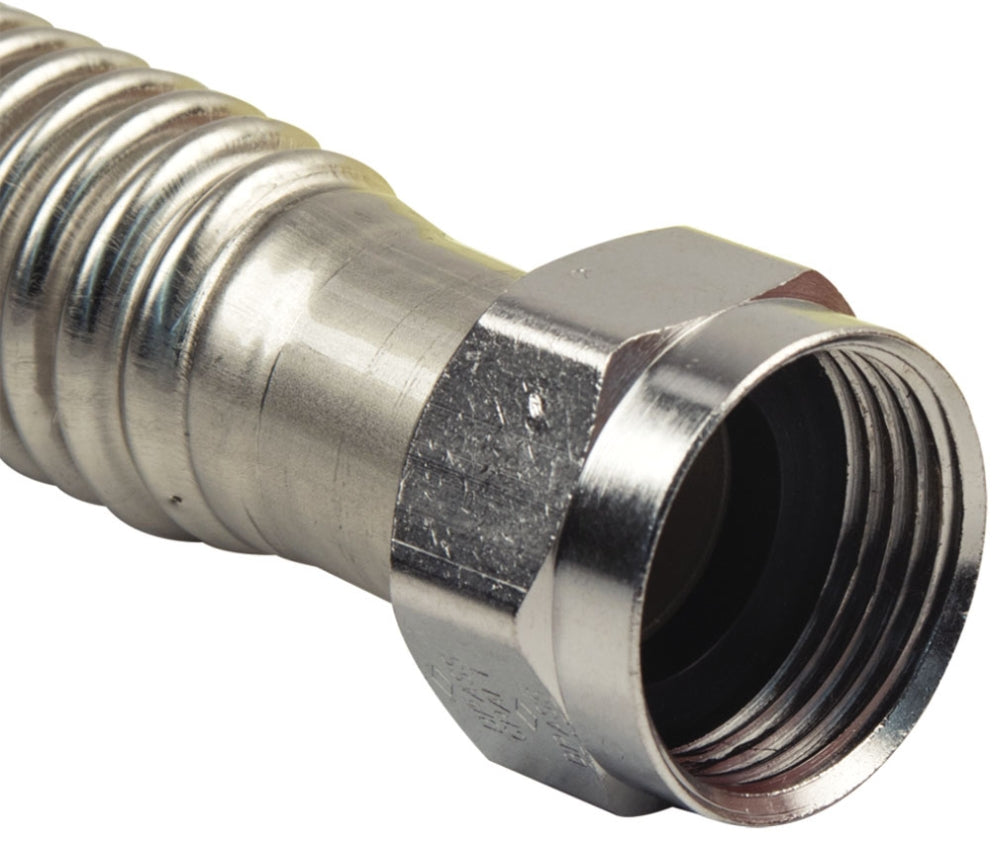

The BrassCraft SWB00-12N is a ProCoat coated stainless steel water heater connector with a 3/4 inch FIP inlet and 3/4 inch FIP outlet. This connector is designed to connect your water supply to your water heater efficiently.

• Superior flexibility
• Advanced corrosion resistance
• Integrated dielectric sleeve

Product Highlights

This water heater connector offers superior flexibility without kinking or flattening, making it ideal for tight spaces. The advanced ProCoat clear coat protects against harsh chemicals, UV rays, and salt, ensuring long-lasting durability. The integrated dielectric sleeve isolates dissimilar metals within the waterway, preventing internal corrosion and extending the life of the connector.

Product Information

Standard Information

• Brand: BrassCraft
• MPN: SWB00-12N

Technical Specifications

• Type: Flexible, Water Heater
• Inside Diameter: 3/4 inch
• End Connection: 3/4 inch Female Threaded x 3/4 inch Female Threaded
• Length: 12 inches
• Tubing Material: Stainless Steel
• End Fitting Material: Brass (Nut), Polypropylene (Dielectric Sleeve)
• Temperature Rating: 40 to 180 degrees Fahrenheit
• Pressure Rating: 125 PSI
• Inclusions/Features: Rubber Washer
• Applicable Standard: ASME A112.18.6/CSA B125.6, IAPMO, UPC
• Lead-Free: Yes
• Application: Potable Water Distribution System, Residential, Commercial
