Brasscraft STR19X C Str19 Series Angle Supply Stop Valve 1/2 in x 3/8 in

Product Description

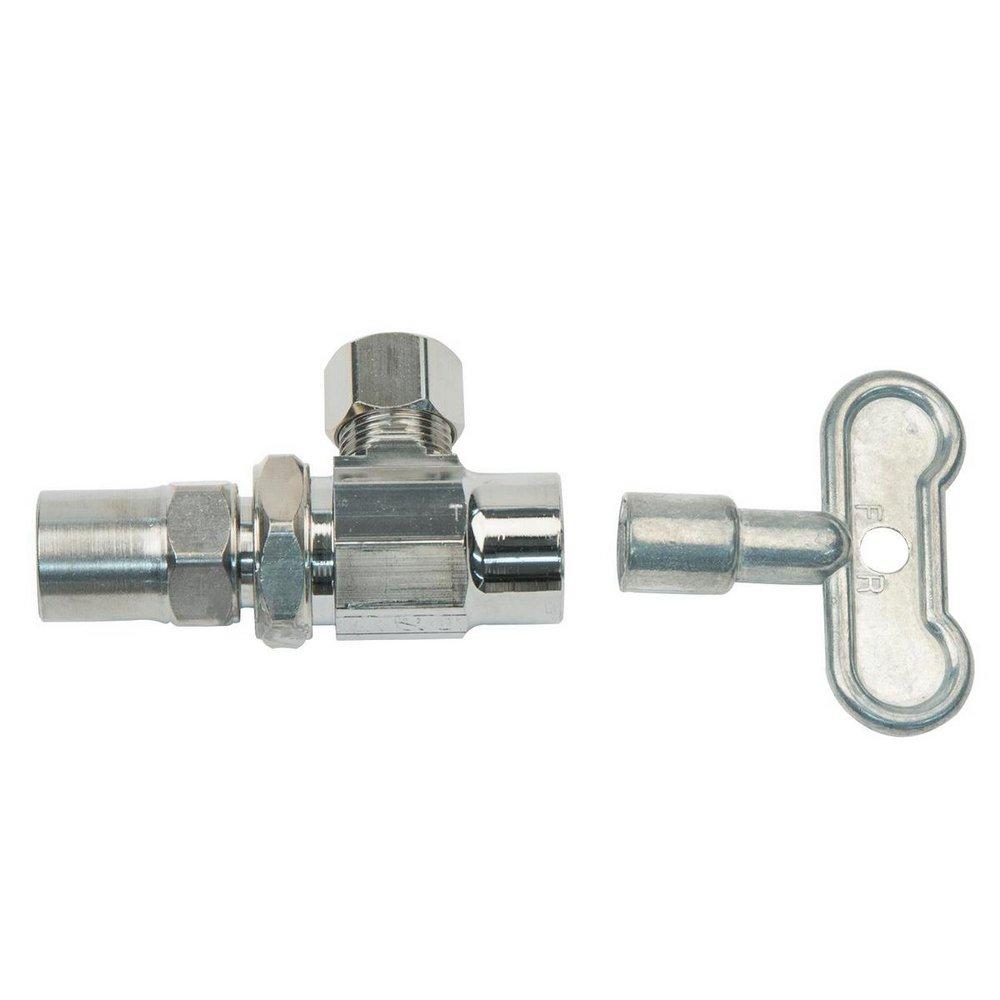

The BRASSCRAFT STR19X C is a Str19 Series Angle Supply Stop Valve with a 1/2 in x 3/8 in size. It features a machined, one-piece body construction for strength and durability. Compatible with copper or PEX pipe, it's designed for potable water distribution systems. The lockshield helps prevent tampering.

• Machined, one-piece body construction for strength, durability and long-lasting performance
• Compatible with copper or PEX pipe (PEX installations require a stainless steel tube insert, not included)
• For use in potable water distribution systems. Not intended for recirculating water systems that produce continuous use temperatures above 115 series ball stops.
• Lockshield feature helps protect against tampering and accidental activation; includes loose key

Product Highlights

Durable angle supply stop valve with lockshield and multi-turn handle.

Product Information

Standard Information

• Brand: BRASSCRAFT
• Manufacturer Part Number: STR19X C
• Country of Origin: Domestic

Technical Specifications

• ANSI: ANSI 372, ANSI 61
• ASME: ASME A112.18.1
• ASTM: ASTM F-1807, ASTM F-876, ASTM F-877
• CSA Certified: CSA B125.1
• Collection: STR19 Series
• Color Finish Category: Chromes
• Color Finish Name: Chrome Plated
• End Connection 1: Sweat
• End Connection 2: OD Compression
• End Connections: Sweat x OD Compression
• Handle Material: Zinc Die Cast
• Handle Type: Loose Key
• IAPMO Listed: Yes
• Lead Law Compliance Level: Lead Law Compliant and Certified
• Lead Law Compliant: Yes
• Material: Brass
• Maximum Temperature: 160
• Minimum Temperature: 40
• NSF: NSF 372, NSF 61
• NSF Certified: Yes
• Origin: Domestic
• Pressure - High: 125
• Recommended Valve Application: Potable Water, Residential, Commercial
• Temperature Range: 40 to 160 Deg F
• UL Listed: No
• Valve Body Material: Brass
• Valve Body Style: 1 piece
• Valve Operator: Multi-Turn Handle
• Valve Size: 1/2 in x 3/8 in
• Valve Type: Angle Supply Stop Valve
