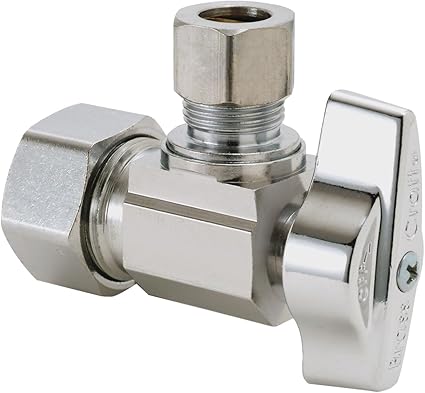

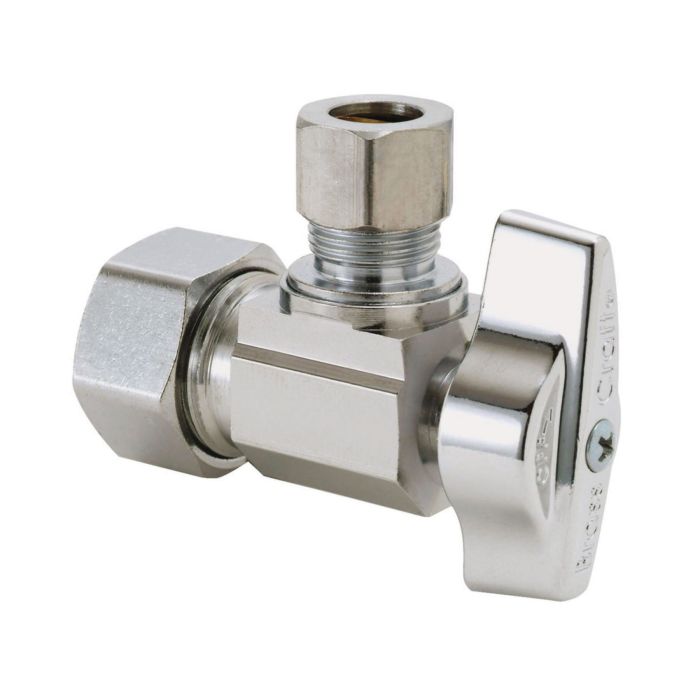

Brasscraft STCR19X C Angle Stop with Lock Shield 1/2 inches Nominal X 3/8 inches Od Comp

Product Description

The BRASSCRAFT STCR19X C Angle Stop with Lock Shield features a 1/2" nominal x 3/8" OD compression. Features include 1/4-turn on/off for easy, smooth operation and high-performance PTFE seats that provide corrosion resistance and a watertight seal. The precision-machined brass ball also resists corrosion and ensures ease of operation.

• 1/4-Turn on/off for easy, smooth operation
• High performance PTFE seats provide corrosion resistance, watertight seal and ease of use
• Precision-machined brass ball resists corrosion; ensures ease of operation

Product Highlights

This angle stop provides uncompromising quality, dependability, and innovation. Plumbers have trusted BrassCraft products for more than 65 years.

Product Information

Standard Information

• Brand: BRASSCRAFT
• Manufacturer Part Number: STCR19X C
• Country of Origin: Domestic

Technical Specifications

• Material: Brass
• Number of Handles: 1
• Measurement System: inch
• Batteries Included?: No
• Batteries Required?: No
• Included Components: Pipe and Conduit, pipe-fittings, Rough Plumbing
• Exterior Finish: Chrome,Brass
• Outlet Connection Type: NPT
• Maximum Operating Pressure: 125 Pound per Square Inch
• Number of Ports: 2
• Outlet Connection Size: 0.5 Inches
• Specification Met: NSF/ANSI 61, NSF/ANSI 372
• Number of Packs: 1
• Size: 1/2" comp x 3/8" comp
• Brand: BrassCraft
• Body Material: Brass
• Nominal Size: 1/2 x 3/8 in
• Pressure Rating: 125 psi
• Finish: Polished Chrome
• Type: 1/4 Turn
• Media: Water
• Trim Material: Brass
• Softgoods Material: FKM/Nitrile Stem O-Ring
• Temperature Rating: 40 to 180 deg F
• Manufacturer: BrassCraft Manufacturing
