Brasscraft Scr1912dlx C Angle Closet Supply Kit

Product Description

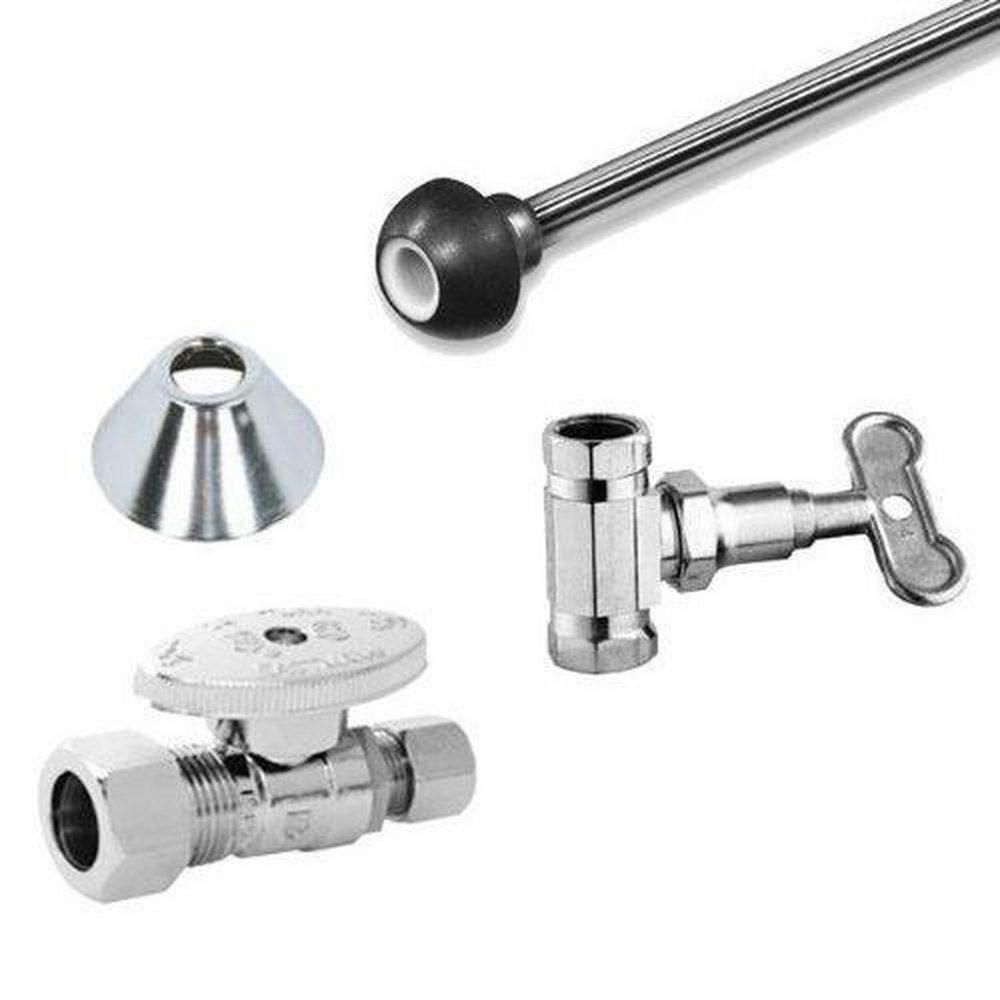

The BRASSCRAFT scr1912dlx c is an angle closet supply kit designed to connect a water supply line to a toilet or similar fixture in residential and light commercial plumbing applications. This kit features a 1/2 inch nominal compression inlet and a 3/8 inch OD outlet, providing a reliable transition between the supply stub-out and the fixture supply tube. The loose key design allows the shutoff valve to be operated with a separate key rather than an integrated handle, a configuration commonly specified in commercial restrooms or vandal-resistant installations. Licensed plumbers and experienced DIYers install this type of fitting as part of toilet rough-in and fixture trim-out work.

This angle closet supply kit is suited for toilet and bidet supply connections where a 1/2 inch nominal compression supply stub-out and a 3/8 inch OD supply tube are present. The angled valve body routes the supply line from a wall stub-out toward the fixture shutoff and fill valve inlet. The loose key configuration is often selected in facilities management, multi-tenant residential, or commercial restroom buildouts where controlled valve access is preferred.

Key Features

• Angle valve body routes supply line from wall stub-out at 90 degrees to fixture connection
• 1/2 inch nominal compression inlet fits standard copper or CPVC supply stub-outs
• 3/8 inch OD outlet connects to standard toilet and fixture supply tubes
• Loose key operation provides controlled shutoff access without a permanent handle
• Kit format supplies the valve and associated fittings needed for a complete closet supply connection

Compatibility

Designed as an OEM-style replacement or new-installation fitting for standard residential and light commercial angle stop applications requiring a 1/2 inch nominal compression inlet and a 3/8 inch OD outlet.

Installation Notes

Installation should be performed by a licensed plumber or qualified tradesperson in accordance with local plumbing codes and the International Plumbing Code (IPC). Shut off the main water supply and relieve line pressure before beginning disassembly or installation. Ensure compression fittings are seated squarely and tightened to hand-tight plus a moderate quarter to half turn with a wrench — do not over-tighten compression connections, as this can crack the ferrule or fitting body. Inspect for leaks at both the inlet compression connection and the outlet fitting after restoring water pressure.

Technical Specifications

• Inlet Size: 1/2 inch nominal compression
• Outlet Size: 3/8 inch OD
• Valve Type: Angle stop
• Handle Type: Loose key
• Valve Orientation: Angle (90 degree)

Standard Information

• Brand: BRASSCRAFT
• Manufacturer Part Number: scr1912dlx c
