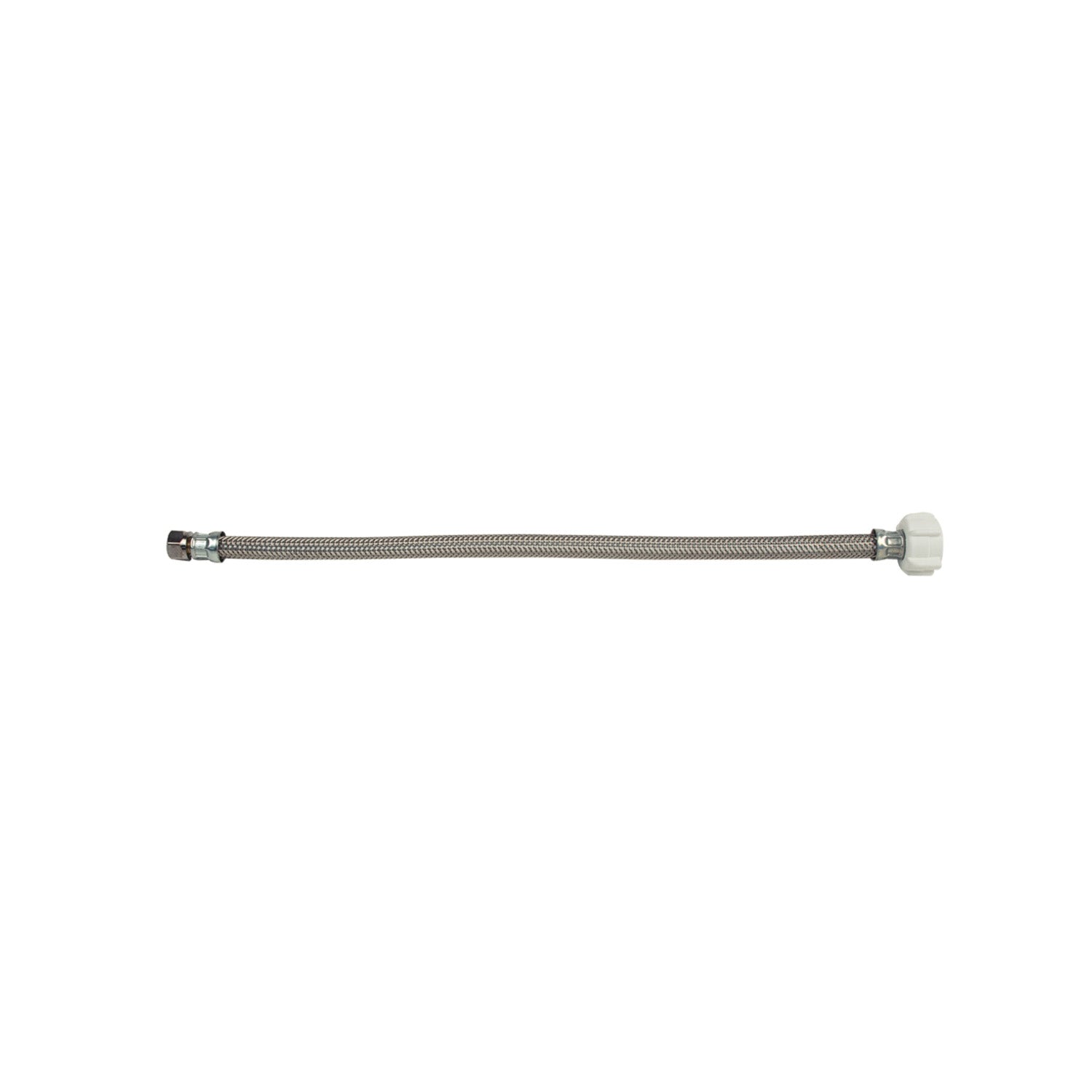

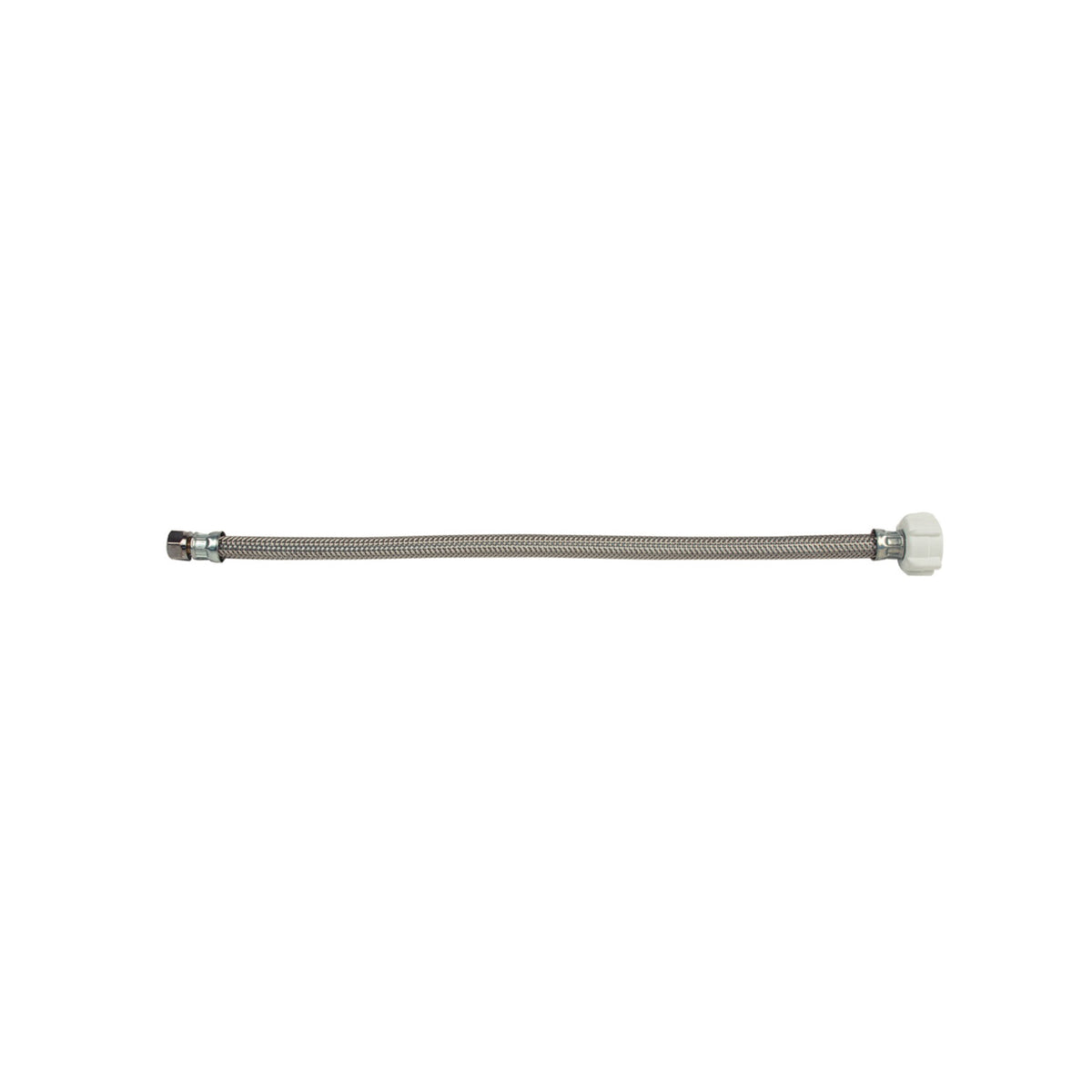

BrassCraft S1-20DLF Flexible Braided Water Toilet Connector 3/8 x 7/8 in Compression x Ballcock

Product Description

The BrassCraft S1-20DLF is a flexible braided water toilet connector designed for use in potable water systems. It features a three-eighths inch compression inlet and a seven-eighths inch ballcock nut outlet. The connector is twenty inches long and is capable of withstanding a working pressure of one hundred twenty-five psi.

• Durable construction suitable for drinking water
• Easy installation without cutting or soldering
• Reinforced with stainless steel for strength and reliability

Product Highlights

This flexible water connector provides a secure and dependable connection for toilet water supply, ensuring it can handle both high and low-temperature ranges.

Product Information

Standard Information

• Brand: BrassCraft
• Part Number: B0302

Technical Specifications

• Domestic/Import: Domestic
• End Style: Compression x Ballcock
• Inside Diameter: 0.3 in
• Length: 20 in
• Material: Stainless Steel
• Nominal Size: 3/8 x 7/8 in
• Outside Diameter: 0.55 in
• Series: S1-DL
• Temperature Rating: 40 to 140 deg F
• Type: Flexible
• Working Pressure: 125 psi
