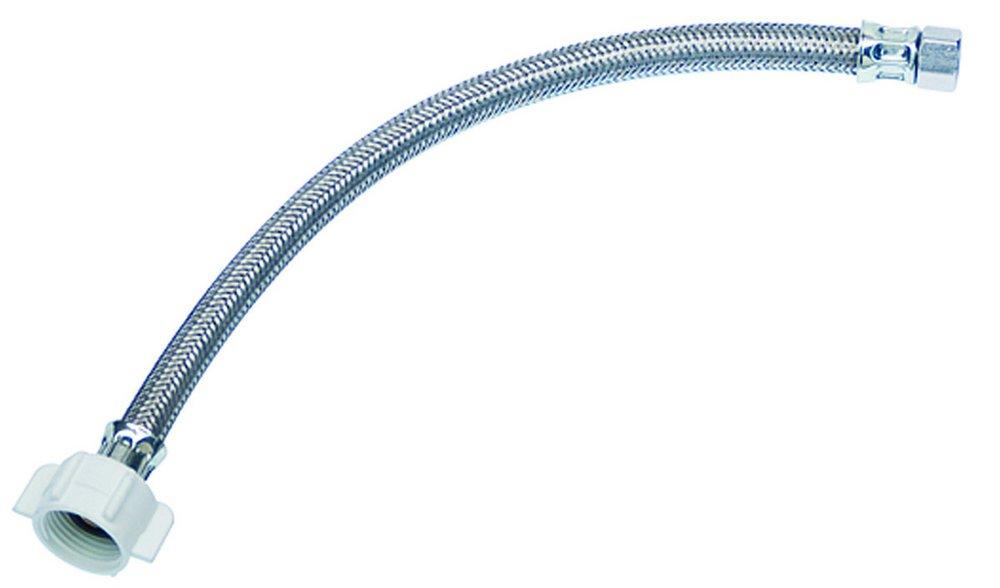

Brasscraft S1-12DL F Speedi Plumb Braided Stainless Toilet Flexible Water Connector 3/8 Inches X 7/8 Inches X 12 Inches

Product Description

The BrassCraft S1-12DL F is a braided stainless steel flexible water connector designed for toilet supply line installations in residential and commercial plumbing systems. Part of the Speedi Plumb collection, this connector measures 3/8 inches on one end and 7/8 inches on the other, with an overall length of 12 inches. It is built for use in potable water distribution systems in accessible locations, making it a reliable choice for licensed plumbers and skilled DIY professionals who need a dependable, code-compliant toilet supply connector. The flexible design eliminates the need for cutting or soldering during installation, saving time on the job and reducing the risk of installation errors. One end features a compression fitting at 3/8 inches, while the other end uses a ballcock connection at 7/8 inches, matching standard toilet fill valve inlets found across most residential toilet models. The outer hose is constructed from braided stainless steel, which resists corrosion, kinking, and physical damage in tight cabinet spaces under toilet tanks. An eight-sided pneumatic crimp at both ends ensures a secure, leak-free nut-to-hose connection that holds up under normal water pressure conditions. This connector is rated for a maximum working pressure of 125 psi and a temperature range of 40 degrees Fahrenheit to 140 degrees Fahrenheit, covering standard cold water supply line conditions. It carries NSF 51 certification and meets ASME A112.18.6 and CSA B125.6 standards, confirming its suitability for potable water contact applications. Plumbers, contractors, and maintenance technicians rely on braided stainless toilet connectors like this one for their strength, flexibility, and long service life compared to plastic or unbraided alternatives.

• Braided stainless steel outer hose resists corrosion, kinking, and abrasion for long-term durability
• Eight-sided pneumatic crimp provides a secure, leak-resistant nut-to-hose connection at both ends
• No cutting or soldering required — compression x ballcock ends install quickly on standard toilet supply lines

Product Highlights

The BrassCraft S1-12DL F Speedi Plumb connector delivers a fast, code-compliant toilet supply line connection with braided stainless construction and NSF 51 certification for potable water use.

Product Information

Standard Information

• Brand: BRASSCRAFT
• Manufacturer Part Number: S1-12DL F

Technical Specifications

• Collection: Speedi Plumb
• End Connection 1: Compression
• End Connection 2: Ballcock
• Fitting Size 1: 3/8 inches
• Fitting Size 2: 7/8 inches
• Length: 12 inches
• Outer Hose Material: Braided Stainless Steel
• Maximum Pressure: 125 psi
• Maximum Temperature: 140 degrees Fahrenheit
• NSF Certified: Yes
• NSF Standard: NSF 51
• ASME Standard: ASME A112.18.6
• CSA Certified: CSA B125.6
• Color Finish: Stainless Steel
