BrassCraft R1701LRX R1 1/2 x 3/8 x 3/8 in. FIPT x OD Compression x OD Compression

Product Description

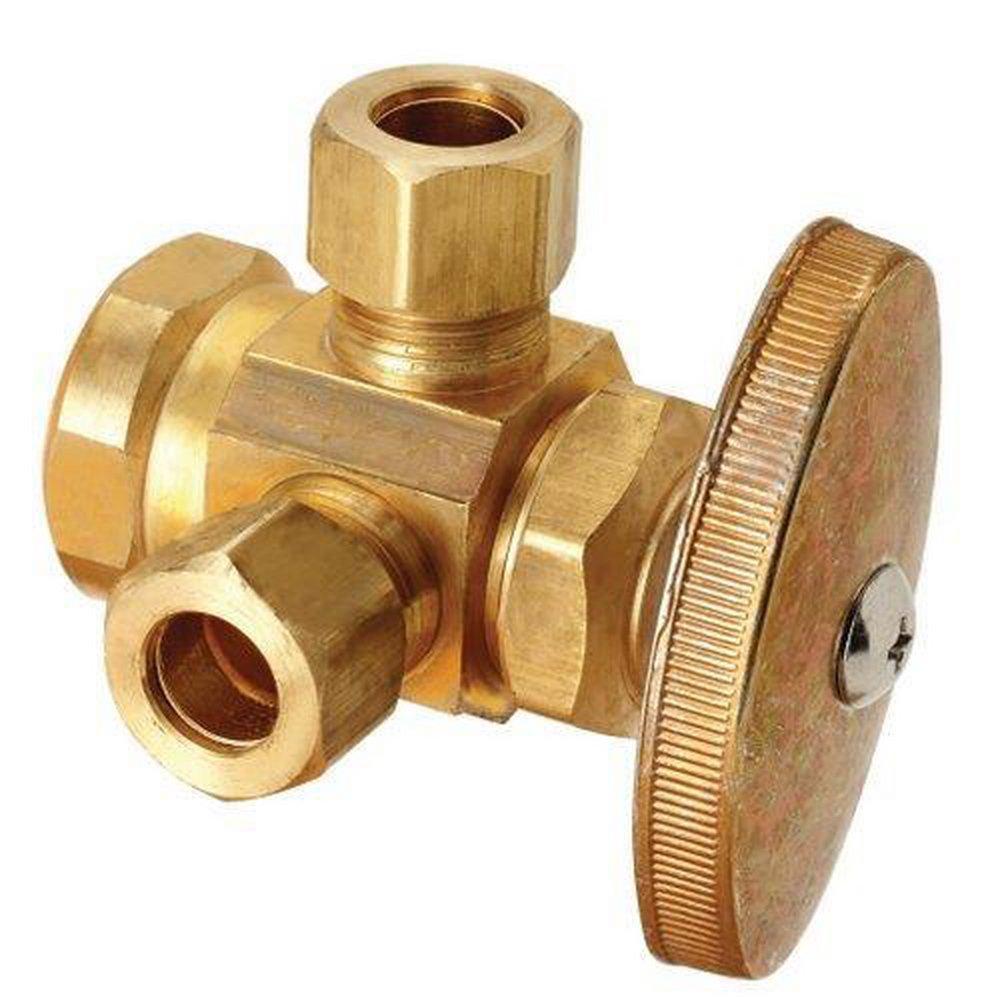

The BrassCraft R1701LRX R1 is a dual outlet angle supply stop valve designed for residential plumbing systems. It features a half-inch FIP inlet and two three-eighth inch OD compression outlets. This valve is ideal for applications requiring two independent water supply lines. It allows for control over water flow to appliances like dishwashers and water filters without the need to shut off the main supply.

• Dual outlet design for two supply connections
• Facilitates easy on/off control of water flow
• Compatible with potable water systems

Product Highlights

BrassCraft’s dual outlet valve provides strength and durability with a machined one-piece brass construction. The knurled handle ensures a secure grip for smooth operation. This valve is suitable for both hot and cold water systems.

Product Information

Standard Information

• Brand: BrassCraft
• MPN: R1701LRX R1

Technical Specifications

• Connection Type: FIP x OD Compression
• Inlet Size: 1/2 inch
• Outlet Size: 3/8 inch
• Overall Length: 2.49 inches
• Pressure Rating: 125 psi
• Temperature Rating: 40 to 140 degrees Fahrenheit
• Standards Compliance: IAPMO Certified to ASME A112.18.1-05/CSA B125.1-05
• Material: Lead-free rough brass
