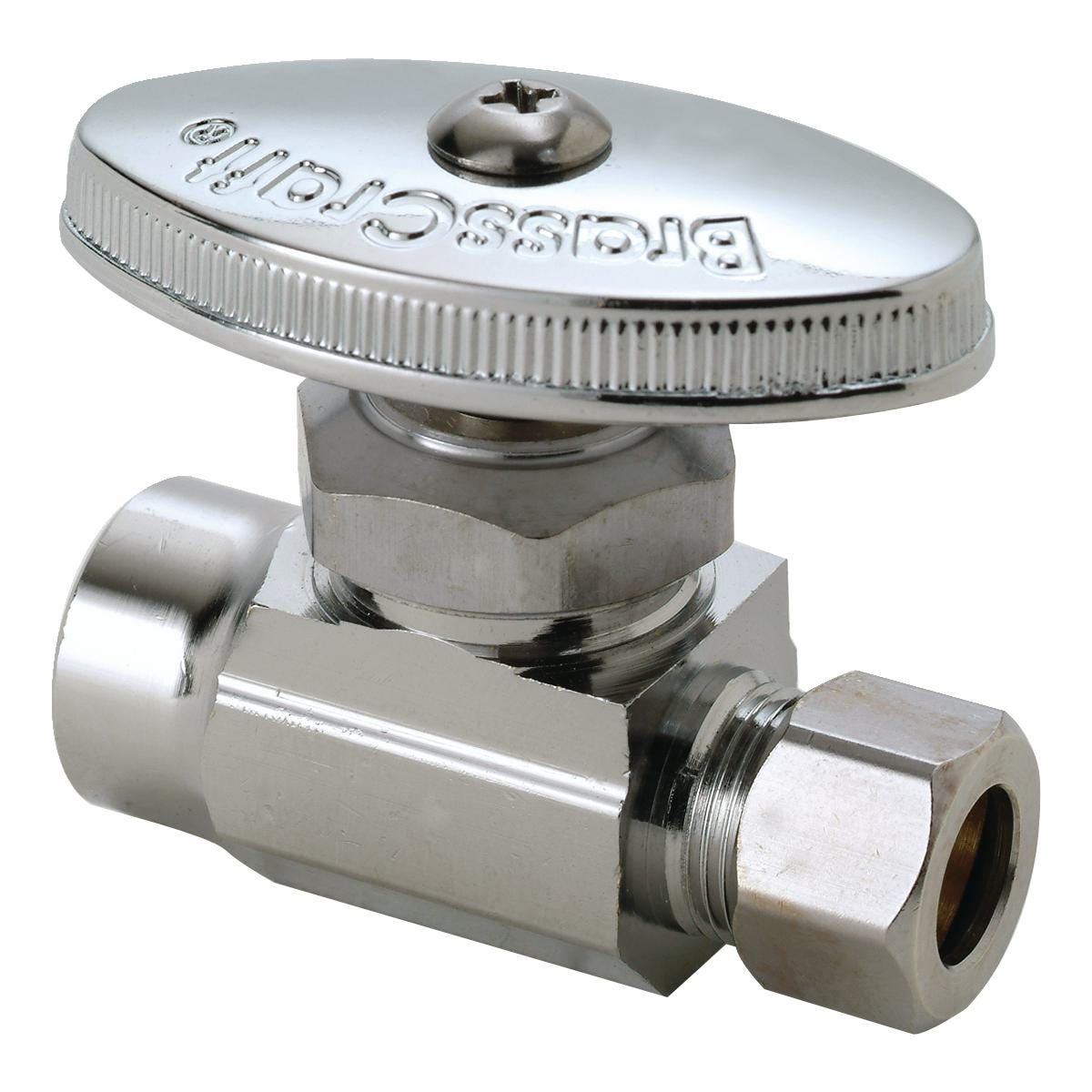

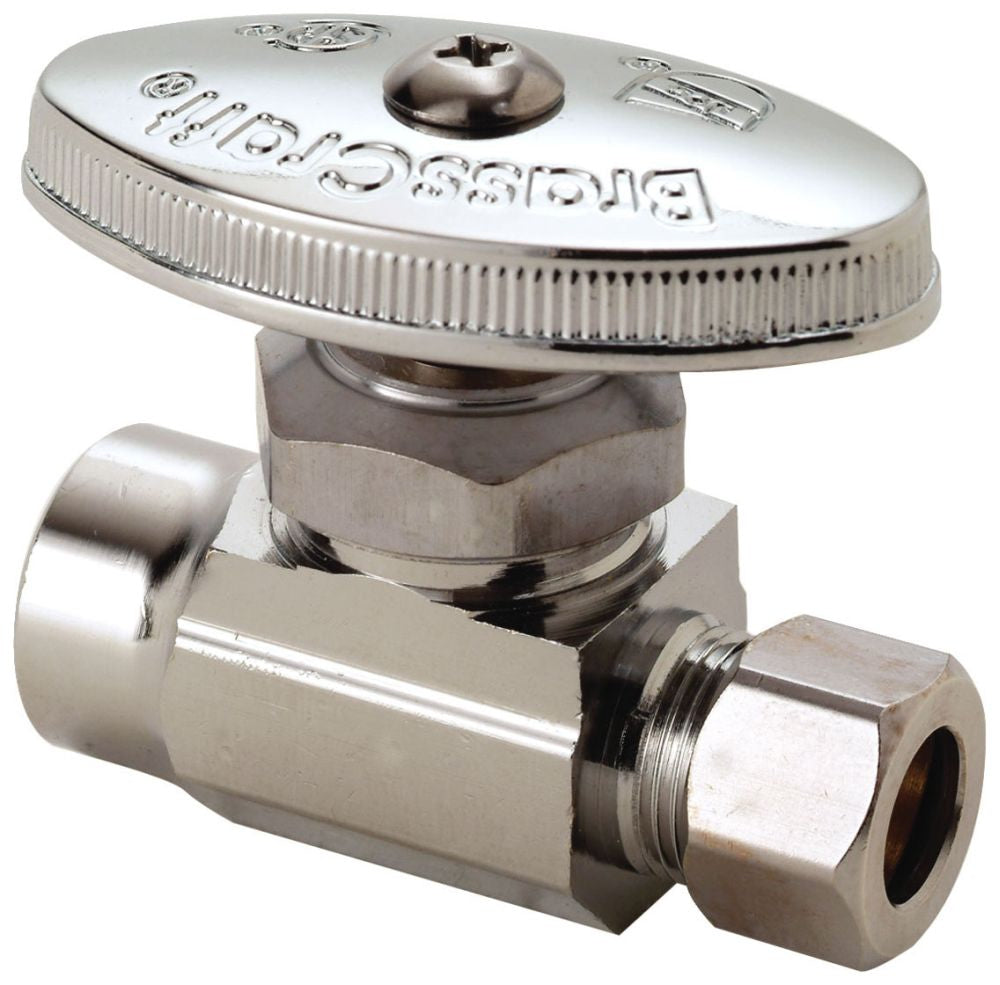

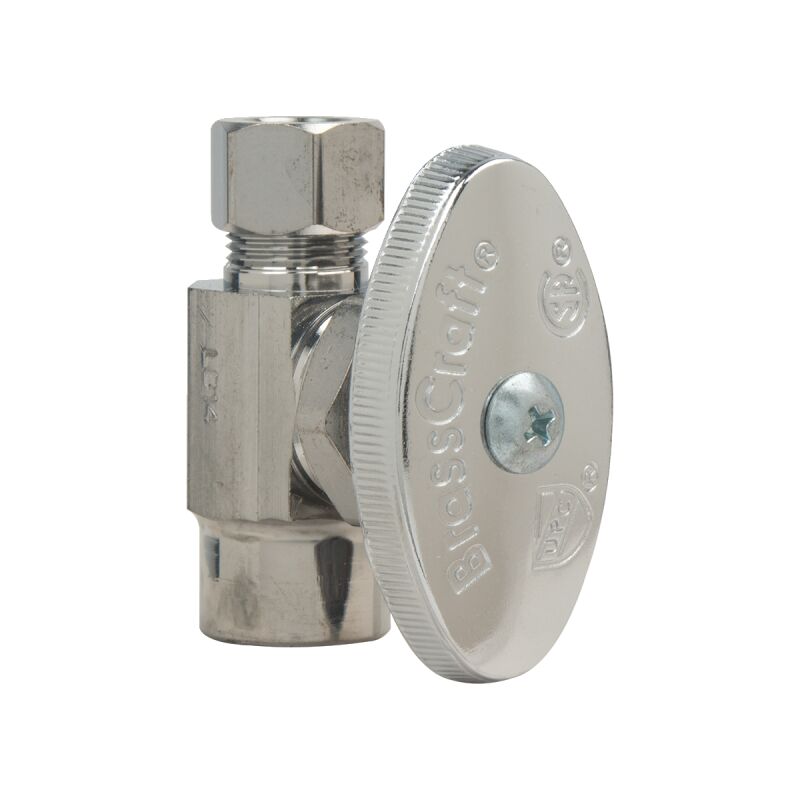

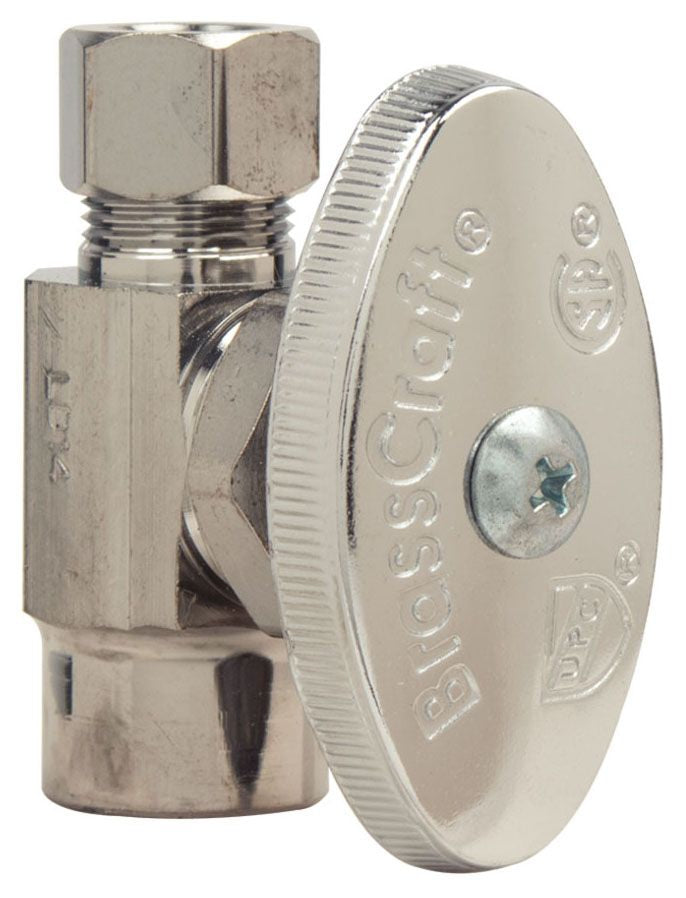

Brasscraft R14XC Sweat x Compression Straight Supply Stop 1/2 inches x 3/8 inches OD

Product Description

The Brasscraft R14XC is a sweat x compression straight supply stop with a 1/2" x 3/8" OD connection. This straight valve controls water flow to household plumbing fixtures such as faucets, toilets, dishwashers, icemakers, and washing machines. It allows for maintenance and repair without turning off water to the entire home.

• Machined, one-piece brass body construction for strength and durability
• Multi-turn operation for water flow control
• Easy-to-remove handle protects against accidental operation

Product Highlights

The Brasscraft R14XC is ideal for residential and commercial potable water distribution systems.

Product Information

Standard Information

• Brand: Brasscraft
• Manufacturer Part Number: R14XC
• Country of Origin: USA

Technical Specifications

• Color: Brass
• Material: Brass
• Exterior Finish: Chrome
• Inlet Connection Type: Compression
• Outlet Connection Size: 0.38 Inches
• Outlet Connection Type: Sweat
• Brand: BRASSCRAFT
• Actuation Type: Oval Knurled Handle, Multi-Turn
• Additional Information: Lead-Free
• Applicable Standard: ASME A112.18.1, IAPMO, CUPC, CSA B125.1
• Application: Residential, Commercial, Potable Water Distribution System
• Body Material: Chrome Plated Brass
• Pressure Rating: 125 PSI
• End Connection: Sweat x Compression
• Handle Material: Die-Cast Zinc Plated/ABS Plastic/Polycarbonate

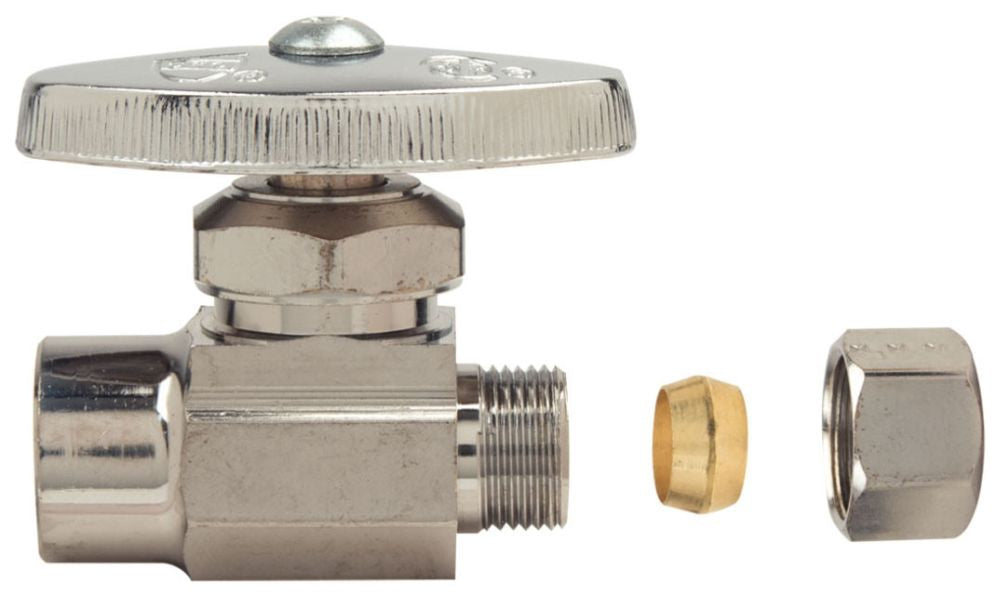

• Inclusions Features: Brass Stem, Rubber Bib and Packing Washer, Brass Packing Nut, Zinc Plated Steel Handle Screw, Brass Compression Sleeve, Brass Compression Nut
• Nominal Size: 1/2 Inch x 3/8 Inch
• Temperature Rating: 40 to 140 Deg F
• Type: Straight
• Manufacturer Name: BrassCraft
• Series: R14
• Finish: Chrome Plated
• Media: Water
• Connection Size: 1/2 x 3/8 in
• Working Pressure: 125 psi
• End Style: Sweat x Compression
• Handle Style: Multi-Turn
• Trim Material: Brass
• Softgoods Material: Rubber Bib, Packing Washer
• Temperature Range: 40 to 160 deg F
• End to End Distance: 2 INCH
