Product Description

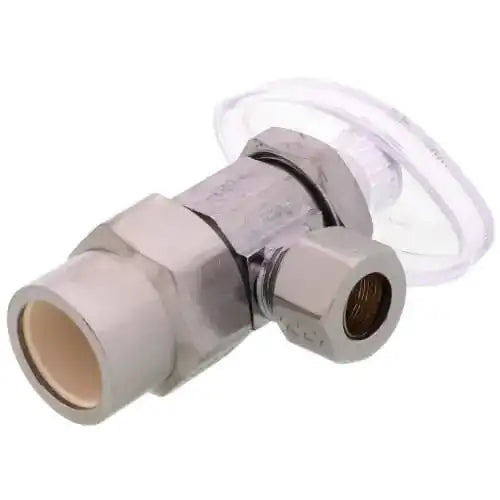

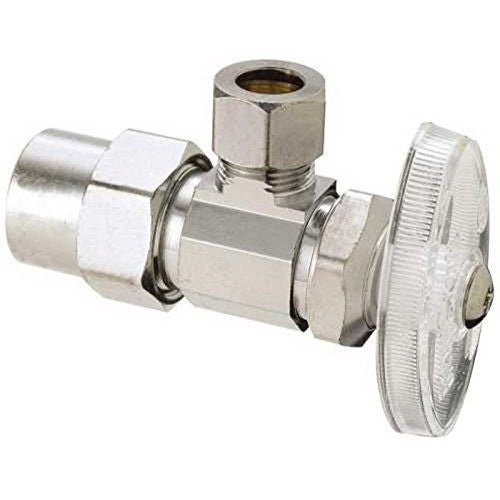

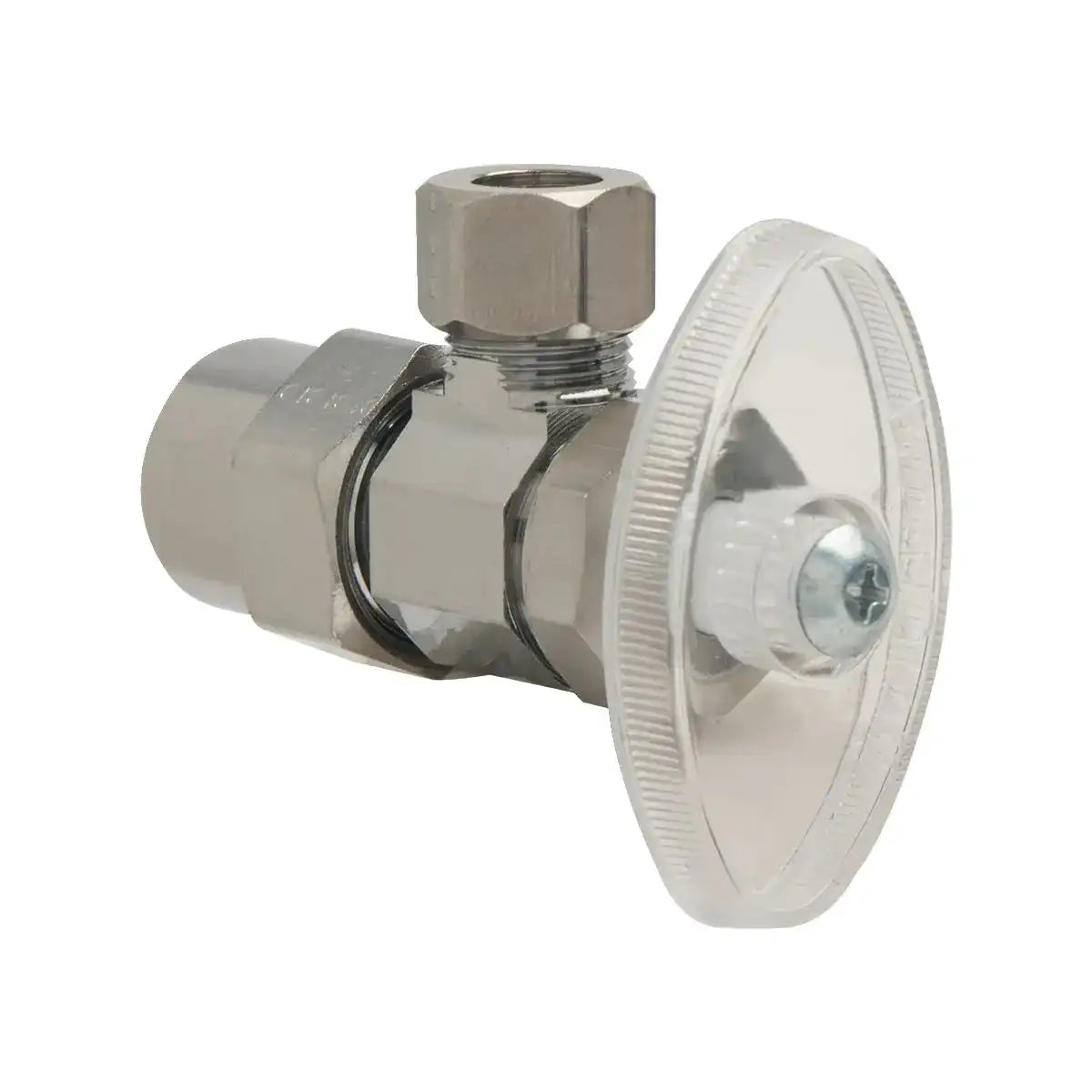

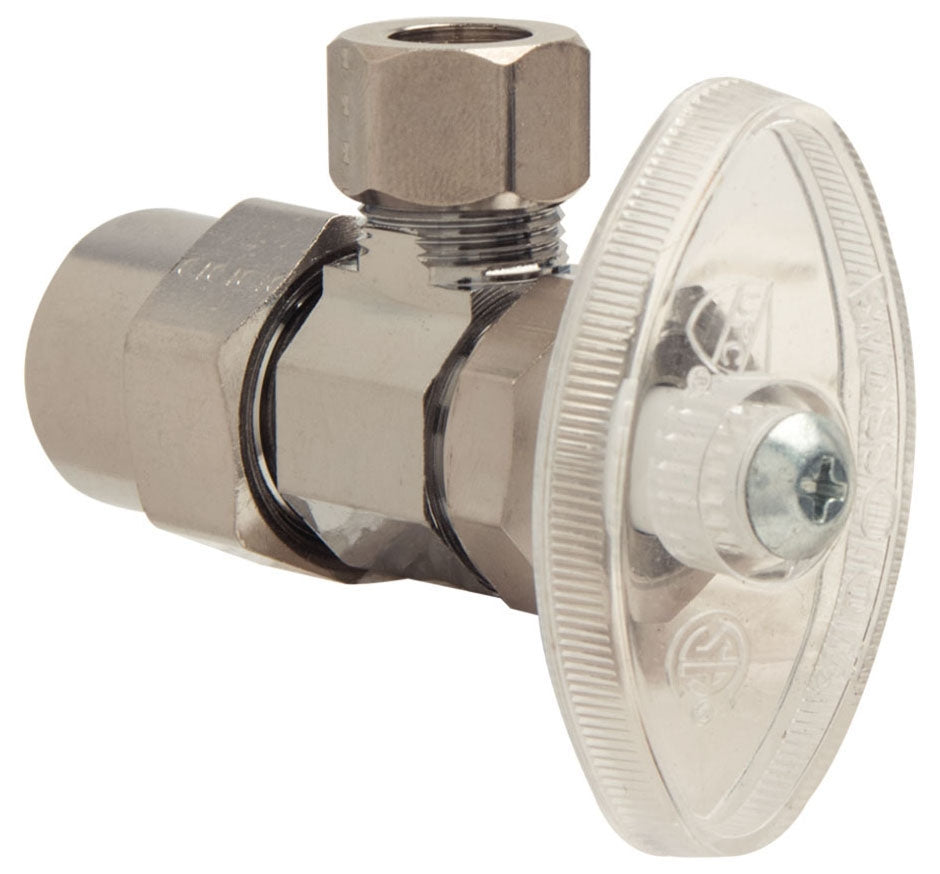

The Brasscraft PR19XC Multi-Turn Water Stop is an angle valve with a 1/2 inch nominal CPVC inlet and a 3/8 inch OD compression outlet. It controls water flow to household plumbing fixtures, allowing for maintenance and repair without turning off water to the entire home.
- Machined 1-Piece Brass Body Provides Strength, Durability and Long Lasting Performance
- Compatible with Copper
- Multi-Turn Operation Means Water Flow Control with Only a Few Turns of the Handle
Product Highlights
This angle valve is ideal for residential and commercial potable water distribution systems.
Product Information
Standard Information
-
Brand: Brasscraft
-
Manufacturer Part Number: PR19XC
-
Country of Origin: USA
Technical Specifications
-
Actuation Type: Multi-Turn, Oval Knurled Handle
-
Additional Information: Lead-Free
-
Applicable Standard: CSA (Canada and US), ASME A112.18.1/CSA B125.1, NSF/ANSI 61/372, IAPMO, CUPC;ASME A112.18.1/CSA B125.1, IAPMO, CUPC, NSF/ANSI 372, NSF 61, CSA (Canada and US)
-
Application: Residential, Commercial, Potable Water Distribution System
-
Body Material: Chrome Plated Brass;Machined Chrome Plated Brass
-
CATALOG NUMBER: PR19XC
-
End Connection: CPVC Solvent Welded x Compression;CPVC Solvent Weld x Compression
-
End To End Distance: 2.75 Inch
-
Handle Material: Chrome Plated Brass
-

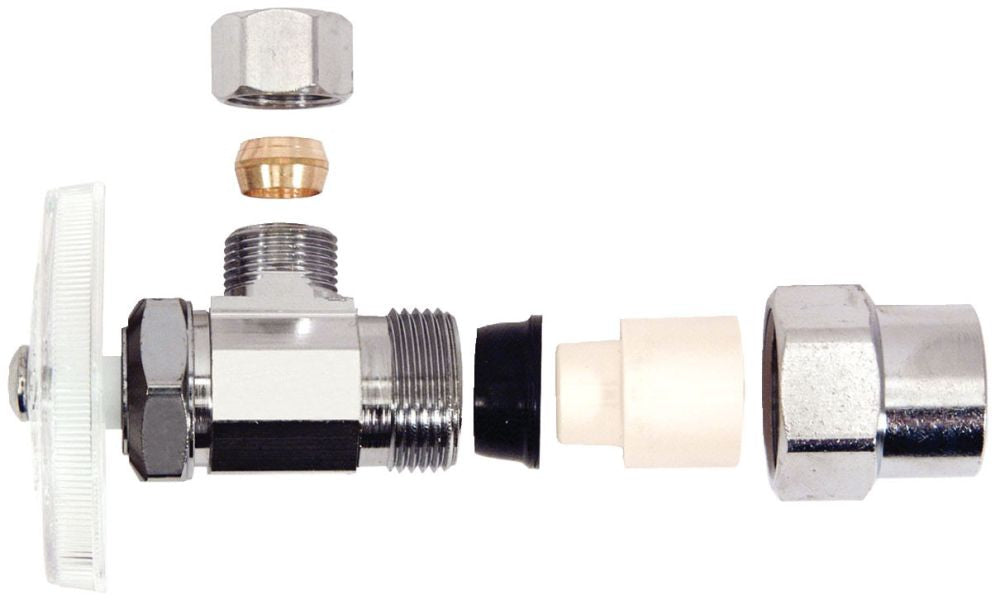

Inclusions Features: Rubber Bib/Packing Washer, Chrome Plated Brass/POM Stem, Chrome Plated Brass Compression Nut/Brass Compression Sleeve, CPVC Insert, Zinc Die-Cast Loose Key, Zinc Plated Steel Handle Screw
-
Manufacturer Name: BrassCraft
-
Manufacturer Part Number: PR19X-C
-
Marketing Text: BrassCraft 1/2 in. Nominal CPVC Inlet x 3/8 in. OD Compression Outlet Multi-Turn Angle Valve controls water flow to household plumbing fixtures - faucets, toilets, dishwashers, icemakers, washing machines, etc. The angle valve is most often used where the water pipe enters the room from the wall. With a few turns of the valve handle, you are able to stop the flow of water leading to the plumbing fixture, allowing for maintenance and repair without turning off water to the entire home.
-
Nominal Size: 1/2 Inch x 3/8 Inch
-
Pressure Rating: 125 PSI
-
Series/Model: PR19X
-
Temperature Rating: 40 to 140 Deg F
-
Type: 1-Piece, Angle
-
UNSPSC Code: 40141600
-
UPC: 026613136752
-
Color: Chrome
-
Model Number: PR19X C
-
Product Type: Stop Valve
-
Product Category: PLUMBING
-
Product GTIN/EAN: 0026613136752
-
Type of Material: Brass
-
Thread Size (in): 1/2 x 3/8 in
-
Temperature Rating (deg): 40 to 160 deg F
-
Item Type: Plumbing Valves
-
Manufacturer: BrassCraft Manufacturing
-
MPN: PR19XC
-
Sub Type: Angle Stop Valve
-
Temperature Range: 40 to 160 deg F
-
Connection Type: CPVC x Compression
-
Media: Water
-
Trim Material: Brass, POM
-
Angle: 1/4 Turn
-
Side A: 1/2"
-
Side B: 3/8"
-
Brand: Brasscraft
-
Model: PR19XC
-
Country of Origin: China
