Product Description

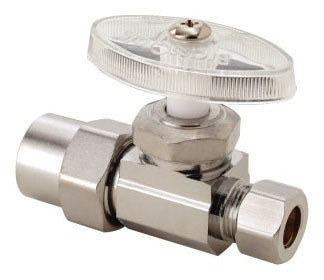

The BrassCraft PR14X-C is a lead-free straight stop valve designed for effective control of water flow. It features a nominal size of one half inch by three eighths inch, with an end connection of CPVC solvent weld to compression. This valve is suitable for residential and commercial use in potable water distribution systems. The multi-turn operation allows for a precise flow adjustment, and the oval-knurled handle provides a secure grip, making it user-friendly.
- Nominal Size: 1/2 inch x 3/8 inch
- Temperature Rating: 40 to 140 degrees Fahrenheit
- Pressure Rating: 125 PSI
Product Highlights
Complies with NSF standards for safety, ensuring a reliable and lead-free option for plumbing applications.
Product Information
Standard Information
-
Brand: BrassCraft
-
MPN: PR14X-C
Technical Specifications
-
Actuation Type: Multi-Turn, Oval-Knurled
-
End Connection: CPVC Solvent Weld x Compression
-
Body Material: Chrome Plated Brass
-
Handle Material: Lexan
-
Inclusions/Features: Zinc Plated Steel Handle Screw, Brass Packing Nut/Stem, EPDM Rubber CPVC Washer, C36000 Brass Compression Sleeve/Nut, CPVC 23447-B CPVC Insert
-
Application: Residential, Commercial, Potable Water Distribution System
-
Applicable Standard: ASME A112.18.1/CSA B125.1, NSF 372, IAPMO, CUPC, CSA (Canada and US)
