Brasscraft pls3-12af Faucet Connector 12 in 3/8 Comp X 1/2 Fip

Product Description

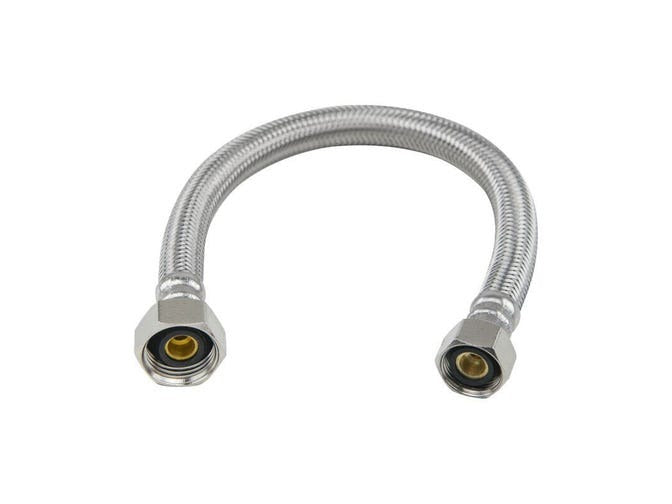

The BRASSCRAFT pls3-12af is a 12-inch flexible braided faucet supply connector designed for potable water systems in residential and light commercial plumbing applications. It features a 3/8-inch compression inlet and a 1/2-inch female iron pipe (FIP) outlet, making it a standard configuration for faucet and fixture supply connections. The inner core is constructed from reinforced PVC with a braided stainless steel exterior that provides corrosion resistance and added burst protection. Rated to 125 psi, this connector handles typical residential water supply pressure without issue. Licensed plumbers and experienced DIYers install this type of connector during faucet replacement, fixture upgrades, or supply line repairs.

This connector is suited for use under sinks, vanities, and lavatories where a flexible supply line is needed between the shut-off valve and the faucet body. The 3/8-inch compression x 1/2-inch FIP connection configuration is widely used on standard residential faucets and fits most common stop valve outlets. It is appropriate for cold or hot water supply lines in both new construction and retrofit installations.

Key Features

• 12-inch overall length provides flexible reach between shut-off valve and faucet inlet
• 3/8-inch compression x 1/2-inch FIP connection for standard faucet supply hookups
• Braided stainless steel exterior for corrosion resistance and mechanical protection
• Reinforced PVC inner core rated to 125 psi working pressure
• Flexible design simplifies routing in tight under-sink spaces

Compatibility

Designed as a standard replacement or new-installation supply connector for residential faucets and fixtures using a 3/8-inch compression stop valve outlet and a 1/2-inch FIP faucet inlet.

Installation Notes

Installation is typically performed by a licensed plumber or qualified tradesperson under IPC guidelines. Shut off the water supply at the stop valve and relieve line pressure before disconnecting or installing any supply connector. Hand-tighten the compression fitting first, then snug with a wrench — do not overtighten, as this can crack the ferrule or fitting body. Inspect both end connections for leaks after restoring water pressure.
