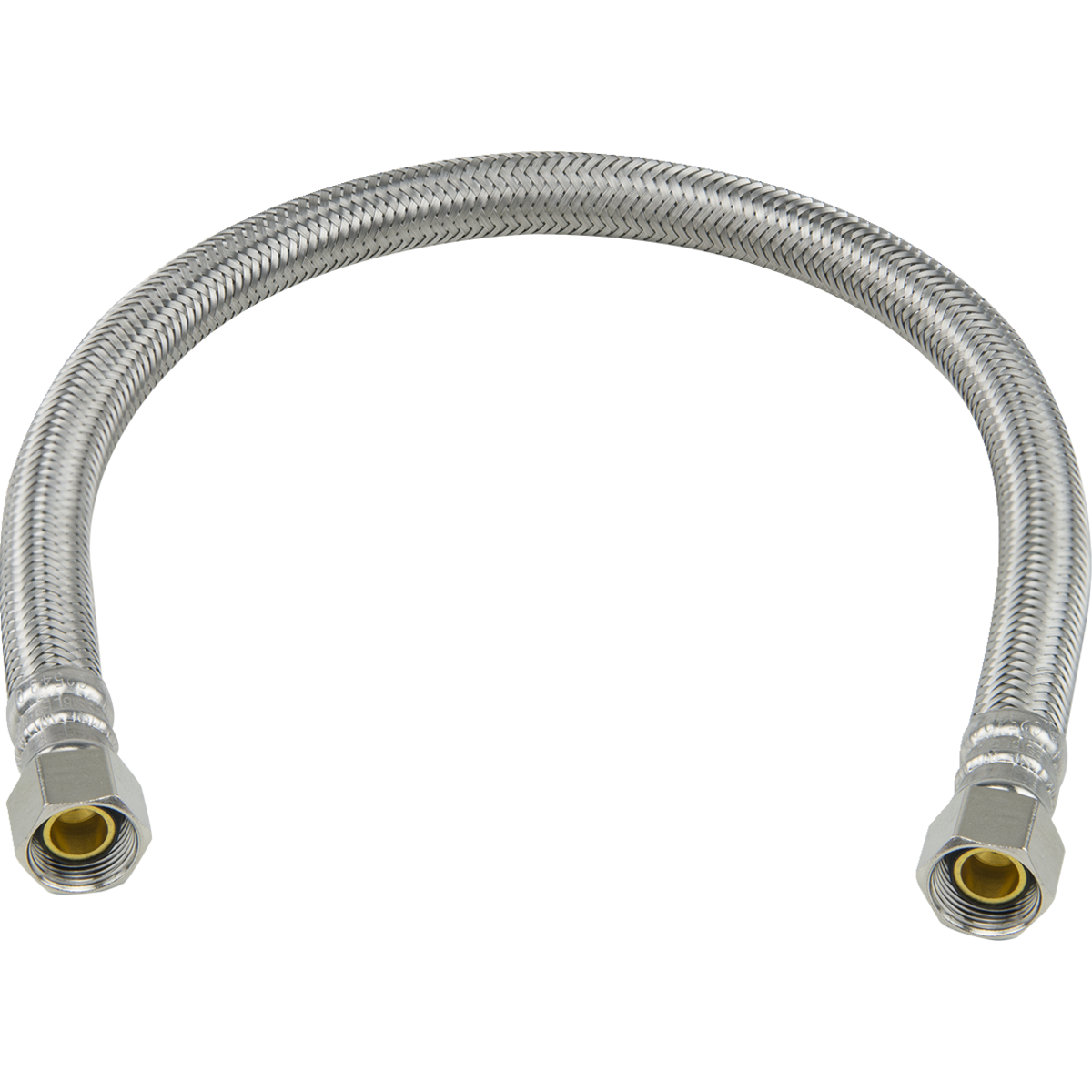

Brasscraft PLS116DWF Ss Dishwasher Connector 16 Inches

Product Description

The BRASSCRAFT PLS116DWF is a braided stainless steel dishwasher supply connector designed for residential dishwasher water supply connections. It features 3/8-inch compression fittings on both ends and measures 16 inches in length, making it a direct-fit solution for standard under-sink dishwasher hookups. The stainless steel braid provides burst resistance and corrosion protection over the inner supply hose. Plumbers and experienced installers use this connector to complete dishwasher rough-in work quickly and reliably without fabricating custom supply lines.

This connector is intended for residential dishwasher installations where the supply shutoff and appliance inlet both accept 3/8-inch compression connections. The 16-inch length suits typical cabinet configurations where the shutoff valve is located in the adjacent sink cabinet. It is a common replacement or new-installation part for standard built-in dishwasher setups.

Key Features

• 3/8-inch compression inlet and 3/8-inch compression outlet for tool-friendly, no-solder connections
• 16-inch hose length sized for standard under-sink dishwasher supply runs
• Braided stainless steel outer jacket resists corrosion and physical damage
• Designed as a direct replacement for dishwasher supply connectors in residential installations

Compatibility

Designed as an OEM-style replacement or new-installation dishwasher supply connector for residential dishwasher applications using 3/8-inch compression supply shutoffs.

Installation Notes

Installation is performed by a licensed plumber or qualified installer. Shut off the water supply at the main or branch shutoff before disconnecting any existing connector. Hand-tighten compression fittings first, then snug with a wrench — avoid overtightening, which can crack the compression seat. Verify there are no kinks in the hose after installation and check for leaks at both fittings before returning the dishwasher to service.

Technical Specifications

• Inlet Connection: 3/8 inches Compression
• Outlet Connection: 3/8 inches Compression
• Hose Length: 16 inches
• Hose Material: Braided Stainless Steel
• Application: Dishwasher Water Supply
• UPC: 039166127078

Standard Information

• Brand: BRASSCRAFT
• Manufacturer Part Number: PLS116DWF
