Brasscraft PLS116AF 3/8 x 16 inches STAINLESS LAV SUPPLY

Product Description

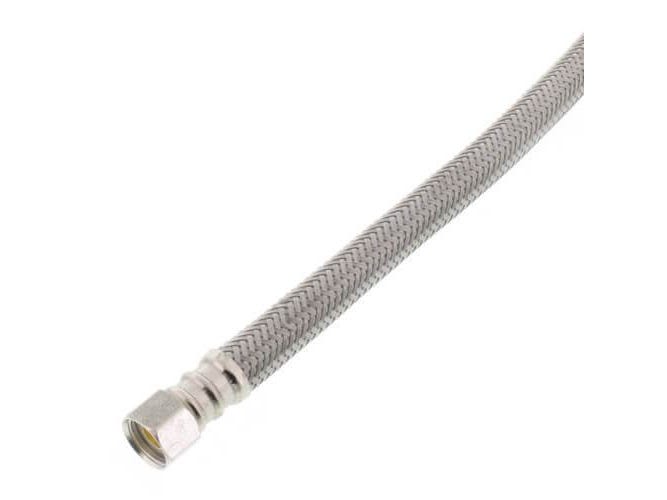

The BrassCraft PLS116AF Flexible Water Supply Connector is a stainless steel braided connector engineered for professional-grade plumbing applications. Designed for reliability and ease of installation, this connector features a 3/8-inch compression inlet and a 1/2-inch FIP outlet, providing a secure, corrosion-resistant connection. Rated for 125 psi working pressure.

• Stainless steel braided connector
• Engineered for professional-grade plumbing applications
• 3/8-inch compression inlet
• 1/2-inch FIP outlet

Product Highlights

This 16-inch stainless steel braided connector with 3/8-inch compression and 1/2-inch FIP ends is rated for 125 psi and 40°F–140°F operation.

Product Information

Standard Information

• Brand: Brasscraft
• Manufacturer Part Number: PLS116AF

Technical Specifications

• Manufacturer: Brasscraft Manufacturing
• Manufacturer #: PLS1-16A F
• Parts Town #: BSCTPLS1-16A-F
• Units: Each
• Brand: BRASSCRAFT
• MPN: PLS1-16AF
• Material: Braided Stainless Steel

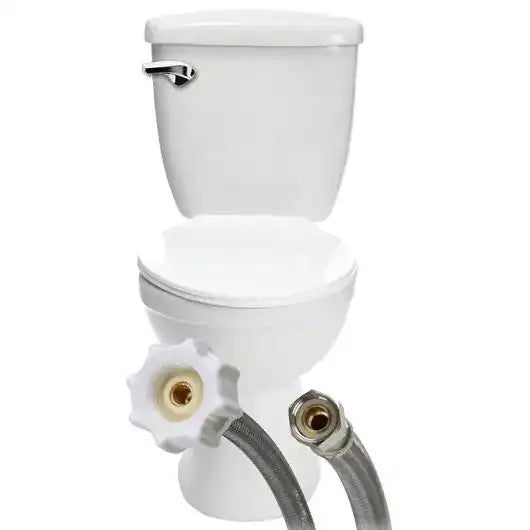

• Application: Toilet
• Overall Length: 16 in (406 mm)
• Inlet Connection: 3/8 in Compression
• Outlet Connection: 1/2 in Female Iron Pipe (FIP)
• Nominal Inside Diameter: 0.30 in (7.6 mm)
• Working Pressure: 125 psi (maximum)
• Temperature Range: 40 0 F to 140 0 F (4 0 C to 60 0 C)
• Material Composition: Inner Tube: Reinforced polymer
• Connection Type: Threaded and compression fitting ends
• Seal Type: Integrated gasket and ferrule system
• Service Environment: Suitable for indoor installations within temperature and pressure limits
• Condition: New
• UPC: Does Not Apply
