Brasscraft PLS1-20DWF Ss Dishwasher Connector 3/8 Comp 20in

Product Description

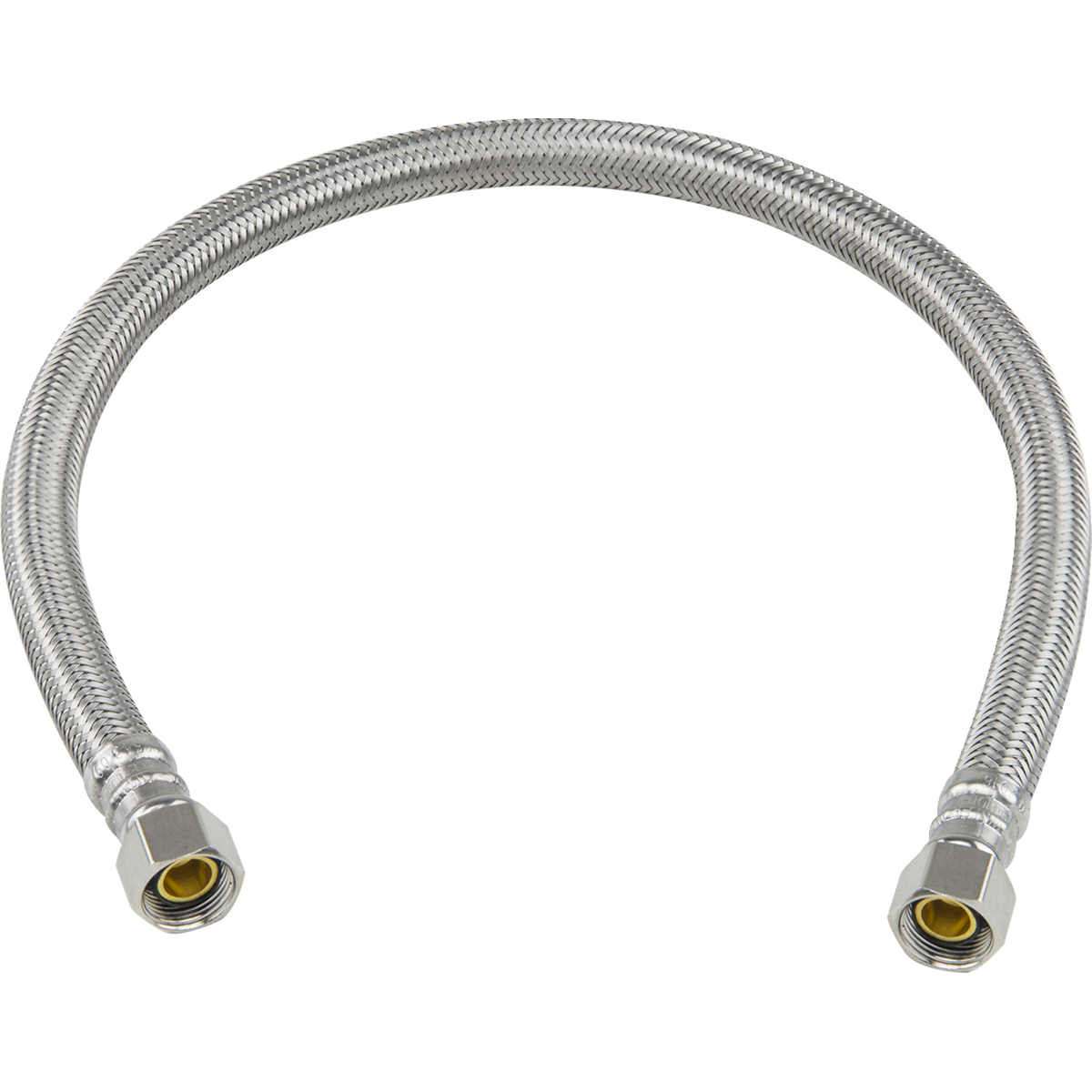

The BRASSCRAFT PLS1-20DWF is a braided stainless steel dishwasher supply connector designed for residential and light commercial plumbing installations. Featuring 3/8-inch compression fittings on both ends and a 20-inch overall length, this hose connects a dishwasher to the hot water supply line. The stainless steel braid jacket provides added burst resistance and protects the inner hose from kinking and abrasion. Plumbers and experienced DIYers install this connector as part of a standard dishwasher hookup or appliance replacement.

This connector is suited for dishwasher supply line applications where 3/8-inch compression connections are required on both the supply valve and appliance inlet. The 20-inch length accommodates typical under-sink cabinet depths and standard dishwasher rough-in configurations. It is appropriate for residential kitchen installations and light commercial settings where dishwashers are connected to existing 3/8-inch shutoff valves.

Key Features

• Braided stainless steel jacket for kink and abrasion resistance
• 3/8-inch compression x 3/8-inch compression end fittings
• 20-inch overall hose length for standard dishwasher installations
• Designed specifically for dishwasher supply line connections

Compatibility

Designed as an OEM-style replacement dishwasher supply connector for installations requiring 3/8-inch compression inlet and outlet connections with a 20-inch hose length.

Installation Notes

Installation is typically performed by a licensed plumber or qualified DIYer. Shut off the water supply at the hot water shutoff valve before disconnecting or connecting any supply line. Hand-tighten compression fittings first, then snug with a wrench — do not overtighten, as compression fittings can crack if over-stressed. Verify there are no kinks in the hose after installation and check for leaks at both connections before restoring water service.

Technical Specifications

• Inlet Connection: 3/8 inches Compression
• Outlet Connection: 3/8 inches Compression
• Hose Length: 20 inches
• Hose Material: Braided Stainless Steel
• UPC: 039166127122

Standard Information

• Brand: BRASSCRAFT
• Manufacturer Part Number: PLS1-20DWF
