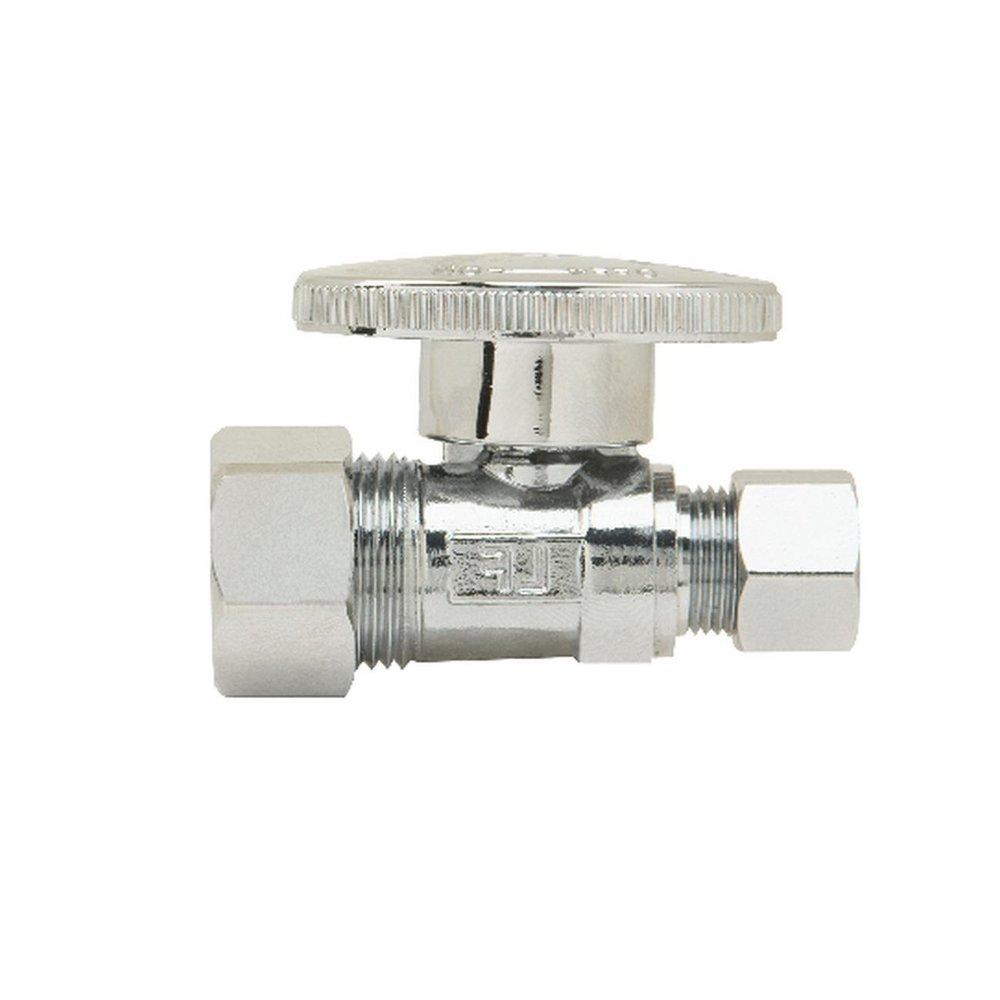

BrassCraft PLB207XP PlumbShop 1/2 x 3/8 in. Barbed x OD Compression Straight Supply Stop

Product Description

The BrassCraft PlumbShop PLB207XP is a supply stop valve that connects 1/2 inch nominal cold expansion PEX tubing to 3/8 inch OD compression pipe. This valve is designed for controlling water flow in residential and commercial plumbing systems.

• Forged brass construction for durability
• Chrome plated for resistance to corrosion
• Easy operation with a positive 1/4 turn ball stop

Product Highlights

This supply stop valve allows quick shut-off of water to fixtures, enabling maintenance without affecting the entire plumbing system.

Product Information

Standard Information

• Brand: BrassCraft
• MPN: PLB207XP

Technical Specifications

• Body Material: Brass
• End Style: Cold Expansion PEX Barb x OD Compression
• Pressure Rating: 125 psi
• Temperature Rating: 40 to 140 degrees Fahrenheit
• Nominal Size: 1/2 x 3/8 inches
• Dimensions: 2.31 in L x 1.51 in H
• Warranty: 1 Year
• Mfg Standards/Approvals: ASME A112.18.1|CSA B125.1|IAPMO Listed|NSF/ANSI 372|NSF61|UPC Listed
