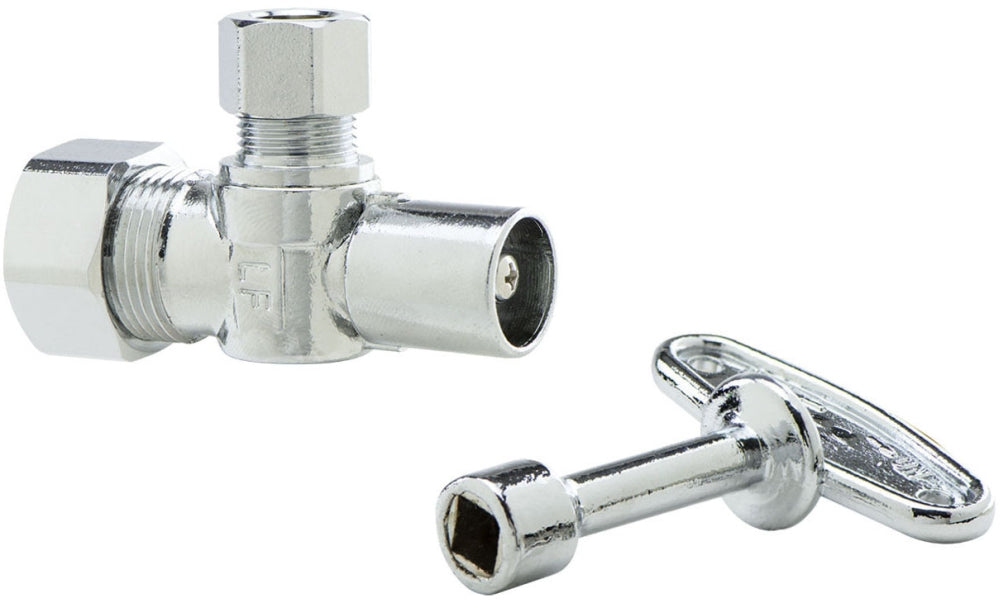

BrassCraft PLB113X-P 1/2 inch x 3/8 inch Compression with Loose Key 1/4-Turn Angle Stop Valve

Product Description

The BrassCraft PLB113X-P is a 1/2 inch by 3/8 inch compression angle stop valve. This valve is designed for effective water control in plumbing systems. It features a quarter-turn handle for easy operation. The valve's body is made from durable brass, ensuring reliable performance in potable water distribution systems.

• 1/4 turn ball stop for quick shut-off
• Compatible with copper piping
• Meets standards for safe drinking water systems

Product Highlights

This valve is ideal for both residential and commercial plumbing applications.

Product Information

Standard Information

• Brand: BrassCraft
• MPN: PLB113X-P

Technical Specifications

• Item Name: Angle Stop Valve
• Nominal Size: 1/2 inch x 3/8 inch
• Connection Type: Compression x Compression
• Operating Pressure: 125 psi maximum
• Body Material: Brass
• Seat Material: PTFE
• Temperature Rating: 40 - 160 Deg F
• Finish: Chrome Plated
• Dimensions: 1.63 inch diameter x 2.44 inch height
• Standards/Approvals: cUPC, IAPMO Listed, ASME A112.18.1, CSA B125.1, NSF/ANSI 61 and 372
