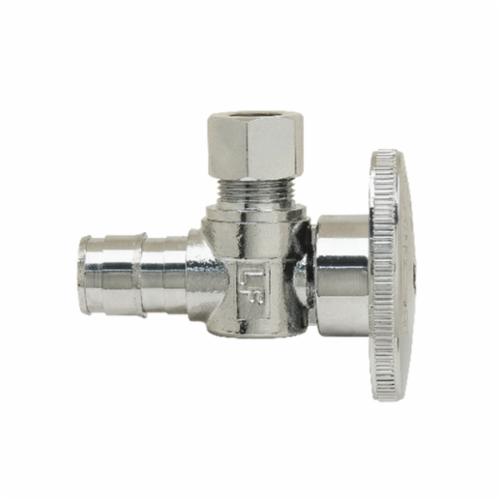

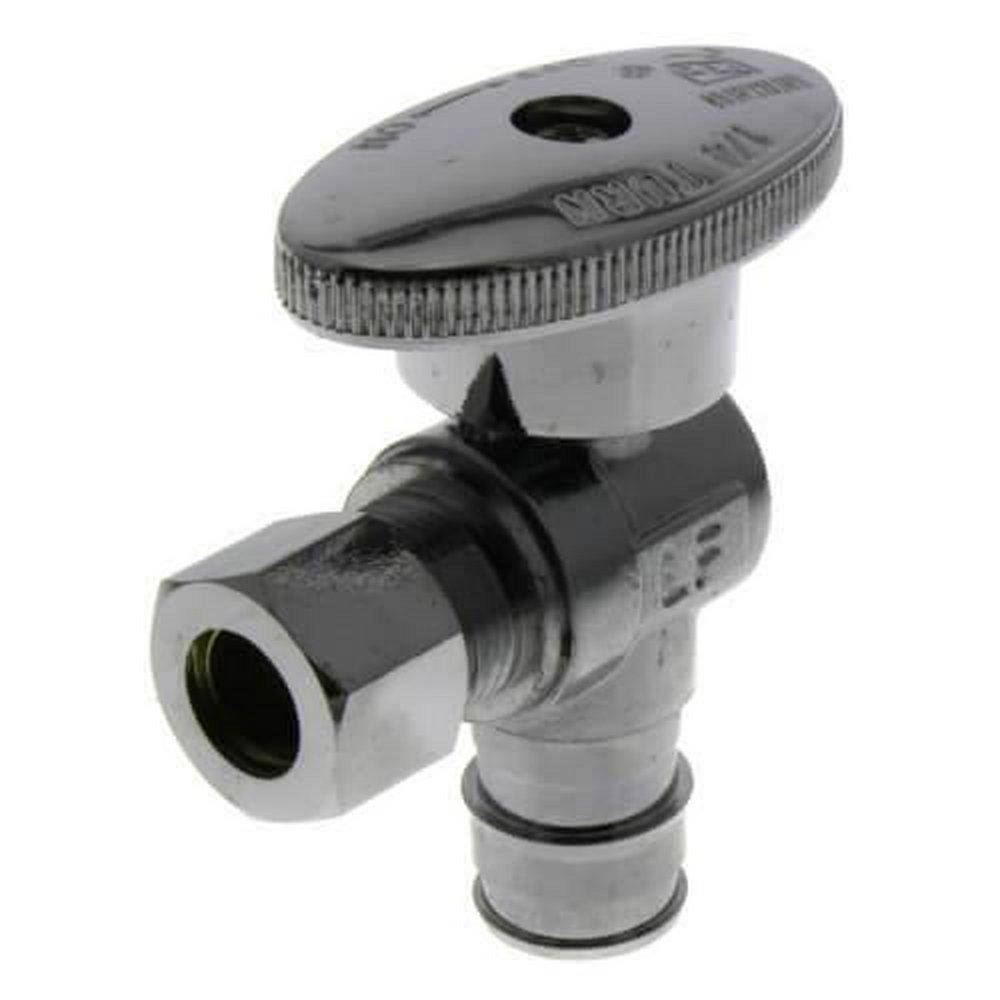

BrassCraft PLB107XP PlumbShop 1/2 x 3/8 in. Barbed x OD Compression Angle Supply Stop Valve

Product Description

BrassCraft PLB107XP is a reliable supply stop valve, made for plumbing applications. This valve features a connection type of 1/2 inch nominal cold expansion barb to 3/8 inch OD compression. It is designed for controlling water flow to appliances like faucets and toilets.

• Forged brass body for durability
• Compatible with cold expansion PEX tubing
• Quarter-turn handle for easy operation

Product Highlights

This angle stop valve is essential for residential and commercial plumbing, known for its straightforward installation and reliable service performance.

Product Information

Standard Information

• Brand: BrassCraft
• MPN: PLB107XP

Technical Specifications

• Nominal Size: 1/2 x 3/8 inch
• Connection Type: Cold Expansion PEX Barb x OD Compression
• Body Material: Brass
• Finish: Chrome Plated
• Operating Pressure: 125 psi max
• Temperature Rating: 40 to 140 degrees F
• Overall Dimensions: 2.02 inch W x 2.41 inch H
• Warranty: 1 Year
• Standards/Approvals: cUPC, IAPMO Listed, NSF/ANSI 61 and 372
