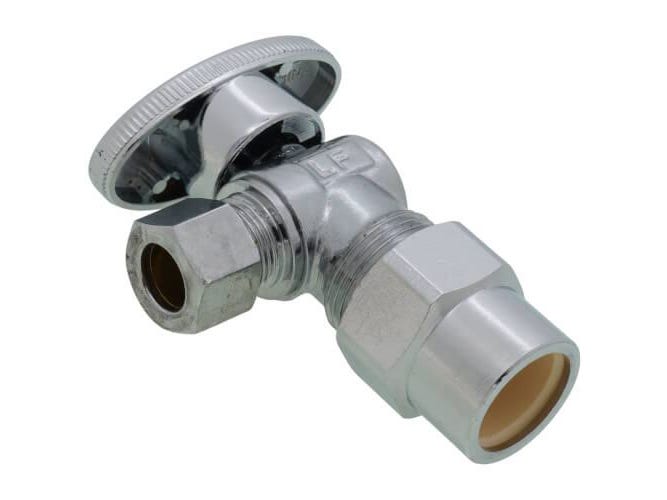

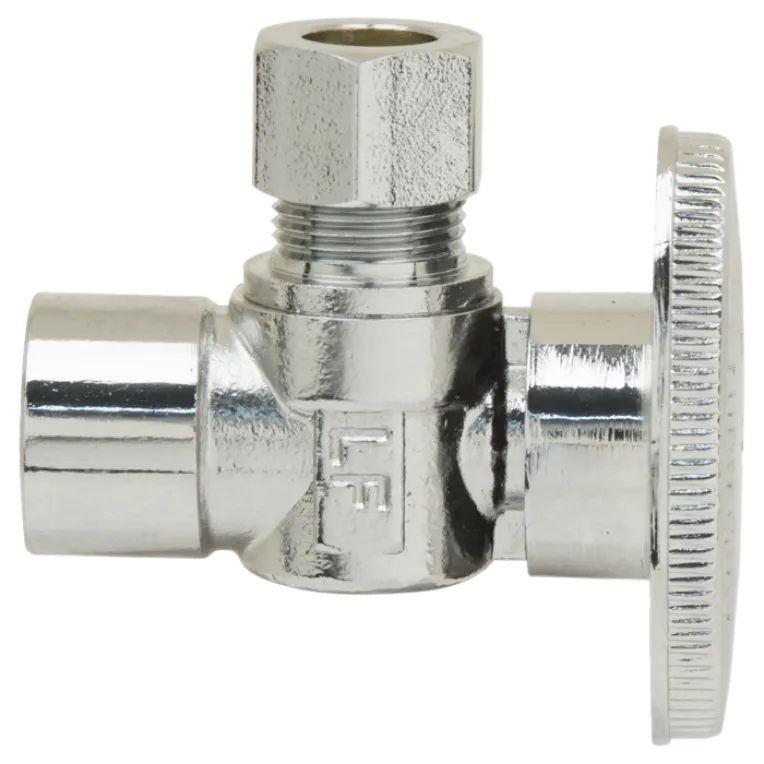

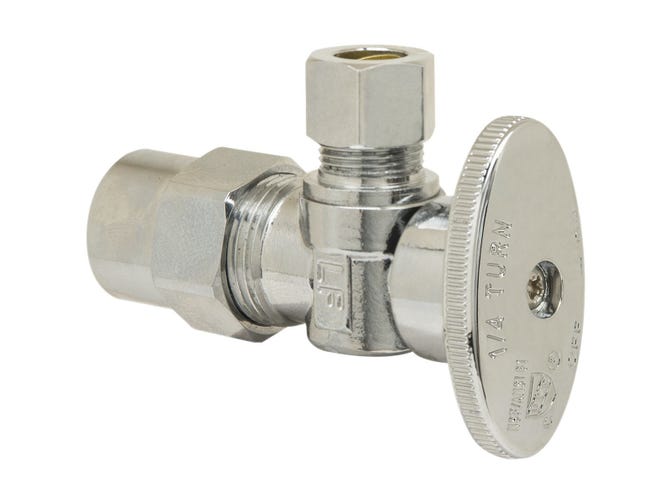

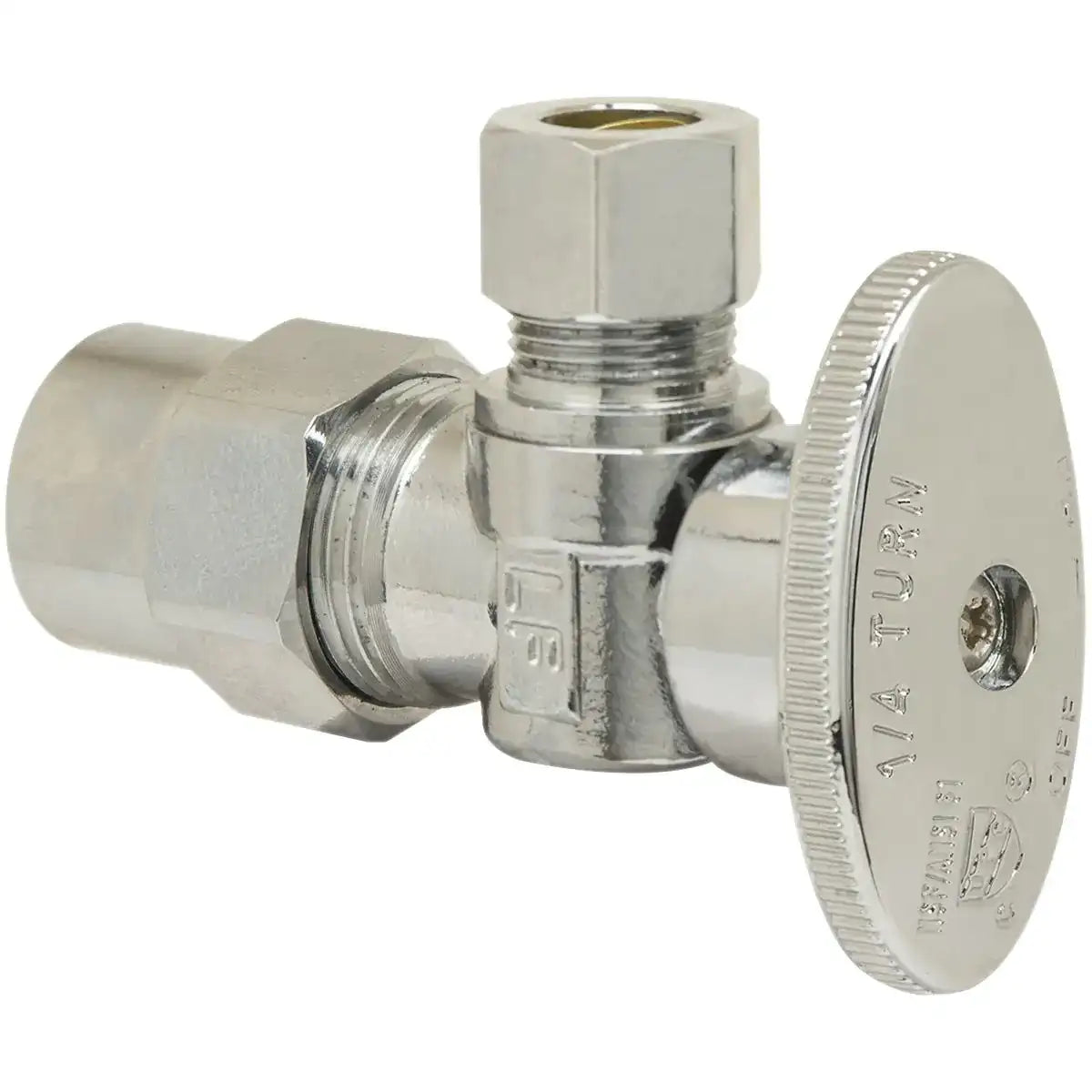

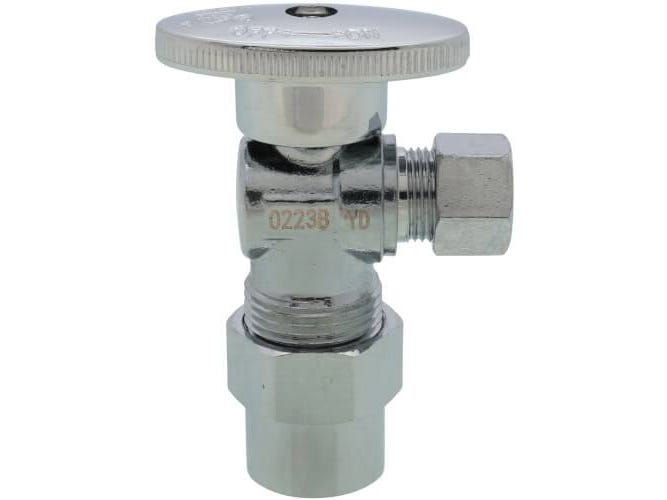

Brasscraft PLB105XP Stop Valve 1/2 inchesx3/8 inches CPVC x Comp 1/4 Turn Angle

Product Description

The Brasscraft PLB105XP stop valve controls water flow to household plumbing fixtures, such as faucets, toilets, dishwashers, icemakers, and washing machines. The angle valve is used where the water pipe enters the room from the wall. With a 1/4-turn handle, you can stop water flow for maintenance without shutting off the entire home.

• Temperature rating: 40 degrees F to 160 degrees F
• Pressure rating: 125 PSI maximum
• Forged brass body

Product Highlights

This stop valve features a forged brass body, a 1/4-turn handle, and is compatible with PEX tubing. It is suitable for use in potable water distribution systems.

Product Information

Standard Information

• Brand: Brasscraft
• Manufacturer Part Number: PLB105XP
• Country of Origin: China

Technical Specifications

• Finish: Chrome
• Connection End: CPVC x Comp
• Max Pressure (PSI): 125 Psi
• Temperature Range (F): 40 degrees F to 160 degrees F
• Shape: 90 Elbow
• Type: Angle Valve
• Number in Pack: 1
• MPN: PLB105XP
• Brand: Plumb Shop
• Country of Origin: China
• Item Type: Plumbing Valves
• Manufacturer: BrassCraft Manufacturing
• Sub Type: Angle Stop Valve
• Body Material: Brass
• Connection Type: CPVC x Compression
• Media: Water
• Angle: 1/4 Turn
• Side A: 1/2"
• Side B: 3/8"
