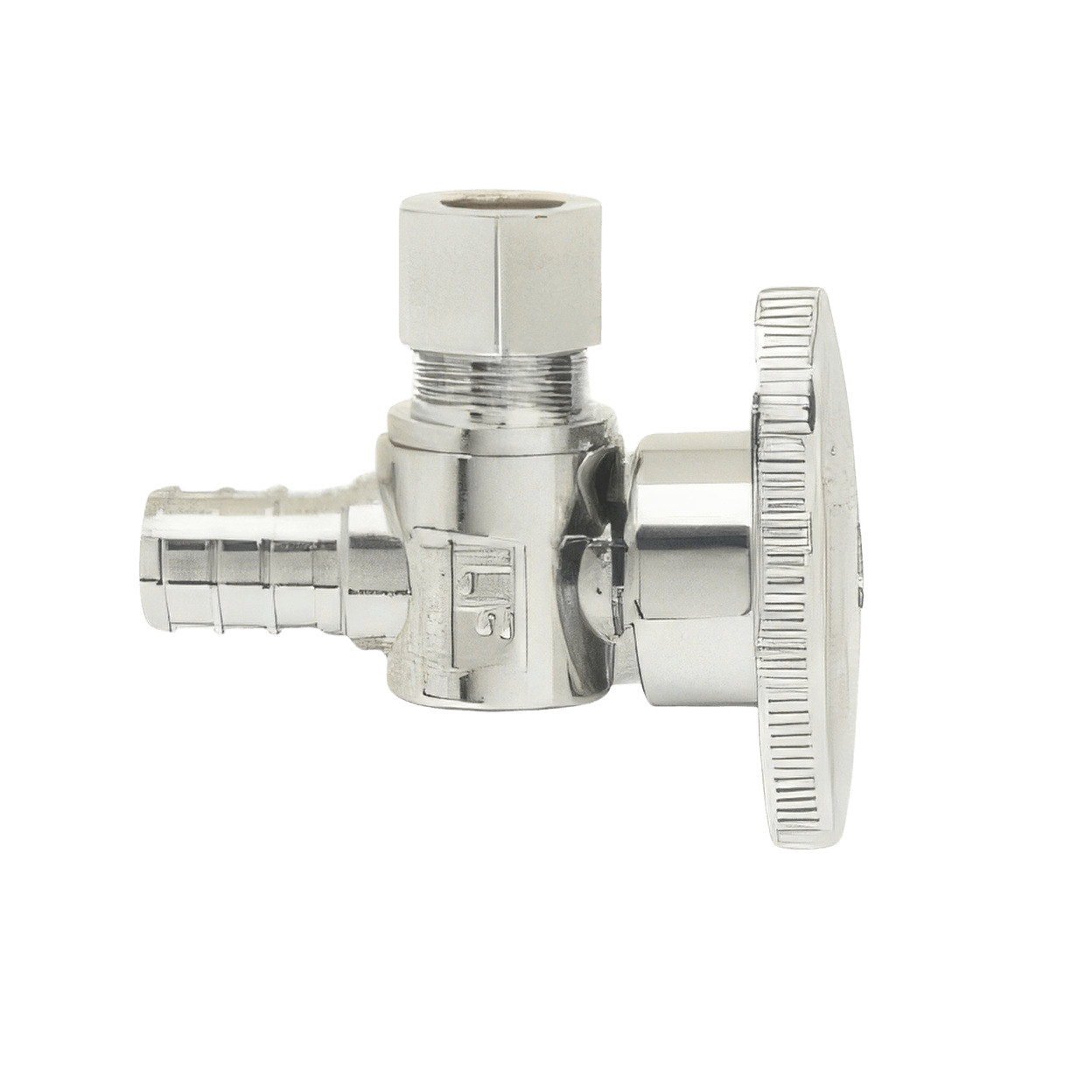

BrassCraft PLB104X-P 1/2 Inch x 3/8 Inch Crimp PEX Barb x Compression Brass Angle Stop Valve

Product Description

BrassCraft presents the PLB104X-P, a versatile angle stop valve designed for reliable water flow control in plumbing systems. This model features a crimp PEX barb x compression connection and is suitable for use in water distribution systems. With a maximum operating pressure of one hundred twenty-five psi, this valve supports various common household fixtures such as faucets, toilets, and washing machines.

• Temperature rating ranges from forty to one hundred forty degrees Fahrenheit.
• Constructed from a durable brass body for longevity.
• Designed for easy installation with a quarter-turn handle for convenient operation.

Product Highlights

The PLB104X-P model is an ideal solution for both residential and commercial applications due to its robust design and reliability. It meets multiple certifications and standards for safety and quality.

Product Information

Standard Information

• Connection Type: Crimp PEX Barb x Compression
• Media: Water

Technical Specifications

• Nominal Size: 1/2 inch x 3/8 inch
• Operating Pressure: 125 psi max
• Body Material: Brass
• Seat Material: PTFE
• Temperature Rating: 40 - 140 Deg F
• Finish: Chrome Plated
• Dimensions: 2.02 inch W x 0.94 inch D x 2.23 inch H
• Standards/Approvals: cUPC, IAPMO Listed, ASME A112.18.1, CSA B125.1, NSF/ANSI 61 and 372
